Swift Gauge Fuel Quantity Indicator

From $58.85 to $129.75
Prices below incude GST
Description Size Part No. Price Buy
SWIFT GAUGE
SINGLE GAUGE 5V INPUT
2-1/4"
10-02264
$64.74
Quantity
SWIFT GAUGE
DUAL GAUGE 5V INPUT
2 1/4"
10-02265
$142.73
Quantity
SWIFT GAUGE
SINGLE GAUGE 5V INPUT
2" ROUND
10-03873
$71.33
Quantity
SWIFT GAUGE
DUAL GAUGE 5V INPUT
2" ROUND
10-03874
$128.43
Quantity
SWIFT GAUGE
SINGLE GAUGE 185ohm INPUT
2" ROUND
10-02266
$76.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

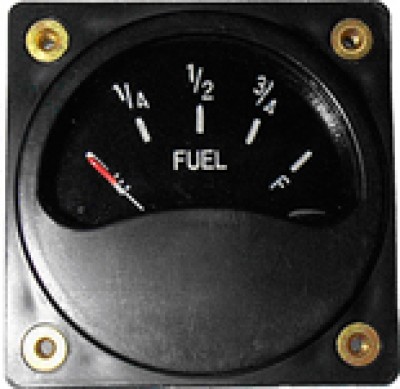

2-1/4"
P/N 10-02264
2-1/4"
P/N 10-02265
2" Round
P/N 10-03873

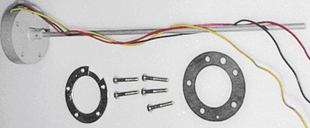

12" Capacity Type Sender
P/N 10-03419

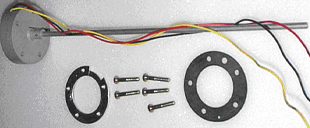

24" Capacity Type Sender
P/N 10-03421

Swift Gauge Fuel Quantity sender is an electronic capacitance type. This sender is bendable and highly accurate with steady linear reading characteristics. The 5V output senders can also be used with other brand 5V input gauges and EFIS systems. The 5V input gauges are available in single and dual range, with or without low level warning lights. The analog gauges with warning lights require the use of Swift Gauge compatible senders, while the electronic type only require regular senders.

Made in China

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

This sender does not work with MGL iEFIS so I had to return. I read voltages from 3.6v to 5.2v. The 24 sender potentiometers have 10+ turns which is not covered in the instructions. Im giving 3 star rating because I cant verify if they dont work all together or if they dont work with my EFIS. The jury is still out.

Lucas
January 11, 2018

I picked a mid-range number, because it is too early to tell. I ordered two Swift fuel senders. One was sent immediately, and one was back-ordered. The first one arrived and I bent it per instructions. Then I noticed the rivet that holds the tube to the hockey puck shaped head had not been fully inserted and did not properly connect the tube to the head. I sent this one back for repair a few days ago. I have not yet received the second one, although it has been shipped. I am not mad at Aircraft Spruce or Swift. Things happen. The main point is how they are handled. Cheers! Stu.

Stuart C
September 11, 2017

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the 24 falcon sender (10-03421) be cut to a shorter length?

Yes, this can be cut down to 12 inch length minimum.

Q: Is this Swift gauge TSO approved?

No, this gauge is intended for use in experimental aircraft only.

Q: Can the 12 inch sender be cut down? I need it to be 10 long.

Yes, it can be cut down to a minimum of 6 inches.

Q: How long is the bendable area?

The bendable area of the gauge, # 10-03419, is 3 inches.

Q: Where is the bendable area?

Bend area 5"
