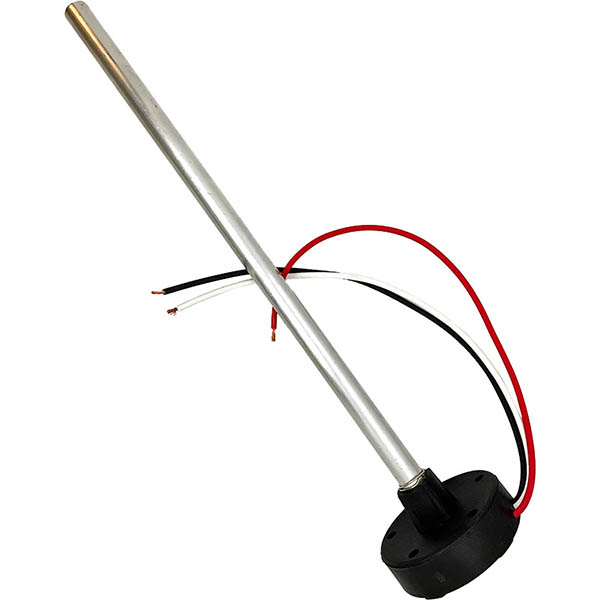

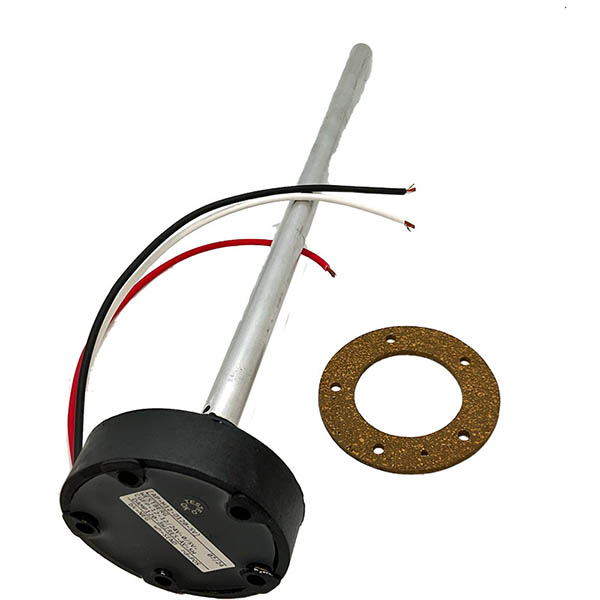

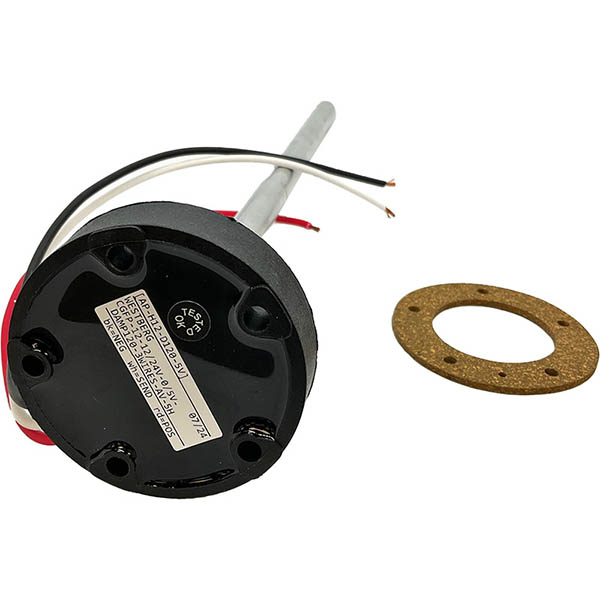

Capacitance fuel level sender 12", non-bendable, 1/2" OD, 12/24 vdc input, 0-5 vdc output
The nominal supply range is 11-28vdc. The current is less that 30 milliamps (.03 amps). |
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

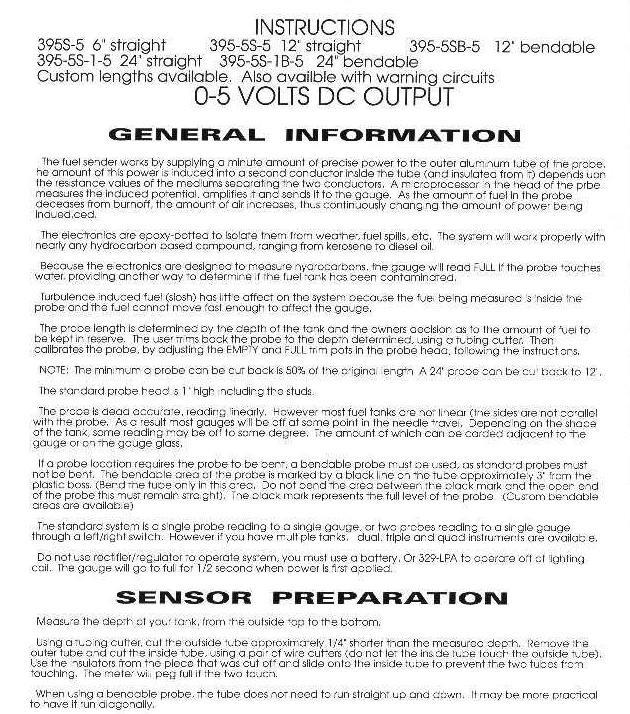

We have added the only available install and tech document to the "Tech Documents" tab of this web page for your review.
Yes, this fuel sender can be cut to length.
