Westach Fuel Sender AP-Q24B3-D1205V

$213.24/Each
Price Includes GST
Part# 10-01262
MFR Model# AP-Q24B3-D1205V
DescriptionPart No.
AP-Q24B3-D120-5V Capacitance fuel level sender 24" long10-01262

Overview

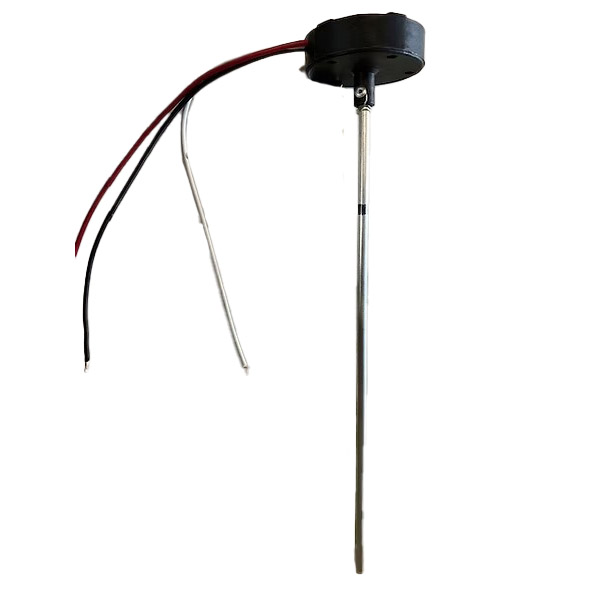

Model: AP-Q12B3-D120-5V / AP-Q24B3-D120-5V Capacitance fuel level sender 12 or 24" long, 3" bendable section, 1/4" OD, 12 or 24 VDC (28V MAX) input, 0-5 VDC output, 4 wire.

Made in USA
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Gianmarco M Verified Purchase

Westach Fuel Sender AP-Q24B3-D1205V

October 24, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is there a mounting kit?

No, a mounting kit is not included.

Q: Can this be shortened for a 4 inch deep tank?

The minimum the probe can be cut back is 50% of the original length of the probe. For a 4" deep tank, you will need to order part # 10-04344 and cut to desired length using tube cutters.

Q: Is there an STC on this Westach sender?

No, all Westach equipment is intended for use in experimental aircraft only.

Q: What is the diameter of the top? Also what are the spacing of the holes for the mounting screws that’s sit across from one another?

Diameter is 2.65 and the holes are 2.21 across.

Q: Why does it say it works with 24V power at 28V Max in the description but in the Q&A you say no?

Per the Manufacturer at Westach P/N 10-00798 can be used for 12 or 24v.

Q: What guage are the wires?

18-20 gauge is recommended by the manufacturer.

Q: Can I use the probe with Garmin interface GEA 24 for presentation at a Garmin G3X touch?

Yes, you can.
