Home / Electrical / Switches / Toggle /Toggle Switch MS35058-22
Main Image

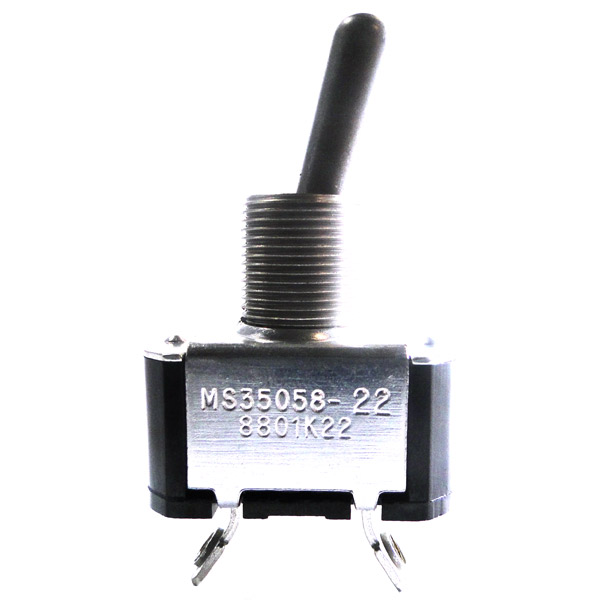

Toggle Switch MS35058-22

40 Reviews 25 Answered Questions
$20.74/Each
Price Includes GST
Quantity
Add to Wishlist View More In This Series →
Part# AN3021-2
MFR Model# 8801K22
AN No.MS No.Mfgrs. PNContactToggle Circuit
Code
AN3021-2MS35058-22JBT - MS No.SPST2

Overview

Toggle switches are available with two or three operating positions, 1 hole mounting and a variety of circuitry & electrical ratings. Contacts are made of solid silver. Wide usage is found in aircraft, mobile, marine, electronic and industrial applications. Available in full "AN" standard size & Ultra Miniature 1/2" size. Leading manufacturers of toggle switches are Micro Switch, Alcoswitch, Cutler Hammer, & JBT, now Cutler Hammer. Orders will be filled with switches of the manufacturer whose product is available in local stock.

Note: * Momentary Contact

Toggle Circuit Table

Circuitry with Toggle at

TOGGLE CIRCUIT CODE (*)
UP CENTER DOWN
1 On Off On
2 On None Off
3 On None On
4 On Off On*
5 On* Off On*
6 Off None On*
7 On Off None
8 On Off None
9 None Off On*
10 On Off* None
11 On None On*
12 On* On None
13 On On None

* Momentary contact

Tech Data

Dimensions

Reference Chart

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Solid construction. Looks and feels like a good switch. It doesnt appear to be a chrome plated toggle.

Thomas S Verified Purchase

Toggle Switch MS35058-22
September 30, 2024

Good product, worked well.

Steve G Verified Purchase

Toggle Switch MS35058-22
July 15, 2024

Replaced my push pull navigation light switch with this toggle switch

Steven Q Verified Purchase

Toggle Switch MS35058-22
May 11, 2024

as presented

Daniel J Verified Purchase

Toggle Switch MS35058-22
March 19, 2024

Feel like quality switches. And fair price. ms35058-22. Lever is not chromed like most switches. I’m sure there is a reason for this, maybe reflection purposes…?

Jamey W Verified Purchase

Toggle Switch MS35058-22
February 24, 2024

Alaska A Verified Purchase

Toggle Switch MS35058-22
February 2, 2023

Solid switch.

Pawel M Verified Purchase

Toggle Switch MS35058-22
December 6, 2022

Really nice quality and price.

David P Verified Purchase

Toggle Switch MS35058-22
August 9, 2022

The MS35058-22 Toggle Switches are really nice quality and the Aircraft Spruce price was the best we could find.

Dave P Verified Purchase

Toggle Switch MS35058-22
July 28, 2022

good product

Francis D Verified Purchase

Toggle Switch MS35058-22
May 12, 2022

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What Amp rating is the AN3027-2 switch?

This is a 20 amp switch.

Q: Does the AN3021-2 measure approximately 1-1/8" x 5/8"?

Yes, these are the approximate dimensions: 1-1/8" L x 5/8" W x 5/8" H.

Q: When the chart shows "None" in a given position (e.g. center position), does that mean that the switch does not have that position? In my example, with None in the center position, the switch just moves from On for Up to Off for Down?

Correct. With "None" in the center position, the switch will toggle only all the way up to all the way down.

Q: MS35059-27 is described as momentary on in both on positions, does that mean that the switch lever is spring loaded and stays on as long as it's held in one of the on positions?

Yes, push the lever to either position to activate, and the lever will spring back to center off, if not held in position.

Q: Are these Toggle Switches acceptable for 14V dc system?

Yes, these switched will work in 14v dc systems.

Q: What is the hole size of the SPST toggle switch?

The hole size for the toggle switches to fit through the panel is 1/2".

Q: What does the asterisk mean in ON* for these toggle switches?

The * represents momentary on. Essentially it's on at contact and then once released it is back off. It does not stay on.

Q: On which side of the switch does the mounting hole keyway slot reside? Is it on the up/on side or the down/off side? I am laser cutting mounting holes and want to be sure the panel tooth is aligned properly for the switch slot.

The keyway slot is on the down/off position.

Q: How do I order quantity 12 of MS35059-23 toggle switches?

Enter 12 in the input box in the "Buy" column in the ordering grid. Then, click the "Add to Cart" orange button below and the items will be instantly added to the shopping cart.

Q: Do the switches include hex nut, lock washer and key washer?

Yes, included are 2 hex nuts, 1 lock ring, and 1 lock washer.
