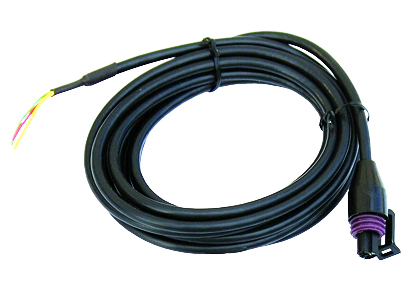

UL Flight Line Fuel Pressure Connector Cable

$32.56/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 13-16018
MFR Model# 54K0.1000.0019

Overview

UL Flight Line Fuel Pressure Connector Cable.

Specifications

  • Connection: 3-wire DLPHI Packard
  • Engines: 912A, 912F, 912UL, 912S, 912ULS, 914F, 914UL

Documents

Reviews

This three wire harness has four wires. It does not match the technical drawing posted here. Check carefully the pin outs from the gauge to the sensor, none of the wire colors make sense if you live in North America. For example, Black is power, and Red is Ground. The fourth wire of this three wire harness is yellow and connects to nothing.

James I
May 17, 2019

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the total length of this cable UL flight Line Fuel pressure connector cable pn# 13-16018?

122.5"

Q: Will this fit Dynon (Kavlico) P/N 103755-000 Pressure Sensor?

No it will not.

Q: What is the yellow wire for? It is not described in the data sheet!

The yellow wire is the shielding from from the harness. If you require a shield ground, the yellow wire is what is used.
