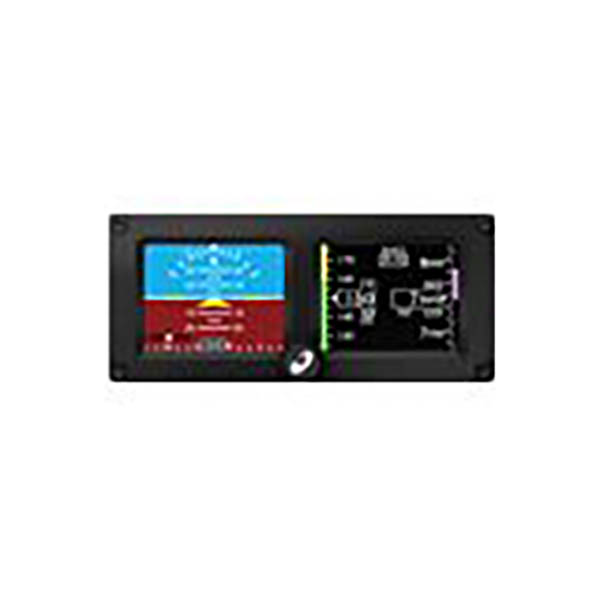

Mid-Continent Sam MD302 Altitude Airspeed Slip Bezel With NIMH Battery

0 Reviews 0 Answered Questions
Select Bezel Color:
Black Gray
Price Includes GST
Quantity
Add to Wishlist

Overview

Mid-Continent Sam MD302 Altitude Airspeed Slip Bezel NIMH Battery

Features

  • Attitude, altitude, airspeed, slip, and vertical trend indication
  • Heading via MD32 Magnetometer (optional) or aircraft system
  • Five primary functions utilize modern solid-state MEMS gyro, accelerometer and pressure transducer technology
  • Small 2.4” x 5.5” footprint
  • Extremely lightweight — 1.6 lbs
  • Self-contained, rechargeable, field-replaceable emergency battery
  • Smooth, high-definition graphics
  • Unique, two-screen display with wide viewing angles and a user-friendly menu structure
  • Selectable orientation — horizontal and vertical
  • Aircraft-specific, programmable airspeed range markings
  • Configurable for static source error correction (SSEC)
  • Simple user interface — one knob configures the display and provides menu control
  • 10–32 VDC power input
  • External, automatic and manual dimming control settings
  • Software configurable lighting curves
  • Field-upgradable software via standard USB port
  • Night Vision Imaging System (NVIS) compatible (available)
  • FAA / EASA / ANAC TSO certified to C2d, C3e, C4c, C6e, C10b, C106, C113a, C179a
  • RTCA DO-178B and DO-254 Design Assurance Level (DAL) A
  • RTCA DO-160 and RTCA DO-311 qualified
  • Designed and built in Wichita, Kansas, USA
  • Two-year or 2,000-hour warranty

Specifications

  • Power Input: 10-32 VDC; 6W nominal, 40W max
  • Output: ARINC 429 (high or low speed, see manual for specific labels)
  • Operating Range: Attitude: 300° per second pitch, roll and yaw (max)
  • Altitude: -1,500 to +55,000 ft (-457 m to 16,764 m)
  • Airspeed: 20 to 500 knots (23 to 575 mph) (37 to 926 kph)
  • Vertical Trend: 6 second time frame
  • Heading: Within ± 2° up to 55°N or 45°S
  • Units of Measure: Altitude: Feet or meters
  • Barometric Setting: Inches of mercury, millibars
  • Airspeed: Knots, miles per hour or kilometers per hour
  • Panel Tilt: Configurable: -90° to +90° pitch
  • Panel Roll: Configurable: -5° to +5° roll
  • Lighting: 5, 14 or 28 VDC external input or internal photocell
  • Programmable dimming curve
  • Pilot Interface: 16-detent, push and turn knob
  • Weight: 1.6 lbs (0.73 kg)
  • Bezel: Black / Grey
  • Battery: Rechargeable, field-replaceable, internal battery
  • Technology: Nickel metal hydride
  • Run time: 60 minutes minimum when fully charged and properly maintained
  • Mounting: Front panel mounted
  • Mating Connectors: Mid-Continent P/N 9017646 kit contains custom DB15 connector with configuration module, pitot and static connectors
  • Certification: FAA TSO certified to C2d, C3e, C4c, C6e (incomplete), C10b, C106, C113a, C179a
  • ANAC TSO certified to C2d, C3e, C4c, C10b, C106, C113a, C179a
  • EASA ETSO certified to C2d, C3d (incomplete), C4c, C10b, C106, C113, C179a
  • RTCA DO-178B and DO-254 Design Assurance Level (DAL) A
  • RTCA DO-160 and RTCA DO-311 qualified
  • Rights: U.S. Patent 9,739,611
