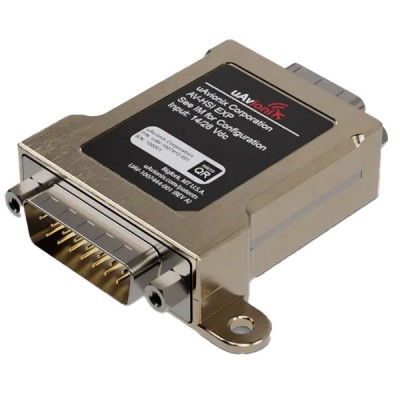

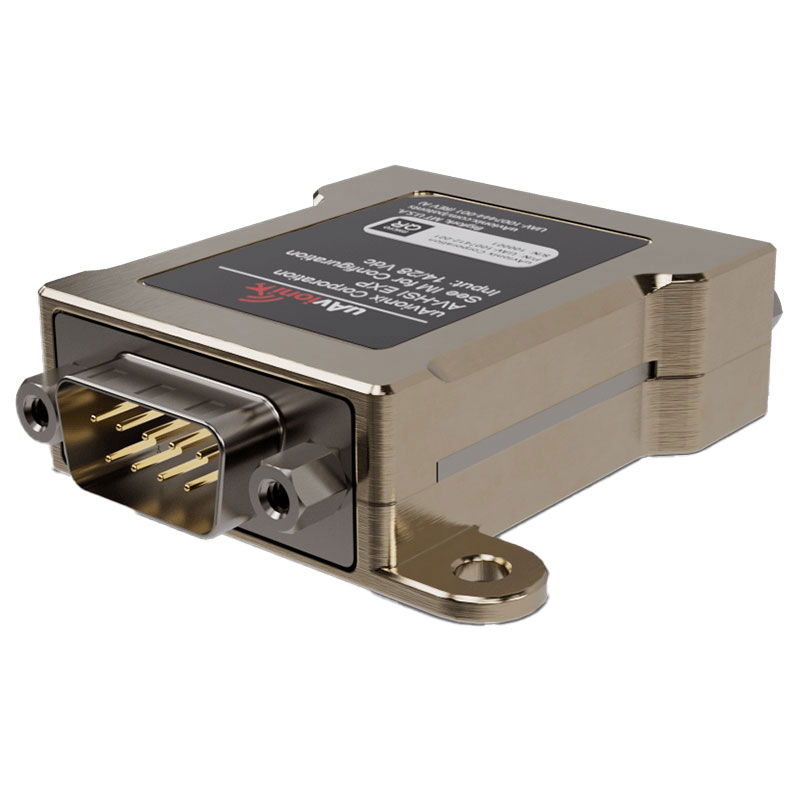

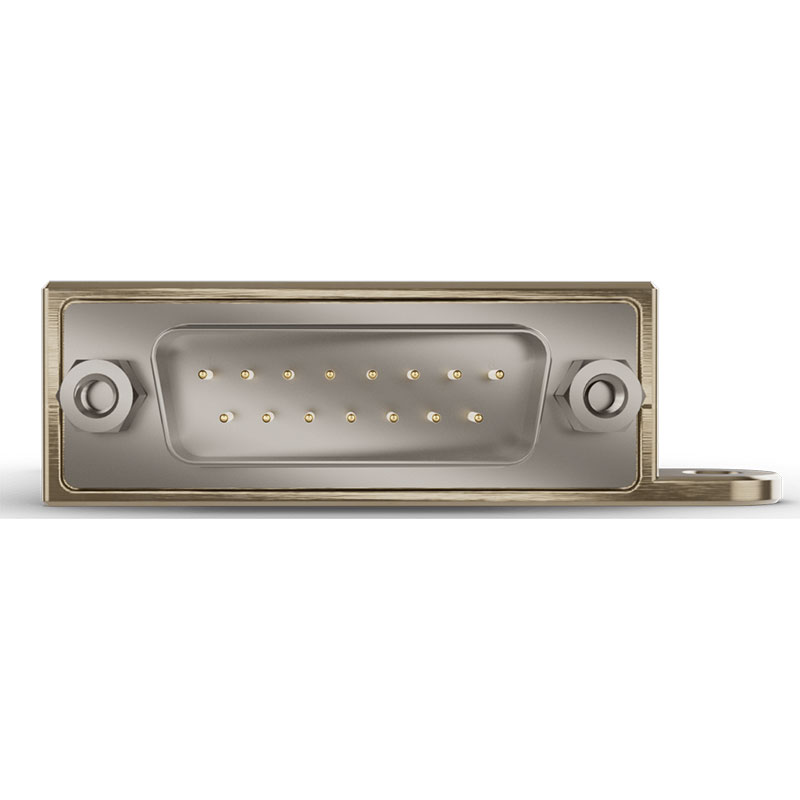

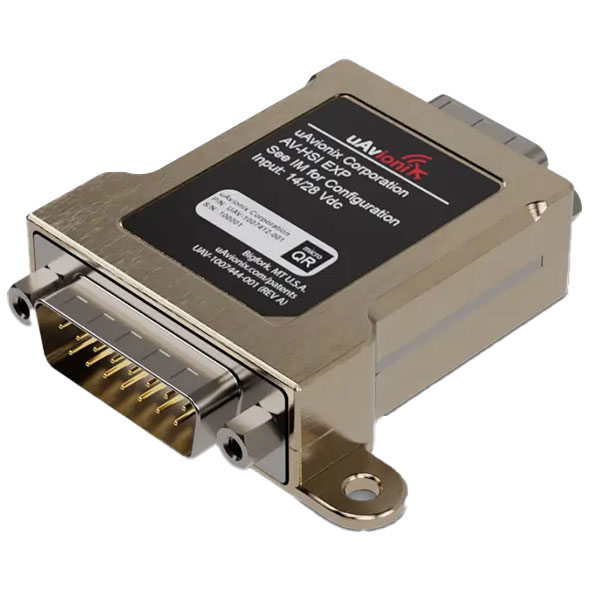

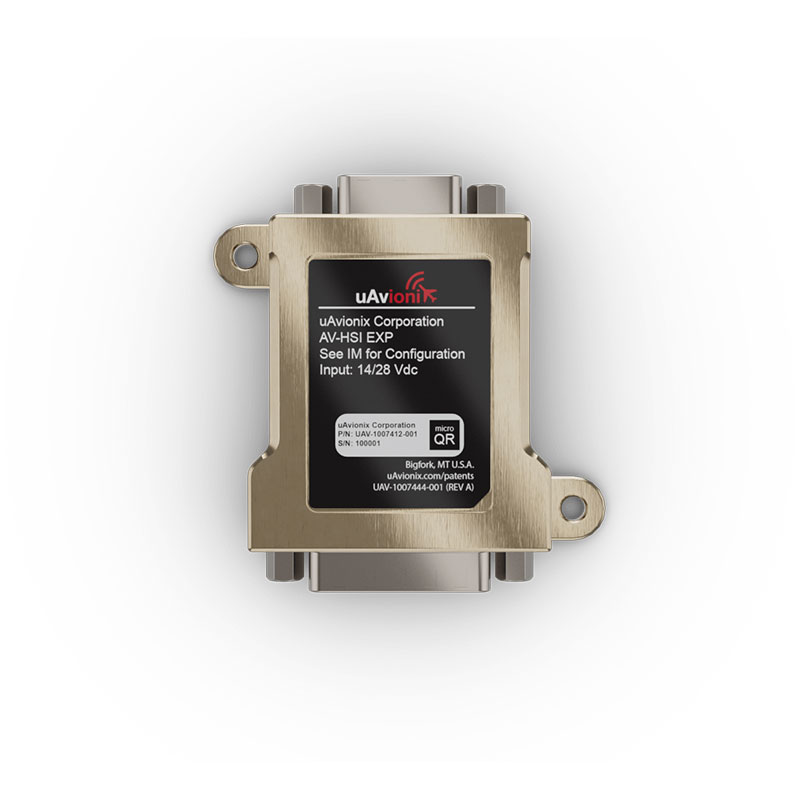

UAvionix AV-HSI Navigation Interface Adapter for AV-30 Experimental

$658.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-20265
MFR Model# UAX-90103-01

Overview

The AV-HSI (Horizontal Situation Indicator) enables essential course and glideslope guidance for ILS (Instrument Landing System) and Localizer Performance with Vertical Guidance (LPV) approaches.

Interfacing with most panel-mounted GPS navigators through three ARINC 429 channels (2 RX, 1 TX), the AV-HSI accessory for the AV-30 communicates course and glideslope guidance for display on the AV-30 during GPS and ILS precision instrument approaches and navigation.

The AV-HSI includes four serial ports for connections to NAV/COMM radios and to act as a hub between multiple AV-30’s. With the AV-HSI, multiple connected AV-30’s can receive navigation guidance as well as synchronized barometric and heading bug settings and OAT data.

Supported Units

    Supported GPS Navigators:
  • Avidyne IFD 410/440 and 510/540/545
  • Garmin GPS 400(w)/GNC 420(w)
  • Garmin GNS 430(w)/530(w)
  • Garmin GTN 650(xi)/750(xi)
  • Garmin GPS 175/GNC 355/GNX 375
  • Garmin GPS 155XL/300XL
    Supported NAV/COMM:
  • Avidyne IFD 440/540/550
  • Garmin GNS 430(w)/530(w)
  • Garmin GTN 650(xi)/750(xi)
  • Garmin GNC 255
  • Garmin/Apollo SL30
  • Trig TX56(a)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this allow an AV-30 in DG mode act as the CDI for a GPS navigation receiver, like the GNC-300XL?

The AV-HSI allows course and glideslope guideance for display on the AV-30 during GPS and ILS approaches when connected to a required GPS interface in DG mode.
