Overview

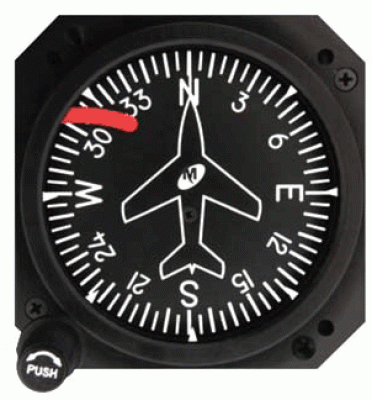

Advanced circuitry and improved design allow this directional gyro to withstand high vibration and require less than half the power of standard DGs. Lightweight (1.8 lbs.) and reliable, it utilizes long-life LEDs for a crisp, legible backlit display. With 10–32 volt DC input, it will work in any aircraft. Exceptional RTCA DO-160E HIRF immunity makes this an ideal replacement for heavy, older AIM and RC Allen units.

Features

• Weighs just 1.9 lbs. – One pound less than most electric directional gyros
• Multi-voltage 10–32 volt DC input remains valid until the aircraft main battery discharges to 10 VDC
• Direct replacement for many AIM205 and RC Allen RCA15 units
• Designed specifically for use in high vibration applications
• Warning flag monitors rotor speed and power input
• Anti-reflective glass enhances visibility and reduces fatigue
• Worldwide support program
• Requires less than half the power of standard directional gyros
• FAA TSO-C5e certified and RTCA DO-160E qualified
• Exceptional RTCA DO-160E HIRF immunity
• Designed and built in Wichita, Kansas, USA
• One-year limited warranty

Specifications

Power Input
10–32 VDC

Current Rating
At 14 VDC, Start: 1.4A Max., Run: 0.44A nominal
At 28 VDC, Start: 0.6A Max., Run: 0.22A nominal

Weight
1.9 lbs.

Length
4.65 inches

MTBF
2,500 hours

Temperature Range
–40°C to +55°C (–40°F to 130°F)

Altitude
–15,000 to +50,000 feet

Connector
4-pin (MS3116E8-4P)

Mating Connector
Mid-Continent P/N 9015514 (MS3116F8-4S or equivalent)

Color
Index Marks, Text, Symbolic Airplane, Logo: White
Bezel, Dial Background: Black
Power/Rotor Speed Warning Flag: Red

Glass
Special HEA anti-reflective coating

Mounting
Rear panel mount in standard 3 1/8” round panel cutout
