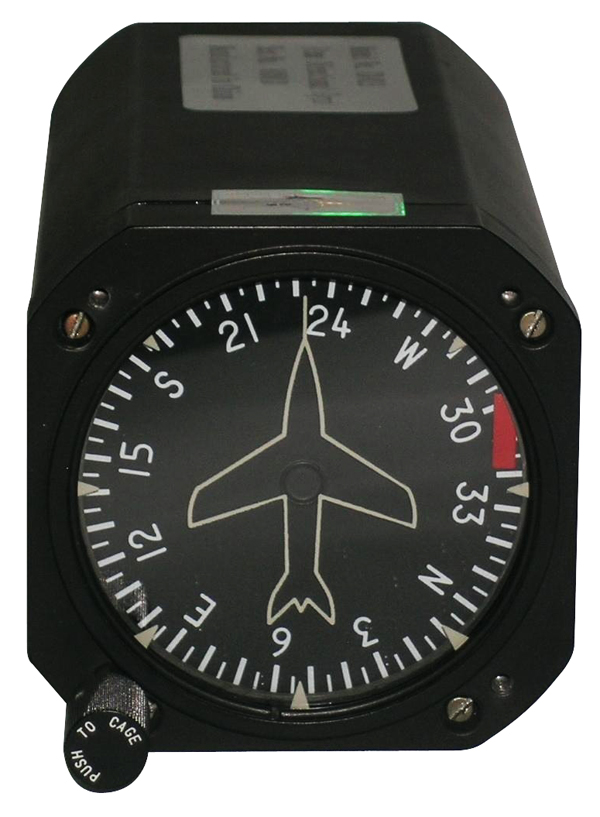

Skysports Electric Directional Gyro
MFR Model# GD023
Overview
|
Note: This does not include the electrical connector. See Accessories tab to order connector. The Skysports electric directional gyro is a high quality gyro providing smooth operation, long life, and reliability. It features a warning flag which is displayed when voltage drops below operation requirements, and the instrument is LED lighted with automatic dimming. A good choice for a wide variety of experimental aircraft. Non-TSO'd. Dimensions: 3-3/8" |
Performance
- Working Range: Indicating heading angle within the range of 360°
- Accuracy: The drift error is not more than 4°/10 min.
- It will work normally when operating voltage is inputted 3 min; and rotor stars
- working when 80% operating voltage is inputted.
- Operating current is not more than 0.72A.
- Rated Rotating speed is 22000 turns per min: It warns when power-off the
- rotating speed is below 70% of the rate rotating speed.
- The insulating Resistance between the power and case is not less than 20M9.
Specifications
- Operating Voltage: DC. 14 ±1%V
- Ambient Temperature: -40 ~ +50°C
- Relative Humidity: It can reach 95% at 20 ± 5°C;
- Vibration Strength: not more than 1.5g
Documents
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, this gauge does have a heading bug.
No, this gauge is not TSO'd certified to be used on a certified aircraft.
Per the manufacturer, it requires a 2 amp circuit breaker.
Yes, Part #11-04970 would be the connector for the Electric Directional Gyro.
No, it does not affect the instrument if there is a slight incline per the manufacturer.
