Overview

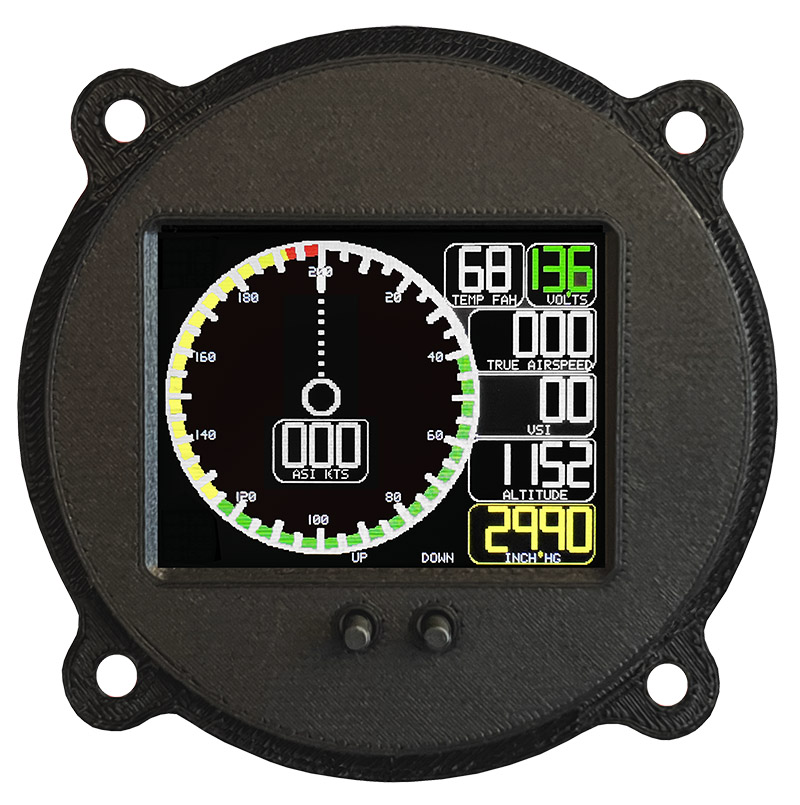

Radiant Universal Air Speed Indicator-Gen 2 The GEN-2 Universal Airspeed Indicator features digital enhancements and is an exciting upgrade from previous RADIANT ASI instruments. The instrument includes an external temperature probe that allows additional readings for Outside Air Temperature (OAT) and Density Altitude. It also provides the ability to see speed trends, a huge digital display, and user selectable units of 100, 160, and 200 with either knots or MPH.

Features

• External Temperature
• True Airspeed
• Celsius or Fahrenheit display
• Easy Installation (add power, ground, that’s all that’s needed, and connect pitot line)
• Install into standard 2 1/4 or 3 1/8 inch panel instrument hole (using optional adapter ring for 3 1/8)
• Max Scale, you pick, 100 or 200
• Knots vs MPH, you pick
• Custom Green Airspeed Range, set it to what you want
• Custom Yellow Airspeed Range, set it to what you want
• Custom Red Airspeed Range, set it to what you want
• Calibratable Temperature Probe
• Digital Altimeter
• Digital VSI
• Digital Kollsman (input your local setting like any other altimeter)

Specifications

• Sunlight readable, with extremely high contrast.
• User selectable for airspeed 100 or 200 range (airspeed units).
• User selectable for airspeed knots or MPH (airspeed units).
• User selectable for Celsius or Fahrenheit (outside air temperature, used for temperature and True Airspeed calculations).
• Airspeed: Indicated Airspeed / True Airspeed / Digital Altitude / Analog (Dial) Representation of Airspeed / Digital VSI / Settable Kollsman /Outside Air Temperature / System
• Voltage (8 points of data on one screen).
• Dimmable (uses external potentiometer, included!).
• Designed to fit 2 ¼” instrument rectangular cutout with 2 bolts (included), or 3 1/8” standard panel cutout (using optional adapter ring for 3 1/8). Will also fit into standard 2 ¼" round instrument cutout with very slight clipping of the left side of the screen.
• Power Source: +6.5 to +14 volts, approximately 0.125 ampere.
• Case is black nylon with chopped carbon fiber, 3D printed.
• Includes external temperature sensor for OAT with included 2 meter harness (~80 inch).
