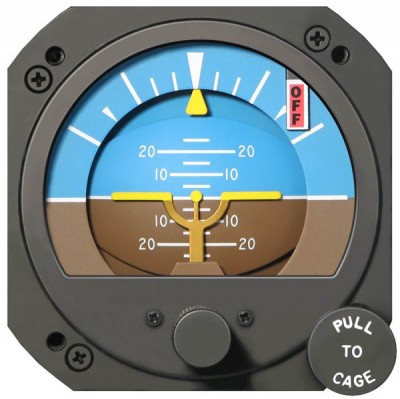

RC Allen 26Ek Series Gyro Electric Multi-Volt Attitude Indicator
Overview
|
The RCA26 Series is the top of the line and has been designed for precision and reliability. The RCS26EK Series is a 10-30 VDC multi-volt instrument. You have a choice of a fixed or moveable pointer and lighted or non-lighted. Performance characteristics include roll indication of 360°. Pitch ± 30°. Pitch trim range ±7°. Slip Indicator can be added upon request. Mating connector MS3116E8-4S and panel mounting screws are now included with each unit. OPERATING TEMPERATURE: -30 TO +50 Degree Celsius These instruments meet or exceed requirements of TSO C4c and Aeronautical Standard AS396B. Optional Slip Indicator to satisfy FAA AC91-75 (10-02586). Made in the USA |
Model Specifications
- EK-11:Fixed Pointer, unlit, with a yellow airplane and pointer. Pin out of connector A: Ground, B: Spare, C:+10-30 VCD, D: Spare, available in 0° or 8° Tilt
- EK-12:Fixed Pointer, lighted, with a yellow airplane and pointer. Pin out of connector. A: Ground, B:Ground Lights, C: +12=30 VDC Motor, D:0-28 VDC Lights, available in 0° or 8° Tilt

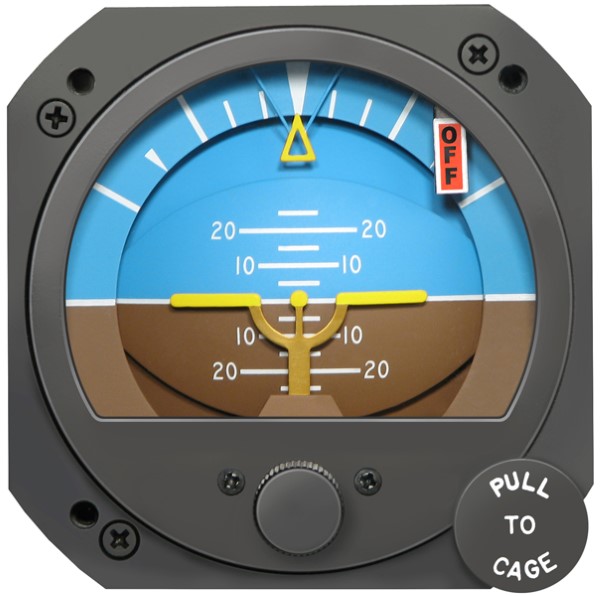

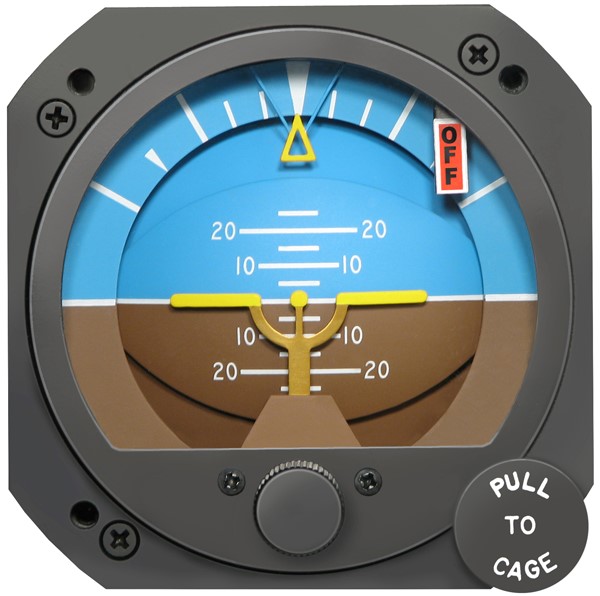

- EK-13:Movable pointer, unlit, with a yellow airplane and pointer. Pin out of connector. A: Ground, B: Spare, C:+10-30 VDC, D: Spare, available in 0° or 8° Tilt
- EK-14:Moveable pointer, lighted, with a yellow airplane and pointer. Pin out of connector. A: Ground, B: Ground Lights, C: +10-30 VDC Motor, D: 0-28 VDC Lights, available in 0° or 8° Tilt
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Approximately 4.3 lbs.
No, the 8130-3 must be purchased separately. You can add the 8130-3 in the shopping cart.
Some aircraft have a permanently tilted panel, so there are gyros that compensate for that tilt.
