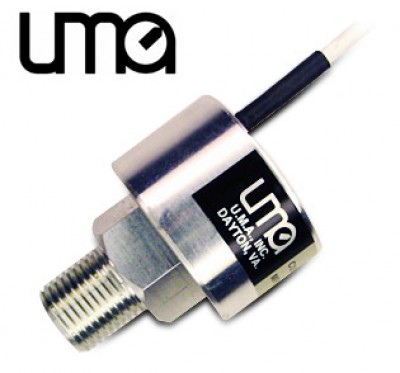

UMA Pressure Senders Type T1Eu35G & T1Eu100G

From $223.95 to $223.95
Prices below incude GST
Manufacturer Number Range Max Pressure Part Number Price Buy
T1EU35(G)(B)0-35 PSI145 PSI
10-02646
$246.34
Quantity
T1EU100(G)(D)0-100 PSI406 PSI
10-02647
$246.34
Quantity
T1EU150(G)(D)0-150 PSI580 PSI
10-04312
$246.34
Quantity
Subtotal $0.00
Add to Wishlist

Overview

PRESSURE SENDERS
SOLID STATE TRANSDUCER

0-5V OUTPUT

These units are the most economical TSO’d units on the market. They feature precision, solid state sensors and circuitry to give unequalled performance for the money. Available in gauge, differential and absolute types, they are compatible with avgas, jet fuel, engine oil and many other fluids. Because they have internal voltage regulation, they are compatible with indicating instruments that do not have precision output voltages. Units for fuel and oil pressure are certified under TSO C47. Units for manifold pressure are under TSO C45a.

Specifications

  • Power req.: 9-16v - 10 ma.
  • Internal regulator
  • Output: 0.2 to 4.7 v
  • Ranges: 0-7 to 0-150 psi, 0-70 in. Hg.
  • Gauge-differential-absolute
  • Weight: 2.6 oz.
  • Length: 2 in. Dia.: 1.5 in.
  • Material: aluminum (2024)
  • Pressure fitting: 1/8 in. - 27 npt
  • Mounting threads: 5/8 in. - 18
  • Operating temp.: -40c° to +120c°
  • Connection: 3 wires
  • Media compatibility: avgas-oil-jet fuel-water
