UMA Mechanical Manifold Pressure

From $196.75 to $335.00
Prices below incude GST
Description Part No. Price Buy
3-1/8 UMA Mechanical Manifold Pressure
Dual Diaphragm
Range: 10-35 InHg.
10-00080
$368.50
Quantity
3-1/8 UMA Mechanical Manifold Pressure
Dual Diaphragm
Range: 10-50 InHg.
10-11300
$368.50
Quantity
2-1/4 UMA Mechanical Manifold Pressure
Single Diaphragm
Range: 10-50 InHg.
Black and White Markings
10-11200
$216.43
Quantity
2-1/4 UMA Mechanical Manifold Pressure
Single Diaphragm
Range: 10-35 InHg.
10-11250
$216.43
Quantity
2-1/4 UMA Mechanical Manifold Pressure
Single Diaphragm
Range: 10-50 InHg.
Green Arc: 15-34
Yellow Arc: 34-36
Red Arc: 36
10-02473
$251.84
Quantity
2-1/4 UMA Mechanical Manifold Pressure
Single Diaphragm
Range: 10-50 InHg.
Green Arc: 15-24
Red Arc: 30
10-02474
$250.75
Quantity
2-1/4 UMA Mechanical Manifold Pressure
Single Diaphragm
Range: 10-40 InHg.
10-02476
$250.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The conventional 2-1/4" Manifold gauge is lightweight with a slim design and uses a single diaphragm. The newer 3-1/8" and 2-1/4" gauges incorporate a dual diaphragm design which improves the longevity and reliability of the instrument. Standard markings are black and white.

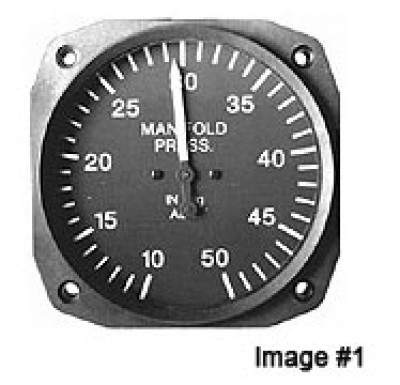

3-1/8" UMA Mechanical (Refer to Image #1)
Manifold Pressure
(Dual Diaphragm)
Case: Valox 420 Plastic
Weight: 9.0 oz.

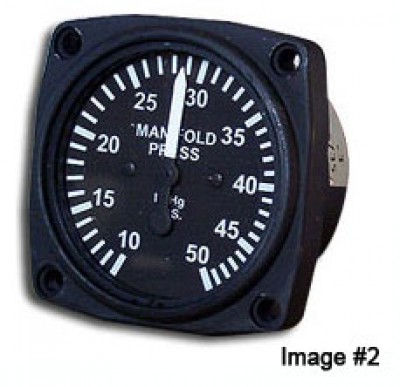

2-1/4" UMA Mechanical (Refer to Image #2)
Manifold Pressure
(Dual Diaphragm)
Case: Valox 420 Plastic
Weight: 7.8 oz.

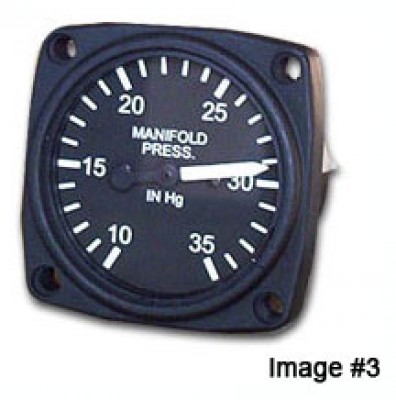

2-1/4" UMA Mechanical (Refer to Image #3)
Manifold Pressure
(Single Diaphragm)
Case: Cast Aluminum
Weight: 4.7 oz.

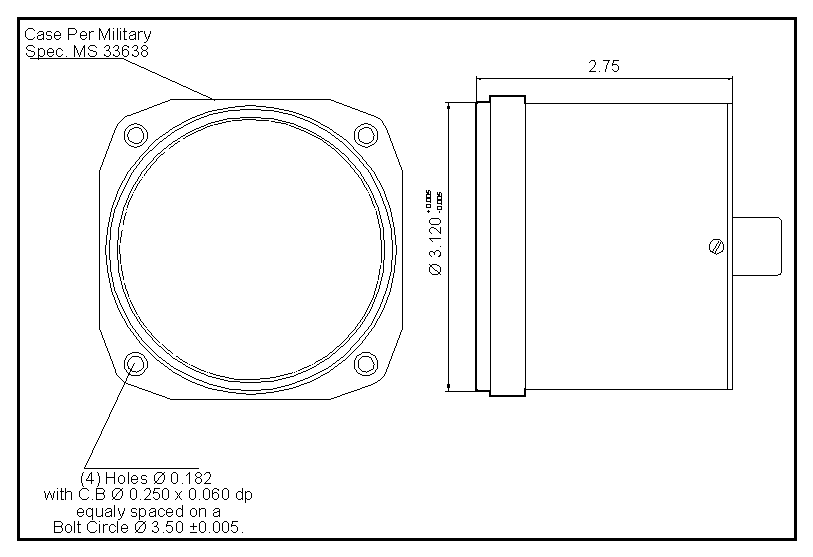

Click here to download the 3-1/8"mounting diagram

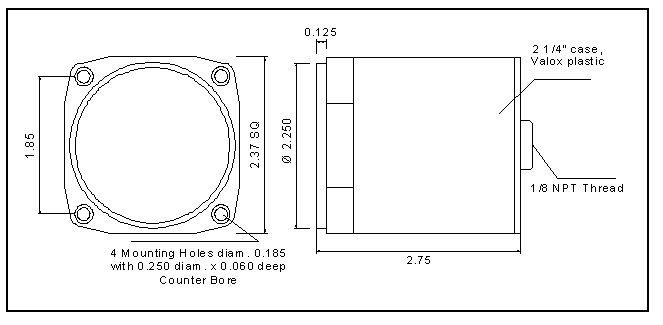

Click here to download the 2-1/4" dual mounting diagram

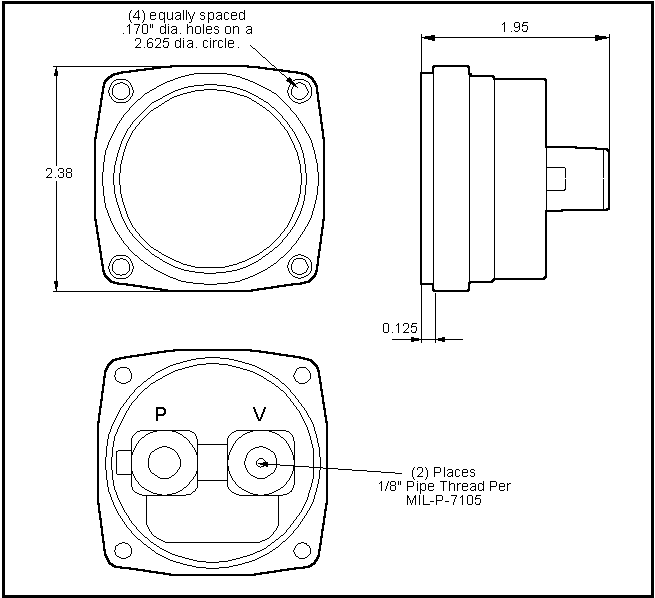

Click here to download the 2-1/4" mounting diagram
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Easy to install and works great. The instructions are a little hard to follow. Suffice it to say that this unit assumes the ambient temperature is 75 degrees and will display a cht that starts there. So, if the ambient temp is less than 75 degrees the unit is assuming its hotter than it really is. So, you subtract one degree for each degree below 75. If its hotter than 75, the unit assumes its cooler than reality, so you add one degree for each ambient degree above 75.

Everett C Verified Purchase

UMA 2-1/4 Mechanical Manifold Pressure 10 - 35 In Hg Non-TSO

November 10, 2023

Awesome service once again, fast delivery, 1 week delivery to New Zealand

Case G
August 17, 2020

Fine

Gregoire P
August 17, 2019

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these UMA manifold pressure units FAA approved?

No, these UMA gauges are non TSO'd (not certified).
