Cygnet Sf-2A

From $201.95 to $3975.00
Prices below incude GST
Description Part Number Price Buy
Cygnet Spruce Kit
Click Here for Kit Components
02-04500
$3842.65
Quantity
Cygnet Metal Kits
Click Here for Kit Components
01-01583
$4372.50
Quantity
Cygnet Plywood Foam Kit
Click Here for Kit Components
01-01584
$222.15
Quantity
Cygnet Hardware Kit
Click Here for Kit Components
01-01580
$334.35
Quantity
Cygnet Control System
Click Here for Kit Components
01-01581
$684.20
Quantity
Cygnet Miscellaneous
Click Here for Kit Components
01-01582
$614.90
Quantity
Cygnet Wheel & Brake Kit
Click Here for Kit Components
01-01585
$2719.20
Quantity
Subtotal $0.00
Add to Wishlist

Overview

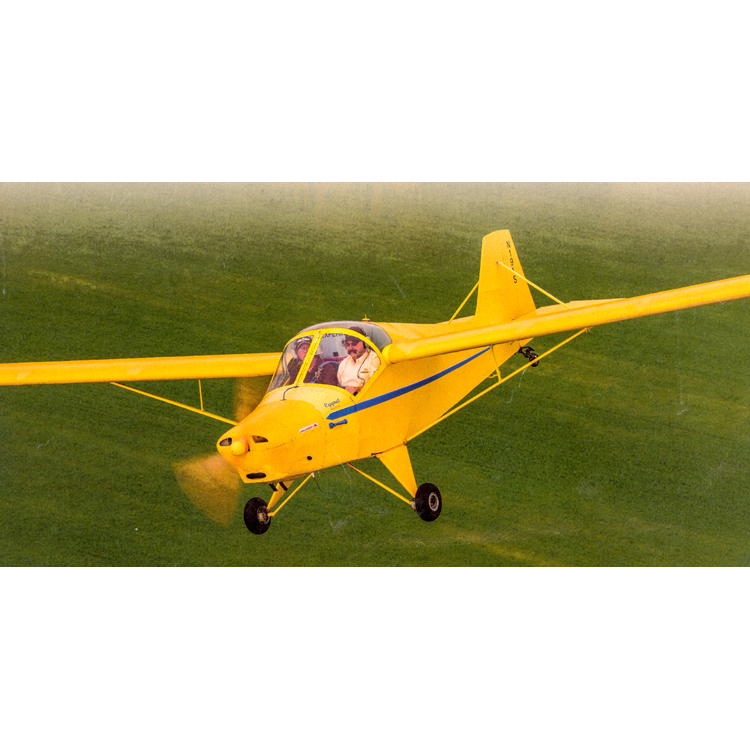

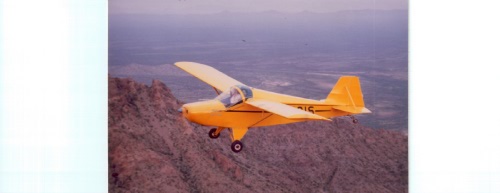

A Two Place Utility Aircraft with S.T.O.L. Performance and Real Load Hauling Abilities.

Contact Information:
    Viking Aircraft LLC
    P O Box 646
    Elkhorn, Wisconsin 53121
    262-949-3247
    Email: viking02@charter.net
    www.vikingaircraft.com

Specifications

  • Empty Weight 585 lbs.
  • Gross Weight 1100 lbs.
  • Wing Span 30 ft.
  • Chord 50 In.
  • Airfoil NACA 3413
  • Limit “G” Load 4.0 G
  • Engine V.W. 1835cc
  • Fuel Capacity 15 Gal. U.S.
  • Cockpit Width 39 Inches

Performance

  • Stall Speed 48 MPH
  • Max Speed 108 MPH
  • Cruise Speed@ 800 FT. 100 MPH
  • Cruise Fuel Burn 3.9 GPH
  • Cruise RPM 2950 RPM
  • Rate of Climb 580 FPM
  • T.O. 1 Land Dist. 700 Ft.

Reviews

I built a Cygnet from 1997 to 2000. It was my third aeroplane following construction of a Jim Maupin Carbon Dragon and a TEAM Minimax. I still have the Cygnet with nearly 1000 hours on it. At 750 hours I converted from my old trusty 1835 VW single vertex ignition and Bing CV32mm carb to a 2200 Jabiru. I can honestly say it is a fantastic plane to fly. It has positive stability in all axis and would have to be the easiest of any tail wheel aircraft to land. I had no problem flying two up with the VW motor and performance was as per the specifications. Performance with the Jabiru engine is an order of magnitude better cruise speed is more in excess of 90kts and ROC one up is close to 1000fpm. I also own and fly a Corby Starlet, & while the Cygnet does not have the manouverability of a close coupled aerobatic plane like the Corby, it is a great plane to fly. Building the Cygnet was easy. The wings, despite apparent complexity are actually quicker to build than traditional double strut braced wings. My Cygnet is still a cherished possession. I would caution builders: stick to the plans. My Cygnet empty weight is 245kg. I’ve flown other Cygnets much heavier and their performance despite bigger engines were not on a par with mine. Build light!

Mark D
August 8, 2020
