Super Baby Great Lakes

From $502.00 to $3256.75
Prices below incude GST
Description Part Number Price Buy
Baby Great Lakes Info Pack
01-10013
$0.00
Quantity
Super Baby Great Lakes Plans
01-10011
$552.20
Quantity
Super Baby Kit #4B - 4130 Package
Click Here for Kit Components
03-14310
$3582.43
Quantity
Subtotal $0.00
Add to Wishlist

Overview

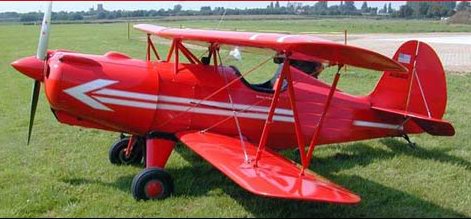

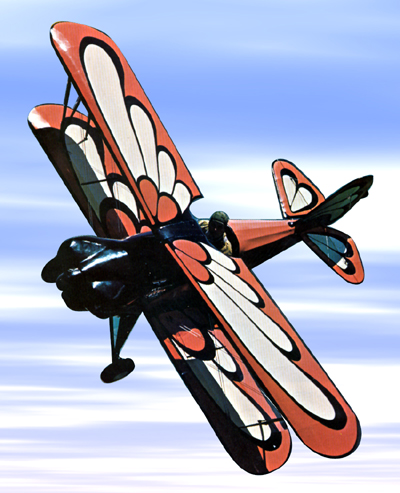

The Baby Great Lakes (one place) and Buddy Great Lakes (two place) aircraft are well proven designs which are easy to construct and fly, provide classic good looks, and are aerobatic. Construction is of wood and steel tubing and plans are well presented for the first time builder. We acquired all rights to these designs in May 1996 and now offers packs, plans, raw materials kits, and pre-fabricated kits for these fine aircraft. Contact us for information on info packs and plans.

Note: The Baby Great Lakes Main Tank Standard holds 10 gallons. The Baby Great Lakes Tank Stretch is 3" longer and holds 11 gallons.

Download the License Agreements in PDF.

Builders Forums

Oldfield Baby Great Lakes biplane group
Oldfield Baby Great Lakes biplane group

Specifications

  • Kit Price Without Engine: ~$12,500
  • Plans Price: $295
  • Number of Seats: 1
  • Building Materials: N/A
  • Building Time: ~1200 Hours
  • Standard Engine: Lycoming O-235 / 110 hp
  • Horsepower: 100-125
  • Wing Span: 16.8'
  • Wing Area: 89 sq ft
  • Empty Weight: 510 lbs
  • Gross Weight: 850 lbs
  • Takeoff Distance: 300'
  • Landing Distance: 300'
  • Cruise Speed: 135 mph
  • Top Speed: 155 mph
  • Fuel Capacity: 12 Gallons
  • Range: 250 miles

Info Pack

Information Packet (PDF)

Reviews

Robert N Verified Purchase

Baby Great Lakes Info Pack

February 21, 2023

I re-built and currently own Super Baby Lakes N-4611S. It's awesome with a 135 HP Lycoming O-290-D2, Wood prop, Madrid Red paint and White accents, 15 gallon tank, Starter, Alternator, Radio and Transponder. It flies aerobatics every time it's up and is simply a little Hot Rod! Call me at 860-639-1813 or buck@ussportoptics.com

Buck S
February 13, 2014

The plans arrived in good shape and included almost all the information that one would need to build the plane. However, it lacks the construction manual which is definitely needed to construct the plane properly. So after buying plans for $295 dollars I will also have to find and purchase the manual elsewhere as Spruce does not carry it or even knows it exists.

Marcus B
March 20, 2020
