Long Ez

From $1.80 to $3285.00
Prices below incude GST
Description PN Price Buy
Longez Wood Kit
Click Here for Kit Components
01-00500
$391.96
Quantity
Longez Hardware Kit
Click Here for Kit Components
01-00900
$467.18
Quantity
Longez Plumbing & Conduits Kit
Click Here for Kit Components
01-01100
$112.75
Quantity
Longez Miscellaneous Items Kit
Click Here for Kit Components
01-01200
$1396.10
Quantity
Long EZ Decal White
09-43791
$12.04
Quantity
Long-EZ Exhaust System 33804
08-00832
$2696.10
Quantity
Long-EZ Exhaust System 33804-1 Without Heat Exchanger
08-00833
$3613.50
Quantity
Long-EZ Handle
01-00770
$20.24
Quantity
Long-EZ Handle
01-00771
$12.43
Quantity
Long -E-Z Left Control Arm
01-00780
$39.33
Quantity
Long -E-Z Right Control Arm
01-00781
$39.33
Quantity
Long-EZ Steel Bushing
01-00782
$2.00
Quantity
Long-EZ Bellcrank Assembly
01-00783
$53.24
Quantity
Long-EZ Bracket
01-00785
$6.00
Quantity
Vari-Eze 3/8 Universal Joint
01-00786
$54.45
Quantity
Long-EZ Bearing
01-00787
$6.66
Quantity
Long-EZ Aluminum Bushings
01-00789
$1.98
Quantity
Long-EZ Ll-4 Spacer
01-00798
$3.30
Quantity
Long-EZ NG9 Insert
01-00809
$11.50
Quantity
Long-EZ LB6 Spacer
01-00815
$4.29
Quantity
Long-EZ Lb-16 Spacer
01-00817
$6.33
Quantity
Long-EZ LB21 Rod
01-00819
$12.54
Quantity
Long-EZ Nosegear Mountng Plate
01-00838
$9.24
Quantity
AZUSA TIRE 280/250 x 4 4PLY
06-01287
$15.95
Quantity
AZUSA TUBE 280/250 X 4
06-01288
$8.75
Quantity
Cheng Shin Tire 11X4.00-5 6 Ply
06-02952
$49.34
Quantity
Ultralight & Experimental 11-400 X 5 8Ply 7046-8
06-01573
$50.05
Quantity
Subtotal $0.00
Add to Wishlist

Overview

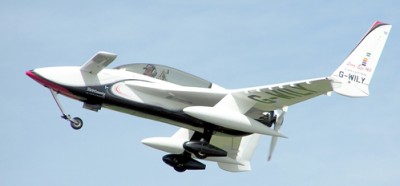

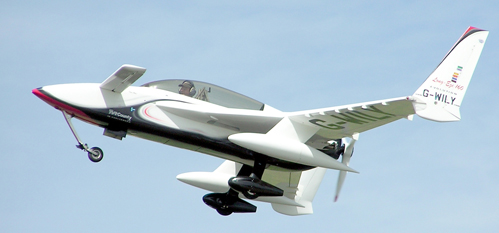

The Long-EZ designed by Burt Rutan, is a homebuilt aircraft derived from the VariEze. Changes from the VariEze include a larger main wing with modified Eppler 1230 airfoil and less sweep, larger strakes containing more fuel and baggage storage, slightly wider cabin, and the ability to use a Lycoming 108 hp engine with no nose ballast. The aircraft is designed for fuel-efficient long-range flight and can fly for over ten hours and up to 1,600 miles (2,500 kilometers) on 52 gallons (200 liters) of fuel. The pilot sits in a semi-reclined seat and controls the Long-EZ by means of a side-stick controller situated on the right-hand console. In addition to having an airbrake on the underside, the twin tail’s wingtip rudders can be deflected outwards to act as auxiliary airbrakes. The aircraft will not stall in the manner of a conventional aircraft since, if the Long-EZ reaches too low a speed, the front (canard) wing will stall and
lower the aircraft nose until speed is regained.

Specifications

  • Plans Price: N/A
  • Number of Seats: 1
  • Building Materials: N/A
  • Building Time: N/A
  • Standard Engine: Lycoming O-235 115HP
  • Horsepower: 115
  • Wing Span: 26.1'
  • Wing Aera: 81.99 sq ft
  • Empty Weight: 710 lbs
  • Gross Weight: 1325 lbs
  • Takeoff Distance: N/A
  • Landing Distance: 1200'
  • Cruise Speed: 144 mph
  • Top Speed: 185 mph
  • Fuel Capacity: 52 Gallons
  • Range: 2010 miles
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Todo perfecto

Wld L Verified Purchase

Ultralight & Experimental 11-400 X 5 8Ply 7046-8

October 9, 2024

Siriwan Verified Purchase

Cheng Shin Tire 11X4.00-5 6 Ply

August 20, 2024

Inaebnit Verified Purchase

Ultralight & Experimental 11-400 X 5 8Ply 7046-8

April 2, 2024

Just as it was , a good reason to keep aircraft spruce as a provider

Jim P Verified Purchase

Cheng Shin Tire 11X4.00-5 6 Ply

January 2, 2024

Hogge A Verified Purchase

Ultralight & Experimental 11-400 X 5 8Ply 7046-8

November 22, 2023

Good

Roger H Verified Purchase

Ultralight & Experimental 11-400 X 5 8Ply 7046-8

October 19, 2023

Used as nosewheels on 1200# amphib. floats. Work OK so far.

Peter R Verified Purchase

Azusa Tire 280/250 X 4 4Ply

May 27, 2023

Excellent

Norman H Verified Purchase

Ultralight & Experimental 11-400 X 5 8Ply 7046-8

May 22, 2023

Earl B Verified Purchase

Ultralight & Experimental 11-400 X 5 8Ply 7046-8

May 9, 2023

Perfect fit for the tires

Debbie S Verified Purchase

Azusa Tube #7129 280/250 X 4

March 4, 2023

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you have any Long EZ build plans for sale?

We do not carry they Long EZ plans as they are no longer printed. The best bet to find them is to check the Aircraft Spruce Builder Forums or Trade-A-Plane for anyone selling their plans.

Q: Do you sell the foam and cloth and epoxy for the long EZ ?

We do not market these products specifically for the Long EZ but we have a large selection of composite materials that are commonly used on Long EZs.
