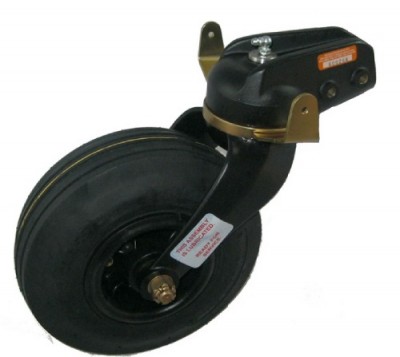

Alaskan Bushwheel 3400 Tailwheel
(Hover to zoom | Use mouse wheel for +/-)
| Item | ABI PN | Description | PN | Price | Buy |
|---|---|---|---|---|---|
| ----- | ABI-3400-00 | 8" Tailwheel Assembly | 06-01147 | $2459.60 | |
| ----- | ABI-3450-00 | 10" Tailwheel Assembly | 06-01148 | $2339.70 | |
| ----- | ABI-3450-23 (S) | 2-Bolt, 10" Tailwheel Assembly Staight Arm | 06-01149 | $2689.50 | |
| ----- | ABI-3450-23 (T) | 2-Bolt, 10" Tailwheel Assembly Bent Arm | 06-01741 | $2689.50 | |
| ----- | ABI-3400B | Bushwheel Tailwheel Assembly | 06-01150 | $3410.00 | |
| 1 | ABI-3412MK | Tailwheel Head | 06-01151 | $685.30 | |
| 1A | ABI-3450-23-M | 2-Bolt Tailwheel Head | 06-01152 | $647.90 | |
| 2 | ABI-3423-01** | 10" Fork | 06-01153 | $663.88 | |
| 2A | ABI-3413-01** | 8" Fork | 06-01154 | $486.20 | |
| 2B | ABI-F2****** | Wide Fork | 06-01155 | $816.20 | |
| 4 | ABI-3412-S.875*** | 7/8" Head Spacer | 06-01156 | $130.62 | |
| 5 | ABI-3412-S.937*** | 15/16" Head Spacer | 06-01157 | $130.62 | |
| 6 | ABI-3412-S1.00*** | 1" Head Spacer | 06-01158 | $152.62 | |
| 8 | 8118 | Bearing | 06-01163 | $54.84 | |
| 9 | ABI-3233-00 | Compression Spring | 06-00728 | $5.78 | |
| 10 | ABI-3411-02 | Dust Cap, Upper | 06-01166 | $49.12 | |
| 10A | ABI-3411-07* | Dust Cap, Upper (For Locking Tailwheels) | 06-01167 | $53.35 | |
| 11 | ABI-3408-00 | Thrust Washer | 06-01168 | $26.95 | |
| 12 | ABI-3408-01 | .036 Fiber Thrust Washer | 06-01170 | $25.85 | |
| 12A | ABI-3479-01* | Fiber Thrust Washer | 06-01169 | $23.65 | |
| 13 | ABI-3410-03 | Steering Arm Bent (Bent)**** | 06-01171 | $435.60 | |
| 13A | ABI-3410-05 | Straight Steering Arm | 06-01172 | $405.90 | |
| 14 | ABI-3219-00 | Short Pawl | 06-00732 | $61.33 | |
| 15 | ABI-3407-00 | Spacer | 06-01164 | $7.32 | |
| 16 | ABI-3408-02 | .065 Fiber Thrust Washer | 06-01173 | $25.85 | |
| 17 | ABI-3411-02 | Dust Cap, Lower | 06-01174 | $45.98 | |
| 17A | ABI-3411-05* | Dust Cap, Lower (For Locking Tailwheels) | 06-01175 | $52.25 | |
| 18 | ABI-232-046 | Pin | 06-00749 | $20.35 | |
| 19 | ABI-3432-00 | Compression Spring | 05-15222 | $20.35 | |
| 20 | ABI-3258-01 | Spacer | 06-00739 | $3.85 | |
| 21 | ABI-3258-00 | Spacer | 06-00738 | $3.69 | |
| 22 | ABI-3257-00 | Pin | 06-00740 | $13.14 | |
| 23 | A4138 | Bearing Race | 06-01183 | $28.21 | |
| 24 | A4050 | Bearing | 05-15223 | $54.62 | |
| 25 | ABI-1863 | Grease Retainer | 06-00746 | $15.35 | |
| 26 | ABI-2504-01 | Spacer | 06-01178 | $26.13 | |
| 27 | AN960-816 | Washer (Axle) | 05-15224 | $0.42 | |
| 28 | AN320-8 | Nut | 05-15225 | $10.45 | |
| 29 | ABI-3244-00 | Wheel Half | 06-00745 | $213.13 | |
| 29A | ABI-S2 | Wide Spacer (ABI-3400-B Tailwheels) | 06-00744 | $143.88 | |
| 30 | ABI-3236-C2** | 10" Axle Bolt | 06-01186 | $75.89 | |
| 30A | ABI-872 | Wide Fork Axle Bolt (ABI-3400-B Tailwheels) | 06-00741 | $69.03 | |
| 31 | ABI-3227-00 | Spacer | 06-00743 | $37.12 | |
| 32 | AN4-7A | Wheel Bolt | 05-15226 | $0.30 | |
| 32A | AN4-34A | Wide Wheel Bolt (ABI-3400-B Tailwheels) | 05-15227 | $1.09 | |
| 33 | AN960-416 | Washer (Wheel) | 05-15228 | $0.21 | |
| 35 | ABI-3225-00 | Tab Lock Washer | 06-00742 | $9.74 | |
| 37 | AN310-8 | Nut | AN310-8 | $5.39 | |
| 39 | ABI-2602 | Gasket | 06-00750 | $5.88 | |
| 40 | T7201 | Zerk Fitting | 06-00753 | $3.69 | |
| 41 | T7208 | Zerk Fitting | 06-01184 | $3.85 | |
| 44 | AN960-516 | Washer (Wheel) | 05-15236 | $0.09 | |
| 47 | 280X2.50X6 | 8" Tire (Scott/ABI-3400 Tailwheels) | 05-15239 | $141.84 | |
| 47A | 10X3.50-4 | 10" Tire (Scott/ABI-3425 and 3450 Tailwheels) | 05-15240 | $157.14 | |
| - | 3400MBK-01 | Miscellaneous Mounting Bolt Kit | 05-15243 | $12.65 |
Overview
|
The Alaskan Bushwheel Tailwheel Assembly is an FAA-PMA (PMA # PQ1557NM, Supplement 9) Replacement part for the Scott 3200 assembly and parts contained therein, includes Heavy Duty Steering Arm. One Year Warranty.
*=NOT INCLUDED IN ANY ASSEMBLY. ONLY FOR ’LOCKER’ **=NOT INCLUDED IN ABI-3400B ***=BY REQUEST ONLY. NOT INCLUDED IN ANY ASSEMBLY ****FOR ABI-3450-00, MUST CHOOSE ONE OR THE OTHER *****=NOT INCLUDED IN ABI-3450-23 OR ABI-3400-00 ******=ONLY IN ABI-3400B ASSEMBLY. NOT SOLD SEPARATELY. |
Parts Diagram
NOTE:
*=NOT INCLUDED IN ANY ASSEMBLY. ONLY FOR ’LOCKER’
**=NOT INCLUDED IN ABI-3400B
***=BY REQUEST ONLY. NOT INCLUDED IN ANY ASSEMBLY
****FOR ABI-3450-00, MUST CHOOSE ONE OR THE OTHER
*****=NOT INCLUDED IN ABI-3450-23 OR ABI-3400-00
******=ONLY IN ABI-3400B ASSEMBLY. NOT SOLD SEPARATELY.
Reviews
Super, thx
Verified Purchase
ABI Tab Lock Washer 3225-00
Verified Purchase
Nut, Castle AN310-8
Great job
Verified Purchase
ABI Tab Lock Washer 3225-00
Staff was most helpful isprocessing my order. Everything was great on arrival
Verified Purchase
ABI Spacer 3227-00
As advertisede
Verified Purchase
Nut, Castle AN310-8
Made in Chin....... ugh
Verified Purchase
ABI 1863 Bearing Race Seal
Verified Purchase
Nut, Castle AN310-8
Had to do a little work to get the new ABI dowel pin to fit in my older Scott tailwheel. Operates like new!
Verified Purchase
ABI Dowel Pin 232-046
Its a size AN8 castle nut it will go on the end of the bolt that hold the engine on the mounts its big.
Verified Purchase
Nut, Castle AN310-8
Top-of-the-line couldnt be better. Love Aircraft Spruce and Specialty
Verified Purchase
ABI Wheel Half 3244-00-K
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
3400 weighs 11lbs and 3400B weighs 13lbs.
06-01151 is the tailwheel head with the head bolt, grease zerk, and bearing race installed.
This is a complete tailwheel assembly 10", this replaces the scot 3400. The tailwheel does not include springs.
