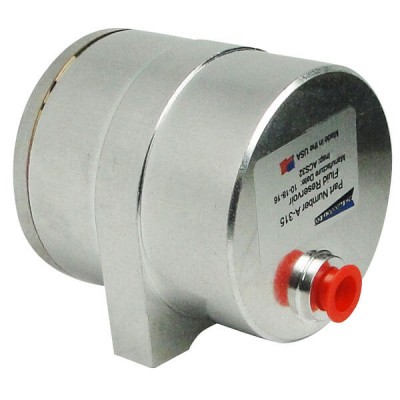

ACS A-315 Brake Reservoir

From $76.85 to $102.75
Prices below incude GST
Description Part Number Price Buy
ACS A-315 Reservoir (Firewall Mounting)
06-00389
$84.53
Quantity
ACS A-315-1 Reservoir (Floor Mounting)
06-00390
$113.03
Quantity
Subtotal $0.00
Add to Wishlist

Overview

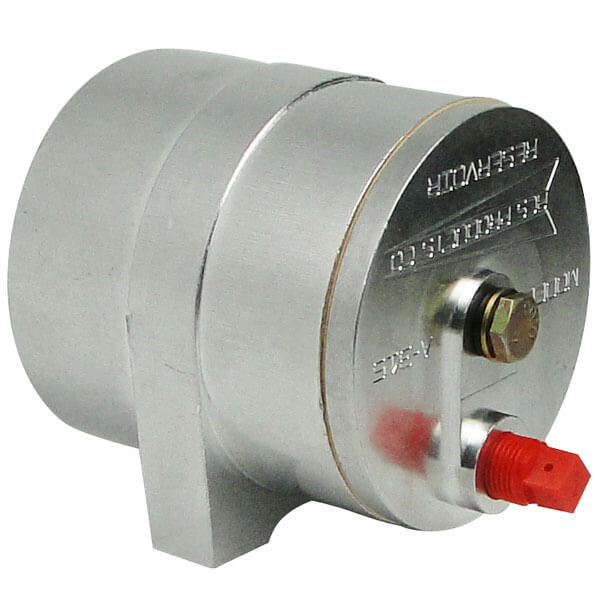

Machined from 6061-T6 billet and anodized for improved corrosion resistance. Available with choice of filler port location for firewall or floor mounting. Capacity 5 oz. Size 2-1/4" dia. x 2-1/2" long. Wt: 7 oz. Specify style.
Made in USA

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What's the difference between a ACS RESERVOIR A-315 and A-315-1? Thanks!

The A-315 is the firewall mounted version and the A-315-1 is the floor mounted version.

Q: Which ACS A-315 reservoir is the firewall type?

That would be the A-315, our part # 06-00389.

Q: How is the firewall reservoir designed to attach to the firewall. Has it been manufactured with threaded holes in the mounting flange? If so, what size screw?

Yes, there are two 10-32 threaded holes on the flange.

Q: What kind of hose connector does this reservoir have?

It does not have connectors, it has female 1/8npt threads. The customer would have to order the correct AN fittings for their application.

Q: Is there any document included with this A-315 reservoir?

This item does not come with any certification paperwork. It is not FAA Approved. Manufacturer C of C can be requested in the shopping cart at time of order.
