Grove 600X6 1-1/4 Inch Diameter Axles

From $119.75 to $149.75
Prices below incude GST
Description Part No. Price Buy
600x6 Axle 1-1/4" diameter
with wheel pant stub.
06-00923
$131.73
Quantity
600x6 Axle 1-1/4" diameter
without wheel pant stub.
06-00924
$164.73
Quantity
Subtotal $0.00
Add to Wishlist

Overview

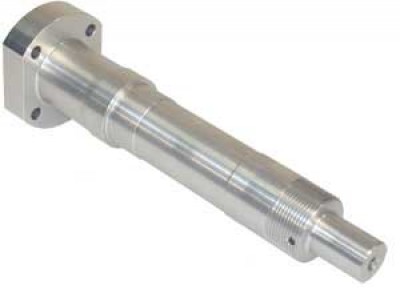

These 1-1/4" diameter axles are designed for Grove 65 series wheels. Axle has built-in wheel pant stub with 1/4-28 thread.

* Diameter: 1-1/4"
* Material: Solid 2024-T3 aluminum with anodized finish
* Type 1 Hole Pattern:
1-15/16" Bolt Circle
1/4" diameter holes
* Axle Weight: 1.12 lbs.
* Static Load Rating 1,250 lbs.
* For use with Grove 65-1, 65-3, 65-5, 65-4, 65-6 and 65-10 wheels.
