Matco Centrifugally Cast Wheels Internal Caliper W51S1.25

$905.30/Pair
Price Includes GST
Part# 06-01960
MFR Model# WHLW51S1.25

Overview

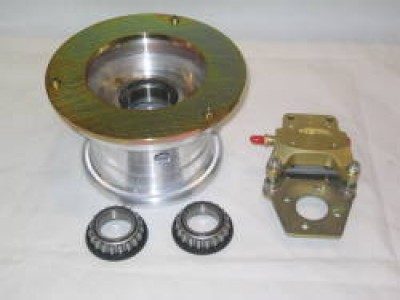

W51S1.25

MATCO mfg produces a superior 5 inch wheel and brake assembly for use with aircraft requiring less than 1420 lbs per wheel. This model uses 1.25 inch TAPER/ROLL bearings. (Check the product comparison table for other bearing and caliper configurations).


Dimensions

The W51S1.25 is a 5 inch wheel with 4.6 inch width with an additional 1.23 inch caliper spacing. Bearing spacing is 2.6 inches and axle spacing is 1.45 inches. The total weight of this wheel and brake assembly is 6.6 pounds. The bearing axle diameter is 1.25 inches.


Performance The W51S1.25 is designed for the following standards:
Static Capacity: 1420 LBS
Load Limit: 4260 LBS
Maximum Accelerate/Stop Kinetic Energy: 189604 ft-lb
Torque Rating (@450 PSI): 1988 in-lb

Product Comparison Table
