Wheel Size |
Popular Application |
Bearing Size |
Tire Used |
Part No. | Price | Buy |
---|---|---|---|---|---|---|
4-inch | W40R | 3/4" roller bearing | Goodyear/McCreary | 06-02210 | $876.70 | |
5-inch | (Lancair) W50S | 1-1/4" x 4.56" axle | Lamb | 06-01660 | $907.50 | |
5-inch | (Vari-Eze) W50L | 1-1/4" x 5.75" axle | Lamb | 06-01860 | $916.30 | |
5-inch | W51S | 1-1/4" x 4.75" axle | Goodyear/McCreary | 06-01960 | $905.30 | |
5-inch | W51L (Mustang IIL) | 1-1/4" x 5.75" axle | Goodyear/McCreary | 06-01710 | $861.30 | |
5-inch | W51LT (High Perf. Cozy MkIV) | 1-1/4" axle 3.084 bearing spc. | Goodyear/McCreary | 06-00079 | $1094.50 | |
6-inch | Falco W60 Requires tube w/bend | 1-1/4" x 4.75" | Any | 06-02160 | $874.50 | |
6-inch | Avid Flyer/Murphy Aviation W62 Req. tube w/bend | axle 3/4" roller bearing | Any | 06-02110 | $876.70 | |
Matco Tube with 90° bend | - | Use with 06-02160 or 06-02110 | - | 06-02111 | $60.34 | |
6-inch Gold Ltwt. | External Caliper Brake | 1-1/4" taper | 600 x 6 | 06-00135 | $953.70 | |
5-inch | Berkut, LongEZ | 1-1/4" | 11.0 x 4.0-5 | 06-00411 | $1080.20 | |
5-inch | W51LXT Glasair III | 1-1/4" | 500-5 | 06-00412 | $1064.80 | |
5-inch | W50LXT | 1-1/4" axle | Lamb | 06-00412-1 | $539.00 | |
6-inch | W600XT, Velocity, Seawind | 1-1/2" | Any 6" Tire | 06-00413 | $1314.50 |

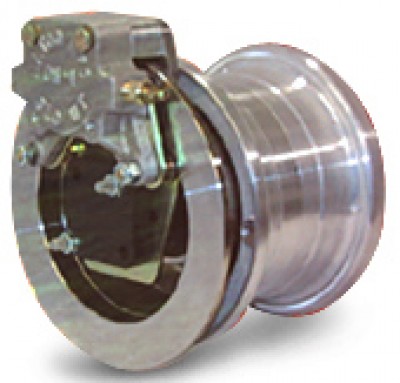

These custom-made, low-profile wheels with hydraulic brakes, are specially designed for light homebuilts. Wheels are cast using Almag 35 (MIL-A-10935, 36, 37), a high purity virgin magnesium-aluminum alloy.
All models are of the same basic design and all kits below include 2 wheels and 2 brakes, ready to install. Average weight is 5.75 lbs. per wheel and wheel width is 4.5". Prices are per set (2 wheels, 2 brakes) Other suppliers offer them individually. |
