Matco Centrifugally Cast Wheels Internal Caliper W600XLt
MFR Model# WHLW600XLT
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

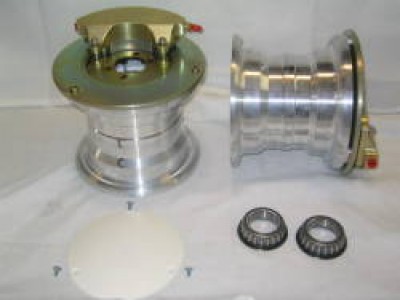

W600XLT MATCO mfg produces a superior 6 inch wheel and brake assembly for use with aircraft requiring less than 1860 lbs per wheel. This model uses 1.50 inch tapered roller bearings. (Check the product comparison table for other bearing and caliper configurations). DimensionsThe WHLW600XLT is a 6 inch wheel with 6.3125 inch width with an additional 1.37 inch caliper spacing. Bearing spacing is 3.42 inches and axle spacing is 1.78 inches. The total weight of this wheel and brake assembly is 11.2 pounds. The bearing axle diameter is 1.50 inches. Features The W600XLT is centrifugally cast utilizing 535 aluminum alloy for superior strength and corrosion resistance. This alloy provides a light weight wheel and affords many years of efficient performance. The W600XLT features the WHLB600XT brake assembly and high energy WHLD2 disc for increased braking performance. (Specify the W600XT when high torque and high energy is desired) The WHLB600XLT brake uses three 1.50 inch diameter pistons in a single caliper to provide maximum torque in a low profile package. This internal caliper design is favored for use in many retractable gear systems for it's low profile compared to external caliper designs when low drag and clean lines are desired. The wheel is designed to use 6.00-6 aircraft style tires as well as any oversized tire since tire clearance is not an issue with the internal caliper design. The WHLA6 axle or WHLAXLE6 axle assembly (includes axle, nut, and washer) are designed to be used with the W600XLT. Performance The W600XLT is designed for the following standards: Static Capacity: 1860 LBS Load Limit: 5580 LBS Maximum Accelerate/Stop Kinetic Energy: 289000 ft-lb Torque Rating (@450 PSI): 6441 in-lb Product Comparison Table |
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These are priced and sold as a pair of wheels.
No, this is made to be used with a tube.
