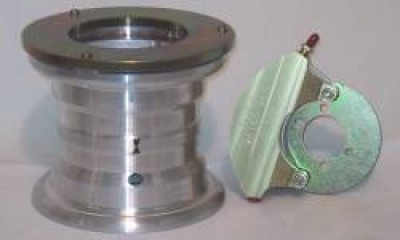

Matco Centrifugally Cast Wheels Internal Caliper W600
MFR Model# WHLW600
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
W600 Benefits The W600 is a 6 inch wheel with 6.3125 inch width with an additional 1.37 inch caliper spacing. Bearing spacing is 3.42 inches and axle spacing is 1.78 inches. The total weight of this wheel and brake assembly is 11.9 pounds. The bearing axle diameter is 1.5 inches. Features The W600 is centrifugally cast utilizing 535 aluminum alloy for superior strength and corrosion resistance. This alloy provides a light weight wheel and affords many years of efficient performance. The W600XT features the WHLB600 brake assembly and high energy WHLD6 disc for increased braking performance. (Specify the W600XT for highest torque applications) The WHLB600 brake uses three 1.25 inch diameter pistons in a single caliper to provide high torque in a low profile package. This internal caliper design is favored for use in many retractable gear systems for it's low profile compared to external caliper designs when low drag and clean lines are desired. The wheel is designed to use 6.00-6 aircraft style tires as well as any oversized tire since tire clearance is not an issue with the internal caliper design. The WHLA6 axle or WHLAXLE6 axle assembly (includes axle, nut, and washer) are designed to be used with the W600. Performance The W600L is designed for the following standards: Static Capacity: 1860 LBS Load Limit: 5580 LBS Maximum Accelerate/Stop Kinetic Energy: 337932 ft-lb Torque Rating (@450 PSI): 4473 in-lb Product Comparison Table |
