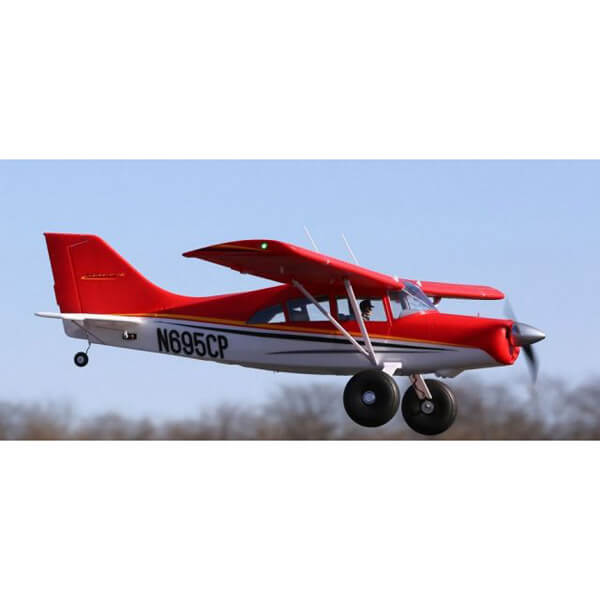

- Photo may represent series and not specific product
- SHARE
Maule Tailwheel Parts List
| Description | Part Number | Price | Buy |
|---|---|---|---|
| Maule Tailwheel Cap Tw-63A | TW-63A | $21.56 | |
| Nut, Elastic Stop MS21083N7 | AN364-720 | $1.85 | |
| Nut, Elastic Stop AN365-720 | AN365-720 | $1.40 | |
| Maule Lock Ring Pin Post 1976 | TW-60AB | $19.25 | |
| Maule Lock Ring Tw-57 | TW-57A | $70.12 | |
| Elas Stop Nut MS21083N04 | AN364-440 | $0.61 | |
| Maule Tailwheel Steering Tw-15A | TW-15A | $292.55 | |
| Maule Bracket Assembly Tw-22A 1-1/4 | 06-16201 | $309.05 | |
| Maule Brackt Assembly Tw-22A 1-1/2 | 06-16202 | $281.55 | |
| Maule Tailwheel Lock Pin Tw-13 | TW-13 | $54.67 | |
| Maule Tailwheel Spring Tw-14 | TW-14 | $11.55 | |
| Maule Tailwheel Plate Tw-12 | TW-12 | $21.84 | |
| Machine Screw MS35206-217 | MS35206-217 | $0.07 | |
| Maule Tailwheel Cam Tw-10 | TW-10 | $62.65 | |
| Fillister Head Screw AN501-10-4 | AN501-10-4 | $0.42 | |
| Maule Tw-59A Bearing 7/8 Id | TW-59A | $75.62 | |
| Cotter Pin AN380-3-3 | AN380-3-3 | $0.15 | |
| Maule Screw | TW-A18 | $0.28 | |
| Maule Tailwheel Ref. # Tw-27 | TW-27 | $58.03 | |
| Nut, Shear AN320-8 | AN320-8 | $3.00 | |
| Maule Tire 6.50 X 2.50 # Tw-23 | TW-23 | $394.90 | |
| Maule Tail Tire With Bear Tw-23A | TW-23A | $499.40 | |
| Maule TW101 Wheel Bearing F350-12, Tw-3/A15 | TW-A15 | $50.44 | |
| Maule Tailwheel Washer Tw-28 | TW-28 | $3.74 | |
| Maule Tailwheel Felt Tw-26 | TW-26 | $5.12 | |
| Maule Tailwheel Tw-64 Washer | TW-64 | $7.65 | |
| Maule Fork With Axle Tw-58A-1 | TW-58A-1 | $269.44 | |
| Maule Axle With Sirclip Tw-6 | TW-5 | $109.73 | |
| Maule Sirclip Ring Tw-6 | TW-6 | $13.75 | |
| Maule Cup & Cone Bearing | TW-A7 | $196.84 | |
| Maule Inside Hb With Bearng Tw-30 | TW-30 | $465.30 | |
| Maule Outside Hub Tw-31 | TW-31 | $237.55 | |
| Maule Washer | TW-A6 | $1.85 | |
| Washer MS35338-45 (AN935-516) | AN935-516 | $0.09 | |
| Maule Tailwheel Tw-32 Hub Cap | TW-32 | $54.45 | |
| Maule T-Wheel Tw-33 Sirclip | TW-33 | $11.61 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
| Maule Tailwheel Parts List |
Reviews
These are hardened steel cams. The first one we purchased broke into like a potato chip. The replacement was fine, but we were careful to tighten each screw equally back-and-forth until the final torque was achieved. Make sure you use proper filister head screws to fasten the cam to the tail wheel housing. Finally put a thin film of grease on the outside of the cam where the release roller slides over the cam.
Verified Purchase
Maule Tailwheel Cam Tw-10
The first one received snapped in half when installing. Apparently they are heat treated and I suggest you tighten screw evenly. Spruce replace the broken part quickly and hassle free.
Verified Purchase
Maule Tailwheel Cam Tw-10
Good quality
Verified Purchase
Maule Tailwheel Felt Tw-26
Good quality
Verified Purchase
Maule Sirclip Ring Tw-6
as described
Verified Purchase
Machine Screw MS35206-217
Part fit on my old J3 tailwheel. Press fit. Solid attach.
Verified Purchase
Maule Tailwheel Cap Tw-63A
All good.
Verified Purchase
Maule Tw-59A Bearing 7/8 Id
Reasonably priced, good quality-
Verified Purchase
Maule Tw-59A Bearing 7/8 Id
The precision of this pin is critical to the operation of the locking ring. If the pin doesn’t fully engage the potential to go for a wild ride exists. Wear is typically the culprit -either a shortened pin or a score that hangs up travel in the slot. Thankfully ACS has these is stock to keep us flying.
Verified Purchase
Maule Tailwheel Lock Pin Tw-13
Fit without reeming. I drilled a hole for the grease to go through
Verified Purchase
Maule Tw-59A Bearing 7/8 Id
