- Photo may represent series and not specific product
- SHARE

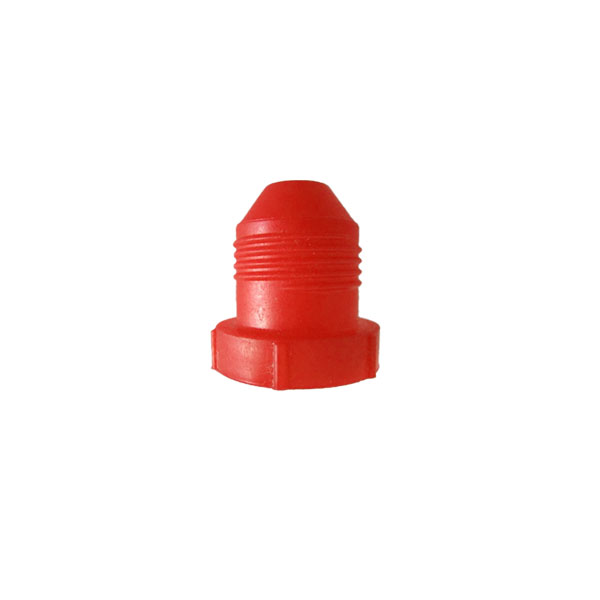

Cap Plugs Pd-100
MFR Model# PD-100/.111
|
Part No. | OEM PN | Plug Nominal Tubing Size | Thread |
|---|---|---|---|
| 04-00029 | PD-100 | 5/8" | 7/8-14 |
Overview
|
Series PD Plugs, designed for use on flared JIC fittings, air knurled for ease of application. They will seal low pressure requirements with light finger tightening. PD plugs can be used to seal 37° flare fittings without gaskets Less 20% Discount on 50 Caplugs (Same P/N) |
Specifications
| PN | OEM PN | Plug Nominal Tubing Size (in.) | Thread | Dim B (in.) | Dim C (in.) | Dim D (in.) |
|---|---|---|---|---|---|---|
| 04-03007 | PD-20 | 1/8 | 5/16-24 | .44 | .44 | .18 |
| 04-00023 | PD-30 | 3/16 | 3/8-24 | .46 | .50 | .18 |
| 04-00024 | PD-40 | 1/4 | 7/16-20 | .53 | .62 | .19 |
| 04-00025 | PD-50 | 5/16 | 1/2-20 | .53 | .68 | .25 |
| 04-00026 | PD-60 | 3/8 | 9/16-18 | .50 | .81 | .25 |
| 04-00027 | PD-65 | 3/8 | 5/8-18 | .59 | .81 | .25 |
| 04-00028 | PD-80 | 1/2 | 3/4-16 | .75 | .94 | .25 |
| 04-00029 | PD-100 | 5/8 | 7/8-14 | .87 | 1.06 | .25 |
| 04-03526 | PD-120 | 3/4 | 1 1/16-12 | .89 | 1.25 | .25 |
| 04-00030 | PD-121 | 3/4 | 1 1/16-14 | 1.12 | 1.31 | .25 |
| 04-00031 | PD-160 | 1 | 1 5/16-12 | .93 | 1.50 | .25 |
Reviews
Verified Purchase
Cap Plugs Pd-100
Caplugs are Caplugs but the best thing is that I didnt gave to buy 200, which is the smallest amount that Caplugs and most dealers sell. To boot, these are an unusual type which makes finding them sold individually even better. I think its cool that Aircraft Spruce doesnt have a minimum order or some other barrier that quite a few suppliers have. If I had to buy 200 (or more) of every type of fitting I use, my shop would be overflowing with stuff! Many thanks to Aircraft Spruce.
Caplugs are Caplugs but the best thing is that I didnt gave to buy 200, which is the smallest amount that Caplugs and most dealers sell. To boot, these are an unusual type which makes finding them sold individually even better. I think its cool that Aircraft Spruce doesnt have a minimum order or some other barrier that quite a few suppliers have. If I had to buy 200 (or more) of every type of fitting I use, my shop would be overflowing with stuff! Many thanks to Aircraft Spruce.
Quick efficient service (as usual). Order was delivered exactly as it was placed, exactly when it was promised.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part # 04-00026 should be correct 3/8 flare, 9/16-18 thread.
