- Photo may represent series and not specific product
- SHARE
Elastic Grommet Assort With Cabinet
- JUMP TO
- Overview
- Reference Chart
- Reviews
- Q&A
Overview
|

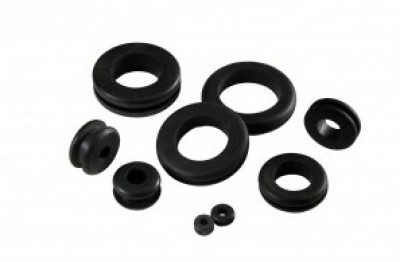

Flexible grommets, made of black synthetic rubber to specification 23 different sizes (270 pieces) in each kit. |
Reference Chart
| PN | MS35489 | ID | OD | Hole Size | Thickness | Quantity |
|---|---|---|---|---|---|---|
| AN931-2-9 | -2 | 1/8 | 3/4 | 9/16 | 3/16 | 15 |
| AN931-2-16 | -3 | 1/8 | 1-1/4 | 1 | 1/4 | 5 |
| AN931-3-5 | -4 | 3/16 | 7/16 | 5/16 | 3/16 | 20 |
| AN931-3-9 | -134 | 3/16 | 3/4 | 9/16 | 3/16 | 15 |
| AN931-4-7 | -6 | 1/4 | 5/8 | 7/16 | 3/16 | 20 |
| AN931-4-12 | -7 | 1/4 | 1 | 3/4 | 1/4 | 20 |
| AN931-4-16 | -8 | 1/4 | 1-1/4 | 1 | 1/4 | 5 |
| AN931-5-9 | -9 | 5/16 | 13/16 | 9/16 | 5/16 | 20 |
| AN931-5-12 | -10 | 5/16 | 1 | 3/4 | 5/16 | 15 |
| AN931-6-10 | -11 | 3/8 | 7/8 | 5/8 | 5/16 | 20 |
| AN931-6-16 | -12 | 3/8 | 1-1/4 | 1 | 1/4 | 20 |
| AN931-7-11 | -13 | 7/16 | 15/16 | 11/16 | 5/16 | 10 |
| AN931-8-13 | -14 | 1/2 | 1-1/16 | 13/16 | 5/16 | 20 |
| AN931-8-20 | -15 | 1/2 | 1-1/2 | 1-1/4 | 1/4 | 10 |
| AN931-9-13 | -16 | 9/16 | 1-1/16 | 13/16 | 5/16 | 5 |
| AN931-10-14 | -17 | 5/8 | 1-1/8 | 7/8 | 5/16 | 15 |
| AN931-10-20 | -18 | 5/8 | 1-1/2 | 1-1/4 | 1/4 | 5 |
| AN931-11-16 | -19 | 11/16 | 1-5/16 | 1 | 3/8 | 5 |
| AN931-12-17 | -20 | 3/4 | 1-3/8 | 1-1/16 | 3/8 | 10 |
| AN931-12-20 | -135 | 3/4 | 1-5/8 | 1-1/4 | 1/4 | 5 |
| AN931-12-23 | -21 | 3/4 | 1-13/16 | 1-7/16 | 3/8 | 5 |
| AN931-14-20 | -22 | 7/8 | 1-5/8 | 1-1/4 | 7/16 | 5 |
| AN931-16-22 | -23 | 1 | 1-3/4 | 1-3/8 | 7/16 | 5 |
Reviews
This is a great kit to have. The original complete kit comes with a greater number of more common grommets which works out well. There was not a size we needed which was not present in the original kit. Replacements are easily ordered by the individual part number.
Verified Purchase
Elastic Grommet Assort With Cabinet
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The only difference is the cabinet. Part number 04-01534 includes a cabinet for storage and part number 04-01535 is only the grommet assortment.
The "with cabinet" version includes cabinet part # 04-01465.
No, the 04-01535 kit does not come with an organizer.
