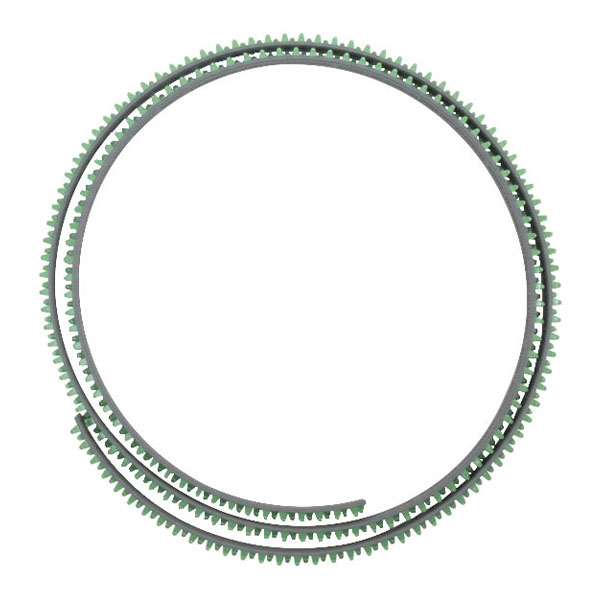

Grommet Edging M22529/2-2R

$7.65/Foot
Price Includes GST
Part# 05-00675
MFR Model# M22529/2-2R-25
MFG NumberSheet
Thickness
Part
No.
Buy 25 Ft. Roll
M22529/2-2R.036-.06305-00675--

Overview

Mil Spec qualified Spring-Fast is the fastest, safest, most reliable way to protect wires, cables, and tubing from abrasion. It locks on with finger pressure in seconds, eliminating solvents, adhesives, ancillary materials and volatile organic compound (VOCs). Installs continuously and is very flexible for use on straight edges and sharp inside and outside corners.

Spring-Fast® Composite Grommet Edging covers sharp edges of panels that come in contact with wite and cables and mechanically lock on indefinitely with finger pressure in only seconds per foot. They provide a significant time reduction in assemblies. A long-term reliability solution that replaces nylon caterpillar plastic grommets and associated solvents, adhesives, and ancillary materials to protect critical equipment from failure due to wire chaffing.

Spring-Fast® Grommet Edging is approved by the FAA and U.S. Department of Defense per NASM 22529/a and NASM 22529/2 for all aircraft applications. Meets FAR 25.853 for flammability and MIL 1344 for shock and vibration. Spring-Fast® is available for 8 different sheet thickness ranges from 0.025 to 0.260 and can be purchased in either 10 piece packs of 12.75" long pieces, or by the foot. Use Spring-Fast® BAP and SL series for flanged lightning hole and three-axis contours. The BAP Series Flexi-Grommet is perfect for roll formed edges and small lightening holes. Where wires are routed in the same plain as the sheet metal, the Spring-Fast® SL Series provides a trim characteristic for all edges with or without cabling nearby.

Spring-Fast® is used in a wide variety of aviation and aerospace applications:
• Lightening Holes
• Wing Sections
• Seating
• Intercostals
• Fuselage
• Avionics
• Bulkheads
• Air Traffic Control
• Racks • Tail Sections
• Tactical Satellite Emulators
• Ferrules
• Navigation Systems
• Electrical Power Centers
• Ground Control
• EAU (Electrical Avionic Units)
• PSU (Personal Safety Units)
• APU (Auxiliary Power Units)
• IFE (In-Flight Entertainment)

Specifications

  • Temperature Range -40ºF to 185ºF (-40ºC to 85ºC)
  • Voltage Breakdown 60 Hz 1500 V
  • Flammability FAR 25.601, FAR 25.853
  • MIL-STD-202F
  • Random Shock and Vibration MIL-STD-1344
  • Salt Spray Testing MIL-STD-202F

Documents

Reviews

Works as advertised, easy to use.

Jim L Verified Purchase

Grommet Edging M22529/2-2R

May 25, 2024

Innovative design. Grips well and gives me the protection I need.

Alan G Verified Purchase

Grommet Edging M22529/2-2R

March 16, 2024

This edging has a metal base that clips onto the skin edge with a polymer lining outside. Was not quite what I expected as I normally use the full polymer version to avoid metal to metal contact. Looks high quality though.

Louis S Verified Purchase

Grommet Edging M22529/2-2R

January 5, 2024

Very cool concept. Doesnt work if holes are flanged, straight cut only.

Norman A Verified Purchase

Grommet Edging M22529/2-2R

December 29, 2021

Charles W Verified Purchase

Grommet Edging M22529/2-2R

September 30, 2021

Great stuff, way better than the plastic alligator grommet

Gary S Verified Purchase

Grommet Edging M22529/2-2R

August 3, 2021

Worked great!

Amanda
May 8, 2021

I installed this on my wood chippers sheet metal engine housing. To line the through hole to prevent chaffing on the air filter housing tube. Took less than 10 min without disassembly. It rides the edge with minimal clearance and stays in place nicely.

Alman G
December 2, 2020

Great product! Perfect for lightening holes to prevent chaffing of hoses and wiring that passes through.

Tom M
November 16, 2020

Excellent product. Works as advertised. Will purchase additional material in appropriate sizes.

Byers C
October 9, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What part of the grommet edging does the sheet thickness refer to?

This is the thickness of the material you are putting the grommet edging on.

Q: My part requirement is M22529/2-1. Will the part with an R in the end work? What does the added R in this part stand for?

"R" means the material is cut from a reel/roll.
