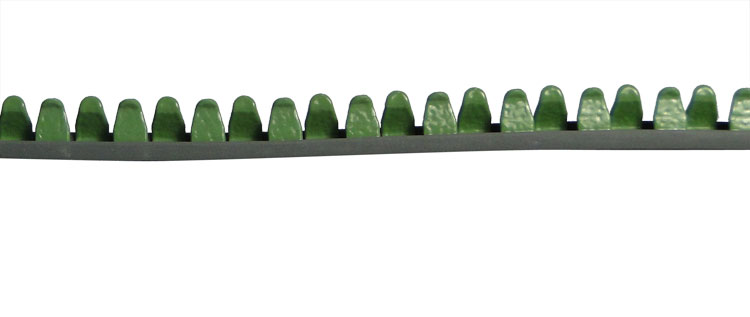

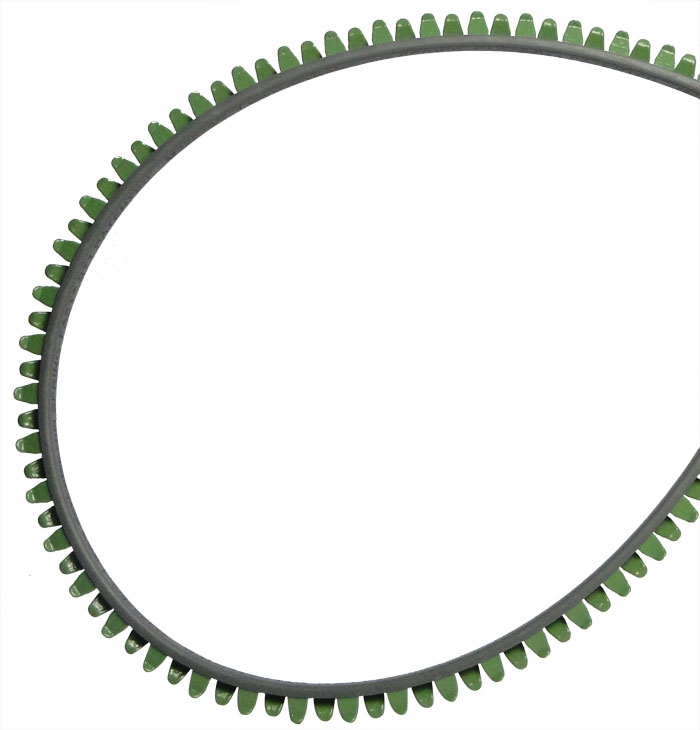

Grommet Edging - M22529/2 Series

From $6.95 to $210.95
Prices below incude GST
MFG Number Sheet
Thickness
Part
No.
Buy / Ft. Buy / 10 Pk Buy 25 Ft. Roll
M22529/2-1R.025-.036
05-00673
$7.65
Quantity
$81.12
Quantity
$161.43
Quantity
M22529/2-2R.036-.063
05-00675
$7.65
Quantity
$78.93
Quantity
--
M22529/2-3R-25.059-.074
05-00677
$7.65
Quantity
$78.93
Quantity
$175.84
Quantity
M22529/2-4R.070-.093
05-00679
$8.25
Quantity
$82.23
Quantity
$196.74
Quantity
M22529/2-5R.090-.111
05-00681
$8.25
Quantity
--$190.03
Quantity
M22529/2-6R.105-.134
05-00683
$8.25
Quantity
----
M22529/2-7R.178-.198
05-00685
$9.41
Quantity
--$216.43
Quantity
M22529/2-8R.240-.260
05-00688
$9.85
Quantity
--$232.05
Quantity
Subtotal $0.00
Add to Wishlist

Overview

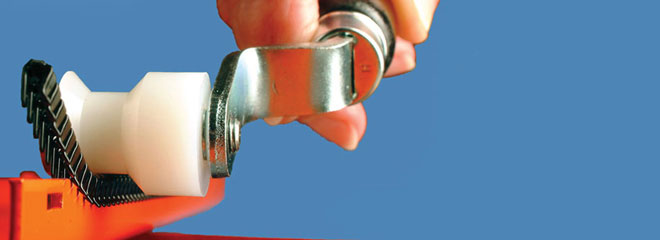

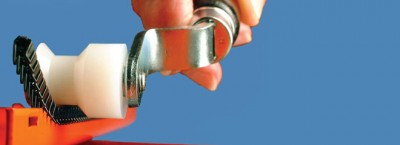

Mil Spec qualified Spring-Fast is the fastest, safest, most reliable way to protect wires, cables, and tubing from abrasion. It locks on with finger pressure in seconds, eliminating solvents, adhesives, ancillary materials and volatile organic compound (VOCs). Installs continuously and is very flexible for use on straight edges and sharp inside and outside corners.

Spring-Fast® Composite Grommet Edging covers sharp edges of panels that come in contact with wite and cables and mechanically lock on indefinitely with finger pressure in only seconds per foot. They provide a significant time reduction in assemblies. A long-term reliability solution that replaces nylon caterpillar plastic grommets and associated solvents, adhesives, and ancillary materials to protect critical equipment from failure due to wire chaffing.

Spring-Fast® Grommet Edging is approved by the FAA and U.S. Department of Defense per NASM 22529/a and NASM 22529/2 for all aircraft applications. Meets FAR 25.853 for flammability and MIL 1344 for shock and vibration. Spring-Fast® is available for 8 different sheet thickness ranges from 0.025 to 0.260 and can be purchased in either 10 piece packs of 12.75" long pieces, or by the foot. Use Spring-Fast® BAP and SL series for flanged lightning hole and three-axis contours. The BAP Series Flexi-Grommet is perfect for roll formed edges and small lightening holes. Where wires are routed in the same plain as the sheet metal, the Spring-Fast® SL Series provides a trim characteristic for all edges with or without cabling nearby.

Spring-Fast® is used in a wide variety of aviation and aerospace applications:
• Lightening Holes
• Wing Sections
• Seating
• Intercostals
• Fuselage
• Avionics
• Bulkheads
• Air Traffic Control
• Racks • Tail Sections
• Tactical Satellite Emulators
• Ferrules
• Navigation Systems
• Electrical Power Centers
• Ground Control
• EAU (Electrical Avionic Units)
• PSU (Personal Safety Units)
• APU (Auxiliary Power Units)
• IFE (In-Flight Entertainment)

Specifications

  • Temperature Range -40ºF to 185ºF (-40ºC to 85ºC)
  • Voltage Breakdown 60 Hz 1500 V
  • Flammability FAR 25.601, FAR 25.853
  • MIL-STD-202F
  • Random Shock and Vibration MIL-STD-1344
  • Salt Spray Testing MIL-STD-202F

Documents

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Good stuff to keep wires from chaffing on metal edges

Thomas S Verified Purchase

Grommet Edging M22529/2-1R

September 30, 2024

Works as advertised, easy to use.

Jim L Verified Purchase

Grommet Edging M22529/2-2R

May 25, 2024

Very useful for protecting wires, control cables, hoses where they pass within close range of sheet metal according to the standards of 43.13

Chad P Verified Purchase

Grommet Edging M22529/2-4R

May 3, 2024

Innovative design. Grips well and gives me the protection I need.

Alan G Verified Purchase

Grommet Edging M22529/2-2R

March 16, 2024

Innovative design. Grips well and gives me the protection I need.

Alan G Verified Purchase

Grommet Edging M22529/2-4R

March 16, 2024

This edging has a metal base that clips onto the skin edge with a polymer lining outside. Was not quite what I expected as I normally use the full polymer version to avoid metal to metal contact. Looks high quality though.

Louis S Verified Purchase

Grommet Edging M22529/2-2R

January 5, 2024

Solid products!

Michael M Verified Purchase

Grommet Edging M22529/2-3R

January 20, 2023

Great product!

Boyd E Verified Purchase

Grommet Edging M22529/2-1R

June 29, 2022

Much better than the older nylon style. This one grabs the opening and protects the wire bundle. Very pleased

Spindel S Verified Purchase

Grommet Edging M22529/2-1R

May 10, 2022

Very cool concept. Doesnt work if holes are flanged, straight cut only.

Norman A Verified Purchase

Grommet Edging M22529/2-2R

December 29, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What part of the grommet edging does the sheet thickness refer to?

This is the thickness of the material you are putting the grommet edging on.

Q: My part requirement is M22529/2-1. Will the part with an R in the end work? What does the added R in this part stand for?

"R" means the material is cut from a reel/roll.
