3/8FemX3/8Fem Fuelval/4-Port

$41.25/Each
Price Includes GST
Part# 05-01034
MFR Model# 200-CN
Part No.Imperial Equiv.Valve TypePipe Thread
05-01034114HD-064-Port**3/8" Female x 3/8" Female

Overview

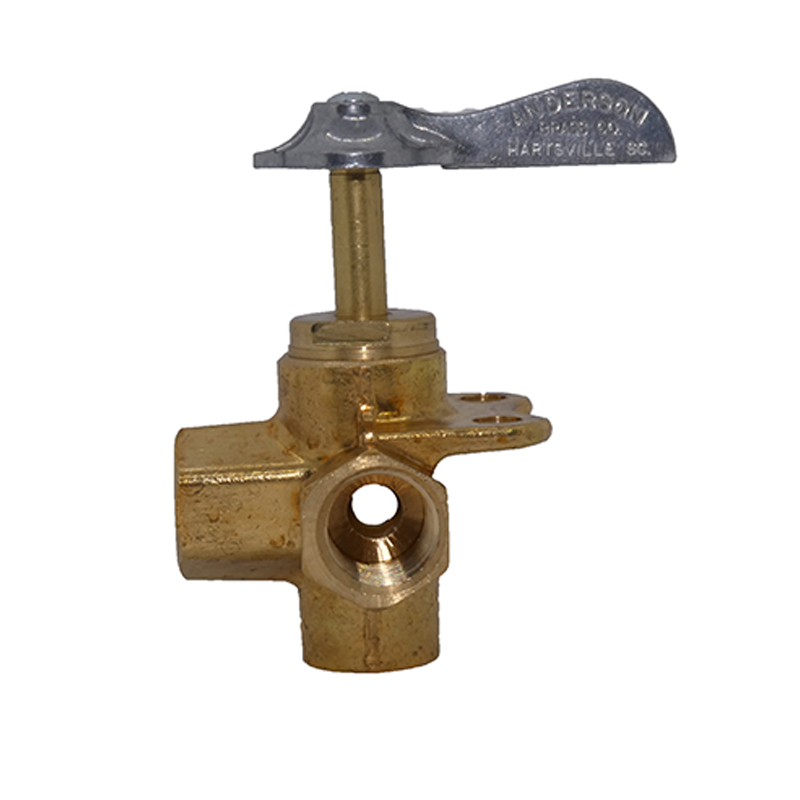

A full-flow plug valve with solid bottom and integral mounting bracket. Brass body and plug. Floating stem with O-ring prevents leakage. Packed with synthetic grease which resists gasoline and solvents. Indicating click on 3-port and 4-port valve (CN models) tells when handle is in full open or closed position. Tested to 30 PSI. Not FAA approved. *For 2 tanks. Flow is from either side to branch. **For 3 tanks. Flow is from any side to bottom outlet. Note: Order valve with 1/4" pipe threads for 3/8" dia. fuel line. Order valve with 3/8" pipe threads for 1/2" dia. fuel line. These pipe thread sizes are the ones normally associated with the indicated tube sizes.

* For 2 tanks. Flow is from either side to branch.
** For 3 tanks. Flow is from any side to bottom outlet.
Note: Order valve with 1/4" pipe threads for 3/8" dia. fuel line. Order valve with 3/8" pipe threads for 1/2" dia fuel line. These pipe thread sizes are the ones normally associated with the indicated tube sizes.

Reviews

We used this in an Aeronca 7ac champ for the main fuel tank. We put brass plugs in the other two ports which are available if we install wing tanks. We have only installed it so far but it appears to be a good quality fuel selector.

John C
July 7, 2020

Great part. Excellent service.

Brian
June 17, 2018

A reasonably priced fuel selector but after several installations (5) we have come across a few slow leaks. This can be in part due to the housing being slightly loose, ..easy fix (big nut - but dont over tighten), or by installing it into a dirty system whereas small contaminants are chaffing the plastic ball in the housing and over time allowing for fuel bypass.

Aerial E
May 2, 2019

The stem for the handle is too short for my airplane. Didnt see in the specs where the length of the stem is shown. Other than that, seems like a well-built valve

Raymond F
September 19, 2018

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: In your catalog you show an additional valve (P/N 05-02672). Is this valve still available? Is it comparable to the Weatherhead Fuel shut off valve (P/N 6749)? Thanks, Isaac Warner

The 05-02672 was a duplicate part number of 6749. They are the same unit.

Q: Fuel ShutOff Valve P/N: 05-01032 (Pipe Thread 3/8 X 3/8 Female) is compatible with Nipple P/N:AN816-6D?

You would want to use AN816-6-6D.

Q: Does the 4 port model have an off selection?

Yes, this valve does have an off selection by turning the pointer towards the mounting holes. This will create no flow through the valve.

Q: Do any of these valves have a Both selection or are they only left-right-off? Thanks.

The Homebuilder's shut-off valves will not have a "both". Please take a look at P/N# 05-21697 or take a look at the FS20 series Andair valves as these will have a "both" position.

Q: Does the part # 05-01032 have a detent to provide feedback when the valve is in the elected position?

The valve does make a click when the position is changed. You can feel it click into position and you have to apply force to move it out to the next position.

Q: Order 3/8 pipe threads for1/2 diameter fuel line. Is that OD or ID for rubber fuel line?

You would order the 3/8th fuel selector and then something like an AN840-8 or 8D for 1/2" ID fuel lines.

Q: Does the three port valve have an off position like the 4 port valve?

Yes, it does.

Q: What is the replacement part # for the O-ring mentioned in the Overview section?

These are not rebuildable. New valve will need to replace the old valve if damaged or not working.

Q: Do you carry replacement screw that attaches the handle?

Our part number NAS387-832-8P will work.

Q: The overview mentions a brass body and plug. Does it come with a plug for a one a tank setup. If not what plug is needed.

The "Plug" is the internal mechanism that the handle is attached to. You could use part number an814-6 or 6D to plug off one of the ports.
