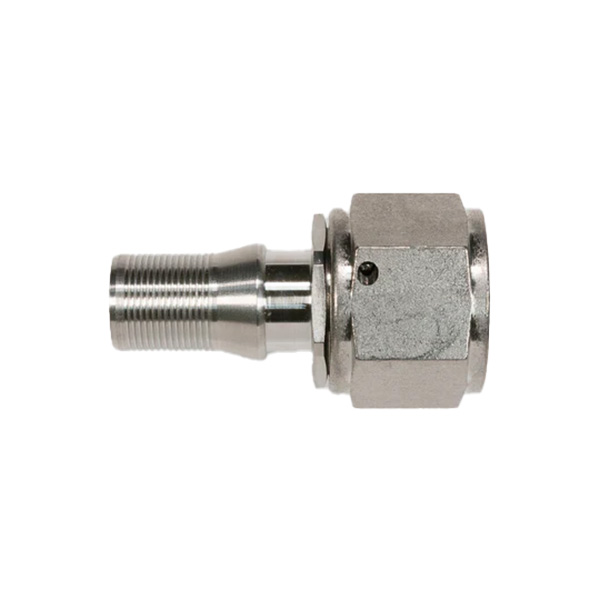

- Photo may represent series and not specific product
- SHARE
Eaton Nipple Assembly AE21496J
$85.64/Piece
Price Includes GST
Part# 05-11826
MFR Model# AE21496J
MFR Model# AE21496J
Overview
|
Compression crimp fittings are available in both flared and flareless types to mate with (AS4395) and (AS4375) end connections. In addition, elbow fittings are available in standard 45° and 90° styles. Special elbows, crosses, tees, wyes, adapters, bosses, etc. may be made for customer installations. The unique combination of the “ramped” nipple and the crimping pattern used on the compression crimp fitting results in superior fitting retention under pressure. Burst pressure tests indicate that extreme pressures will result in “free hose” bursts rather than fitting blow-off. The fitting design effectively traps and holds the wire reinforcement of the hose in the area of the ramp on the fitting nipple. Works with AE21498 Socket, see Accesories tab for part number, (letter size code same as nipple assembly). |
Specifications
| AEROQUIP | THREAD SIZE | THREAD | MAX DIM A | DIM B | DIM C | MIN I.D. | FTG WT (LB) |
| AE21496B | -3 | 0.4375-20 UNJF-3B | 1.12 | 0.25 | 0.37 | 0.132 | 0.05 |
| AE21496E | -4 | 0.3750-24 UNJF-3B | 1.12 | 0.24 | 0.34 | 0.09 | 0.039 |
| AE21496F | -5 | 0.5000-20 UNJF-3B | 1.26 | 0.31 | 0.38 | 0.193 | 0.065 |
| AE21496G | -6 | 0.5625-18 UNJF-3B | 1.37 | 0.34 | 0.38 | 0.256 | 0.078 |
| AE21496H | -8 | 0.7500-16 UNJF-3B | 1.53 | 0.44 | 0.43 | 0.34 | 0.137 |
| AE21496J | -10 | 0.8750-14 UNJF-3B | 1.75 | 0.56 | 0.5 | 0.43 | 0.191 |
| AE21496K | -12 | 1.0625-12 UMJF-3B | 1.96 | 0.46 | 0.57 | 0.548 | 0.297 |
| AE21496M | -16 | 1.3125-12 UNJF-3B | 2.32 | 0.6 | 0.6 | 0.778 | 0.464 |
Documents
Reviews
The chart is wrong for size. Check the data sheet before purchase. E and B are swapped
Glenn
March 15, 2023
