Swift 2-1/4 Altimeter 0-10K Foot 1 Pointer Baro Mb Inhg

$262.85/Each
Price Includes GST
Part# 10-06284
MFR Model# ALT2-10F1
Model NumberDescriptionRemarksPart Number
ALT2-10F110,000 FT 1 PointerBarometric unit switchable: mb/inHg10-06284

Overview

Patent product, Integrates the highly reliable MEMS sensor Precise, Durable, Accurate (reading), free from frequent regular calibration.

  • Large measurement range: up to 13,000 m (42,000 ft);
  • Barometric unit can be switched between mmHg/inHg/mb;
  • Precise indication: long pointer rotation a circle represents 100 meters in a 3 pointers 10000m model;
  • Easy adjustment: adjust barometric pressure via button instead of knob, simple and straightforward;
  • Digital-displayed barometric pressure with big and clear digits and adjustable lightness;
  • Error can be corrected: no need to be returned to the manufacturer or checked with a specific instrument. After years, when the pressure-sensitive component in the indicator appears small drift, the indication error can be corrected;
  • Super simplified variety and specification, thanks to features including high precision, large range via the sensor and switchable barometric unit.

Specifications

  • Size: 2 1/4"
  • Install Depth: 66mm
  • Power Supply: 9~30VDC
  • Weight: 130 g

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Great product!

Darryl K
July 10, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will the ALT2-5F1 5,000 FT single-pointer continue to function in any way without 12v power? Also, does the unit continue to show altitude beyond 5,000 ft by going around the dial again?

No. This unit requires 12V in order to function and 5000 FT. will be it's max altitude.

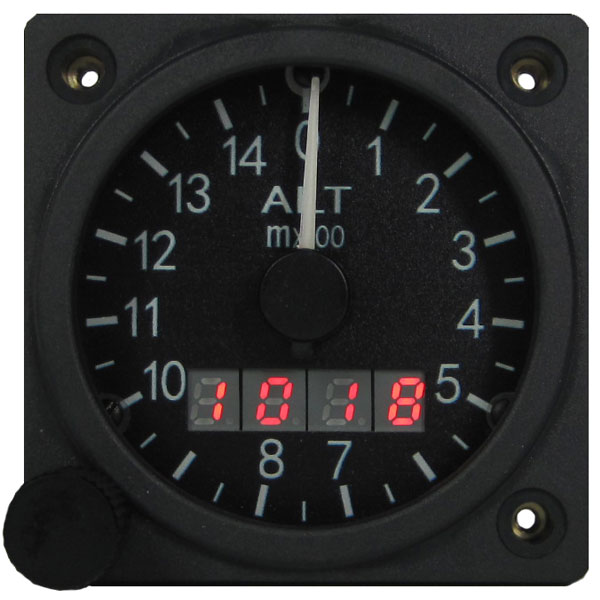

Q: the ALT2-10F1 model says it max altitude is 10k ft. But the face goes up past 14k Can you explain?

That is a stock photo for the series, the actual unit on part# 10-06284 only goes to 10k.
