TCW Control Valve Servo Kit
MFR Model# CVS-12V-KIT
Overview
|

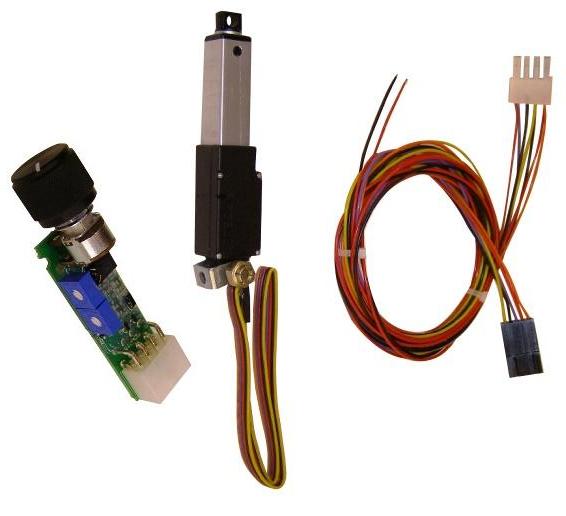

The TCW Control Valve Servo Kit is a system for controlling valves and dampers such as those used to select cabin heat or ventilation or control air flow through oil coolers or radiators. The CVS kit includes an instrument panel mounted controller, a travel linear actuator servo and a pre-made 5-foot wiring harness. The controller provides fully proportional operation of the linear actuator servo, allowing the motion of the attached valve or damper to be selected at any position from fully opened to fully closed. Additionally, the CVS system may be coupled to an optional butterfly valve (3 or 4 available) for controlling the flow of cooling air through an oil cooler assembly. The standard kit includes a 1.2 oz Servo with a 30 mm travel linear actuator servo and a pre-made 5-foot wiring harness. The Heavy-Duty kit includes a 1.4 oz Servo with a 50 mm travel linear actuator servo and pre-made 5-foot wiring harness. The Standard Kit should be used with Vans RV Heater Valves and TCW butterfly valves. |
Specifications
| CVS-12V-KIT | CVS-12V-KIT-HD | CVS-24V-KIT | CVS-24V-KIT-HD | |
|---|---|---|---|---|
| Input Voltage: | 10 15 volts DC | 10 15 volts DC | 22 30 volts DC | 22 30 volts DC |
| Input Current: | 0.5 amp | 0.5 amp | 0.1 amp | 0.1 amp |
| Servo: | 30 mm max travel | 50 mm max travel | 30 mm max travel | 50 mm max travel |
| Max Drive Force: | 2.5 lbs. | 10 lbs. | 2.5 lbs. | 10 lbs. |
| Max Holding Force: | 10 lbs. | 40 lbs. | 10 lbs. | 40 lbs. |
| Temperature Range: | -30° C to 70° C | -30° C to 70° C | -30° C to 70° C | -30° C to 70° C |
| Weight: | Servo: 1.1 oz. Controller 1.0 oz. | Servo: 1.1 oz. Controller 1.0 oz. | Servo: 1.1 oz. Controller 1.0 oz. | Servo: 1.1 oz. Controller 1.0 oz. |
Documents
Reviews
Verified Purchase
TCW Control Valve Servo Kit
Verified Purchase
TCW Control Valve Servo Kit
Installed but still in the build stage so it will be a year before I fly. They work well. I’m just concerned about the long term use as they will be exposed to vibration and heat mounted on the firewall. Time will tell. A lot of money for what you get.
Verified Purchase
TCW Control Valve Servo Kit
Documentation is lacking for oil cooler butterfly valve. Figures in instruction only show heater box. Wiring connectors will have to be removed if your routing thru firewall. Would be better if supplied harness came with connectors not installed.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, it cannot operate two actuators at once.
Per the manufacturer: The controller provides fully proportional operation of the linear actuator servo, allowing the motion of the attached valve or damper to be selected at any position from fully opened to fully closed.
