AeroLEDs Sunspot 46-4580 Hx Landing Light With Pulse - 28V FAA-PMA

$1211.10/Each
Price Includes GST
Part# 11-17134
MFR Model# 01-2230-4580-H

Overview

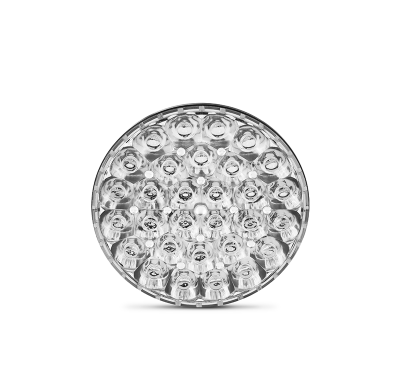

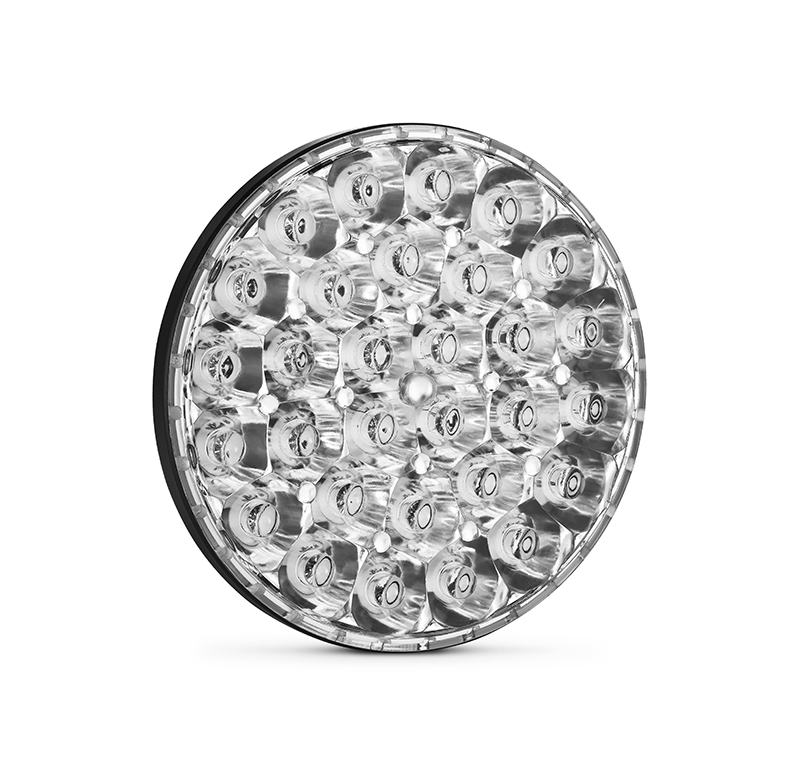

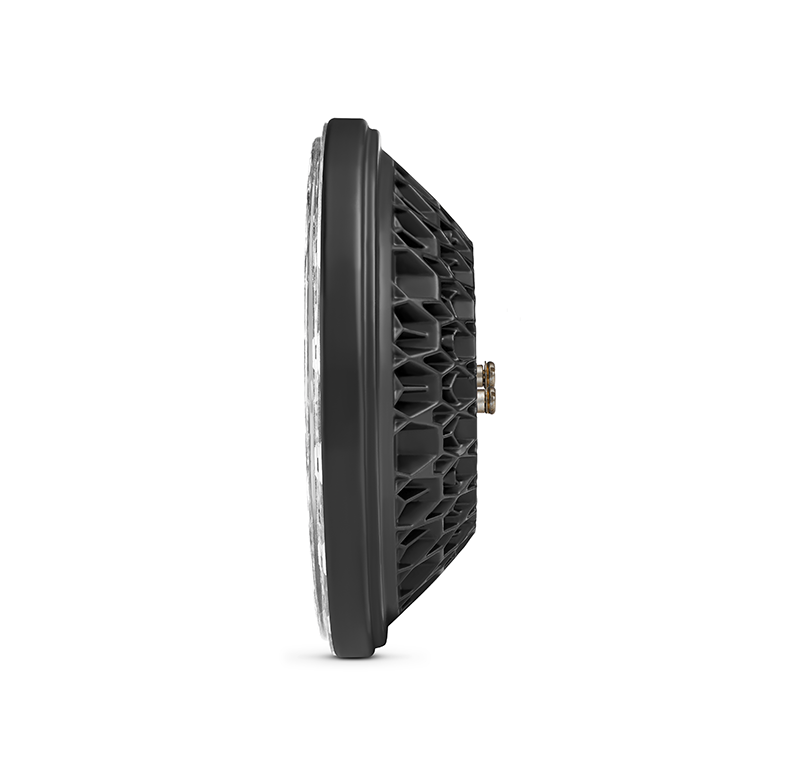

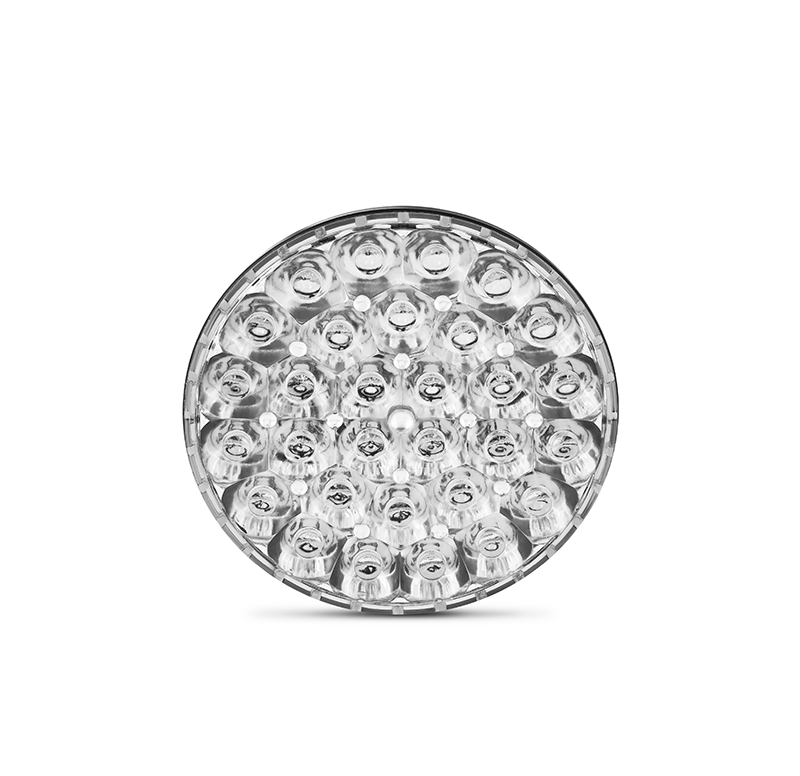

The PMA’d SunSpot 46-4580 HX with Pulse was designed as a PAR 46 drop-in replacement. The SunSpot 46-4580 is only for landing optics incorporated into the light.

EASA Approved.

Specifications

  • Power: 175 Watts
  • Current: 6.3 amps
  • Voltage: 28V
  • Lumens: 19,250
  • Candela: 250,000
  • Weight: 20 oz
  • Dimensions: 5.6" x 5.6" x 1.9"
  • Pulse Wig-Wag: Built-In
  • Synchronization: Built-In
  • Class: FAA, PMA / STC
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you switch between pulse and constant light?

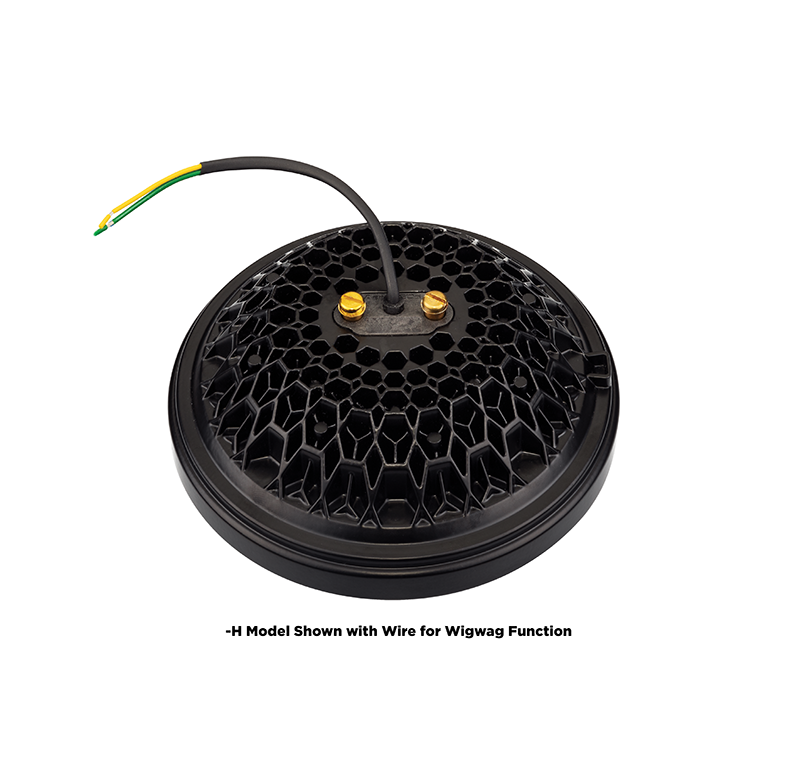

Yes, you can. There is a power and ground terminal that will activate the constant on mode and a yellow wire that will activate the pulse mode.

Q: What is the difference between 01-2130-HX and 01-2230-4580-H?

The difference is the specification and performance of the lights. The 01-2230-4580-H is much brighter and uses more power than 01-2130-HX. You can find the specifications of these items under the specification tab on our website.
