Polyflo Natural 66-P 3/8 Tube

$0.99/Foot
Price Includes GST
Part# 66-P
MFR Model# 103-66-P-N
Part NumberTube
OD
WallBend
Radius
PSI at
75F
PSI at
150F
66-P3/80.0622.00020580

Overview

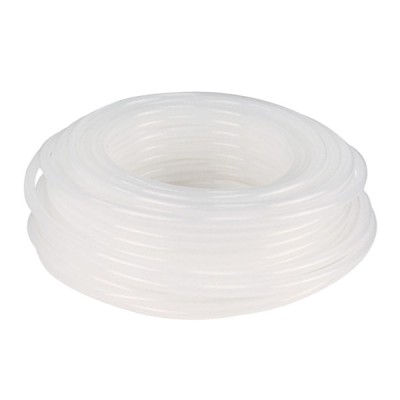

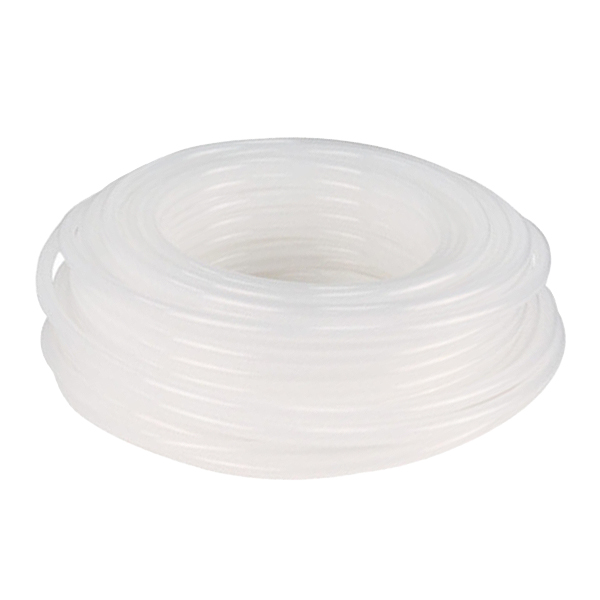

Poly-Flo tubing is a flexible, economical thermoplastic tubing fabricated from high molecular weight polyethylene for improved strength. The base resin has the greatest resistance to environmental stress cracking of all the regular polyethylenes. It meets A.S.T.M. D-1248-60T, Type 1, Class A, Grade 4 and Federal Specification LP- 590, Type 2, Grade 7.

Used for instrument or pneumatic lines. Use Nylo-Seal fittings (259-N inserts are required), nylon or polyethylene hose fittings such as 0710-153.

Color - natural.

Sold by the foot.

Reviews

Polyflo tube as described, great price & on-time delivery

Henry E Verified Purchase

Polyflo Natural 66-P 3/8 Tube

May 2, 2023

Worked anticipated

Paula C Verified Purchase

Polyflo Natural 66-P 3/8 Tube

March 7, 2022

Good quality

Richard W
March 3, 2021

This made a great conduit to run the wingtip lighting wire through. Ran a piece of this through the leading-edge tube from root to tip and secured with safety wire (no space for tubing clamps, which I would have preferred), then ran the tefzel just before installing the wing fabric. If the wire ever needs to be replaced or upgraded, the wing wont need to be disassembled, and the wire is very well protected from chafe. And as always, Aircraft Spruce East folks got my order out the door well-packaged, and quickly. It is such a pleasure to have you to lean on as this plane comes together. Thanks, ACS!

Phill
October 26, 2019

All went well. We are a large department. We have a manager in the stockroom that let us know when packages arrive for us. When the package arrived, it did not contain my name, in the address, so it sat in the stockroom until I went looking for it.

Geoffrey B
September 28, 2019

Just as ordered and arrived very quickly. would purchase from again.

Carol B
August 12, 2019

I prefer this to nylaflow tubing for pitot & static lines. Nylaflow is so rigid it is difficult to work with.

Brian
May 3, 2018

William J Verified Purchase

Polyflo Natural 66-P 3/8 Tube

June 23, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the shelf life on this Poly-Flo Polyethylene tubing? Thanks!

Per the supplier: 5 year shelf life.

Q: Is this tubing suitable for use in instrumen vacuum lines (5.5 in Hg vacuum)?

Yes, with NyloSeal fittings this tubing can be used for vacuum lines.

Q: Does this tubing hold any FAA or aircraft specific approval?

No, this tubing is not FAA Approved.

Q: What is the inside diameter?

The ID of 44-P is 0.21 inches.

Q: What is the ID of the 66-P?

0.313"

Q: Is the ID of the 66-P 0.313 or is it 0.251 ? If the wall thickness is 0.062 the ID should be right around 0.251...shouldnt it ?

The OD is .375, the ID is .313 and the wall would be .062.

Q: What is the weight per linear foot for the 44-P product?

Approx .010 or 2 ounces.

Q: What do I use for a cap on a poly-flo tee 44-P?

259-P06 would work.

Q: What is the temperature range for this tube?

-40F to 150F
