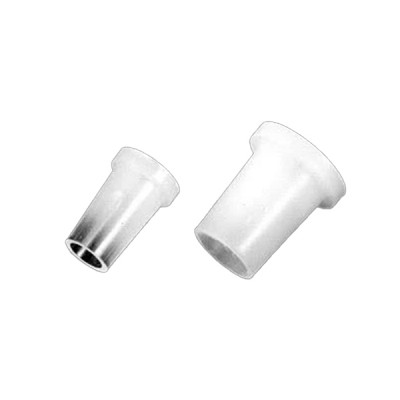

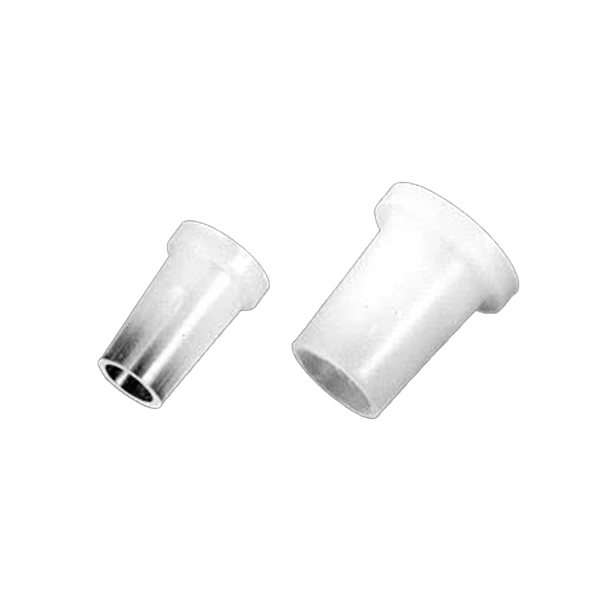

Nylo-Seal Fittings ImpO0854

5 Reviews 2 Answered Questions
$0.72/Piece
Price Includes GST
Quantity
Add to Wishlist View More In This Series →
Part# 259-N06
MFR Model# 259-N06
Tube ODADPart Number
3/80.5000.203259-N06

Overview

Nylo-Seal tube fittings are exceptionally strong. The bodies, made of nylon, are stronger than machined fittings of similar composition. They are furnished complete with nut/sleeve assemblies, made of acetal copolymer. Since the sleeve snaps into and is retained by the nut there is no fumbling for a loose sleeve. Just insert tube into the fitting and tighten the nut 2 to 2-1/2 full turns. Note: The most frequently used combination of tube and pipe sizes are 1/4" Tube x 1/8" Pipe and 3/8" Tube x1/4" Pipe.

For Nylo-Seal tubing, see "Accessories" tab

Less 10% on 50 pieces per size, Less 20% on 100 pieces per size

Reference Chart

259-P CAP,
259-N Insert (Nylon)

261-N Nut and
Sleeve Assembly
Tube O.D. A D
1/4 3/8 1/8
3/8 7/16 13/64
Tube O.D. Thd. A C
1/4 7/16-20 15/32 9/16
3/8 5/8-20 37/64 3/4

262-N Union

Tube O.D. A B C D E
1/4 1-25/64 63/64 5/8 7/32 15/32
3/8 1-21/32 1-1/4 13/16 23/64 19/32

264-N Union Tee
Tube O.D. A B D E
1/4 1-9/64 47/64 7/32 15/32
3/8 1-11/64 31/31 11/32 19/32

266-N Female Connector
Tube O.D. Pipe Thread A B C D E
1/4 1/8 1-9/64 15/16 9/16 7/32 9/16
1/4 1/4 1-5/16 1-7/64 11/16 7/32 47/64
3/8 1/4 1-27/64 1-7/32 11/16 11/32 3/4
3/8 3/8 1-27/64 1-7/32 13/16 11/32 3/4

265-N Elbow Union
Tube O.D. A B D E
1/4 1-1/64 13/16 7/32 3/8
3/8 1-5/32 15/16 11/32 7/16

268-N Male Connector
Tube O.D. Pipe Thd. A B C D E
1/4 1/8 1-13/64 1 5/8 15/64 15/32
1/4 1/4 1-25/64 1-3/16 5/8 15/64 11/16
3/8 1/4 1-17/32 1-21/64 13/16 5/16 19/32
3/8 3/8 1-19/32 1-25/64 13/16 11/32 19/32

269-N Male Elbow
Tube O.D. Pipe Thd. A B D E F
1/4 1/8 1-1/64 13/16 7/32 3/8 27/32
1/4 1/4 1-1/64 13/16 13/32 3/8 1-1/32
3/8 1/4 1-9/64 15/16 5/16 7/16 1-1/32
3/8 3/8 1-9/64 15/16 11/32 7/16 1-3/32

271-N Male Run Tee
Tube O.D. Pipe Thd. A B D E F
1/4 1/8 59/64 21/32 7/32 15/32 3/4
1/4 1/4 59/64 13/32 7/32 15/32 29/32
3/8 1/4 1-5/32 61/64 5/16 19/32 1-1/16
3/8 3/8 1-3/16 61/64 23/64 19/32 1-7/64

272-N Male Branch Tee
Tube O.D. Pipe Thd. A B D E F
1/4 1/8 15/16 47/64 7/32 15/32 3/4
1/4 1/4 15/16 47/64 7/32 15/32 13/16
3/8 1/4 1-11/64 31/32 5/16 19/32 1-1/16
3/8 3/8 1-11/64 31/32 23/64 19/32 1-7/64

282-N Bulkhead Union
Tube O.D. Pipe Thd. A B C D E F G
1/4 7/16-20 1-57/64 1-31/64 5/8 7/32 15/32 5/8 5/16
3/8 5/8-20 2-1/4 1-53/64 13/16 11/32 19/32 7/8 3/8
*Use 259N inserts w/all Poly-Flo tubing connections. Not needed w/ Nylo-Seal tubing.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

These are back ordered, have not received a new shipping status.

Richard W
March 3, 2021

I made a mistake with the last rating, in fact Aircraft aircraft spruce has shipped the missing item so please accept my apology. Thank you for prompt shipping. Rich

Richard W
May 7, 2020

I got what I ordered, good job!

Lumanair A
January 24, 2020

took a little time to locate the insert, but was a correct fit. Staff very helpful

John W
October 21, 2019

Your directions are lacking. They lead you to believe that the fittings are shipped complete and dont need the 259-N inserts for the line. Since they are needed they should be supplied with each of the fittings but are required to be ordered separetly. GRRR.

Brian V
October 15, 2024

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: In Nylo Seal Fittings, is the first fraction in the size column the pipe size or tube size? Example: 1/4 x 3/8

The first number in the size column refers to the tube OD, second number is the pipe thread. In your example, 1/4 tube OD x 3/8 pipe thread.

Q: Please tell me how to assemble when using a cap 259-P.

You would install a cap in a fitting where you would want to cap off the flow. Place the cap in the fitting and tighten the nut down.

View in Catalog
