- Photo may represent series and not specific product
- SHARE

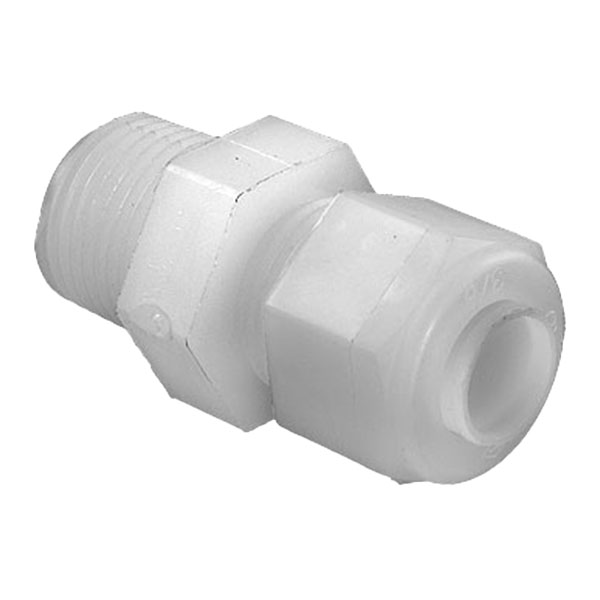

Nylo-Seal Fitting 268-N06X06
MFR Model# 268N-06X06
|
Tube OD | Pipe Thd. | A | B | C | D | E | Part Number |
|---|---|---|---|---|---|---|---|
| 3/8 | 3/8 | 1-19/32 | 1-25-64 | 13/16 | 11/32 | 11/32 | 268-N06X06 |
Overview
|
Nylo-Seal tube fittings are exceptionally strong. The bodies, made of nylon, are stronger than machined fittings of similar composition. They are furnished complete with nut/sleeve assemblies, made of acetal copolymer. Since the sleeve snaps into and is retained by the nut there is no fumbling for a loose sleeve. Just insert tube into the fitting and tighten the nut 2 to 2-1/2 full turns. Note: The most frequently used combination of tube and pipe sizes are 1/4" Tube x 1/8" Pipe and 3/8" Tube x1/4" Pipe.
For Nylo-Seal tubing, see "Accessories" tab Less 10% on 50 pieces per size, Less 20% on 100 pieces per size |
Reference Chart
259-N Insert (Nylon) |
Sleeve Assembly | |||||||||||||||||||||||
 |
|  |
| |||||||||||||||||||||
| |||||||||||||||||||
 |
| ||||||||||||||||||
264-N Union Tee | ||||||||||||||||
 |
| |||||||||||||||
| ||||||||||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||||||||||
| ||||||||||||||||
 |
| |||||||||||||||
268-N Male Connector | ||||||||||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||
| *Use 259N inserts w/all Poly-Flo tubing connections. Not needed w/ Nylo-Seal tubing. | |
Reviews
As described / expected. The only thing I would like to see that wasnt included would be the small inserts that support the ends of the inside diameter of the tubes.
Verified Purchase
Nylo-Seal Fitting 268-N06X06
Some new instruments I installed required access to the pitot and static lines but did not come with a fitting to connect the tubing. These fittings fit perfectly and attached securely to the tubes.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
One end is pipe thread, and will seal without teflon tape or compound.
You would need a tap for 1/8th NPT.
They are just from different manufacturers, they will both work with nyloseal.
If those instruments have 1/8 npt ports on them yes. That is the most common size.
