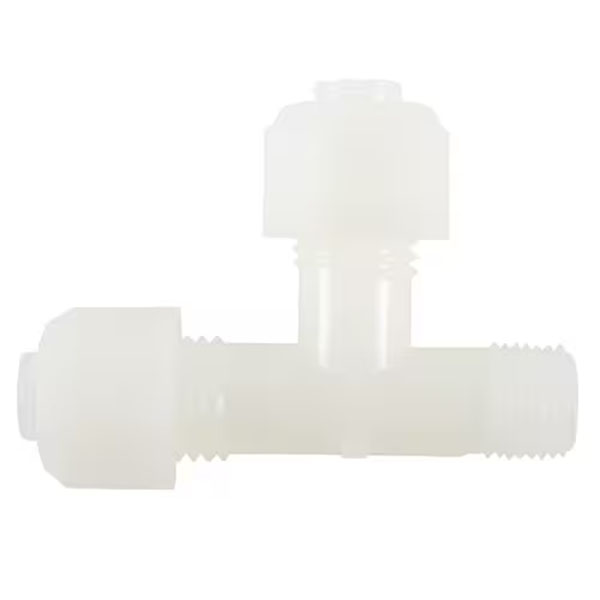

Nylo-Seal Fitting 271-N04X02

7 Reviews 2 Answered Questions
$4.68/Piece
Price Includes GST
Quantity
Add to Wishlist View More In This Series →
Part# 271-N04X02
MFR Model# 271N-04X02
Tube
OD		Pipe
Thd.		ABDEFPart Number
1/41/859/6421/327/3215/323/4271-N04X02

Overview

Nylo-Seal tube fittings are exceptionally strong. The bodies, made of nylon, are stronger than machined fittings of similar composition. They are furnished complete with nut/sleeve assemblies, made of acetal copolymer. Since the sleeve snaps into and is retained by the nut there is no fumbling for a loose sleeve. Just insert tube into the fitting and tighten the nut 2 to 2-1/2 full turns. Note: The most frequently used combination of tube and pipe sizes are 1/4" Tube x 1/8" Pipe and 3/8" Tube x1/4" Pipe.

For Nylo-Seal tubing, see "Accessories" tab

Less 10% on 50 pieces per size, Less 20% on 100 pieces per size

Reference Chart

259-P CAP,
259-N Insert (Nylon)

261-N Nut and
Sleeve Assembly
Tube O.D. A D
1/4 3/8 1/8
3/8 7/16 13/64
Tube O.D. Thd. A C
1/4 7/16-20 15/32 9/16
3/8 5/8-20 37/64 3/4

262-N Union

Tube O.D. A B C D E
1/4 1-25/64 63/64 5/8 7/32 15/32
3/8 1-21/32 1-1/4 13/16 23/64 19/32

264-N Union Tee
Tube O.D. A B D E
1/4 1-9/64 47/64 7/32 15/32
3/8 1-11/64 31/31 11/32 19/32

266-N Female Connector
Tube O.D. Pipe Thread A B C D E
1/4 1/8 1-9/64 15/16 9/16 7/32 9/16
1/4 1/4 1-5/16 1-7/64 11/16 7/32 47/64
3/8 1/4 1-27/64 1-7/32 11/16 11/32 3/4
3/8 3/8 1-27/64 1-7/32 13/16 11/32 3/4

265-N Elbow Union
Tube O.D. A B D E
1/4 1-1/64 13/16 7/32 3/8
3/8 1-5/32 15/16 11/32 7/16

268-N Male Connector
Tube O.D. Pipe Thd. A B C D E
1/4 1/8 1-13/64 1 5/8 15/64 15/32
1/4 1/4 1-25/64 1-3/16 5/8 15/64 11/16
3/8 1/4 1-17/32 1-21/64 13/16 5/16 19/32
3/8 3/8 1-19/32 1-25/64 13/16 11/32 19/32

269-N Male Elbow
Tube O.D. Pipe Thd. A B D E F
1/4 1/8 1-1/64 13/16 7/32 3/8 27/32
1/4 1/4 1-1/64 13/16 13/32 3/8 1-1/32
3/8 1/4 1-9/64 15/16 5/16 7/16 1-1/32
3/8 3/8 1-9/64 15/16 11/32 7/16 1-3/32

271-N Male Run Tee
Tube O.D. Pipe Thd. A B D E F
1/4 1/8 59/64 21/32 7/32 15/32 3/4
1/4 1/4 59/64 13/32 7/32 15/32 29/32
3/8 1/4 1-5/32 61/64 5/16 19/32 1-1/16
3/8 3/8 1-3/16 61/64 23/64 19/32 1-7/64

272-N Male Branch Tee
Tube O.D. Pipe Thd. A B D E F
1/4 1/8 15/16 47/64 7/32 15/32 3/4
1/4 1/4 15/16 47/64 7/32 15/32 13/16
3/8 1/4 1-11/64 31/32 5/16 19/32 1-1/16
3/8 3/8 1-11/64 31/32 23/64 19/32 1-7/64

282-N Bulkhead Union
Tube O.D. Pipe Thd. A B C D E F G
1/4 7/16-20 1-57/64 1-31/64 5/8 7/32 15/32 5/8 5/16
3/8 5/8-20 2-1/4 1-53/64 13/16 11/32 19/32 7/8 3/8
*Use 259N inserts w/all Poly-Flo tubing connections. Not needed w/ Nylo-Seal tubing.
