Made of cadmium plated steel or stainless steel per procurement specification MIL T-5677. Used to form sturdy eye end on control cable. Form cable around thimble and secure with Nicopress sleeve. |
They work a lot better when you snip those four pointy corners off, back toward the loop at about a 45* angle

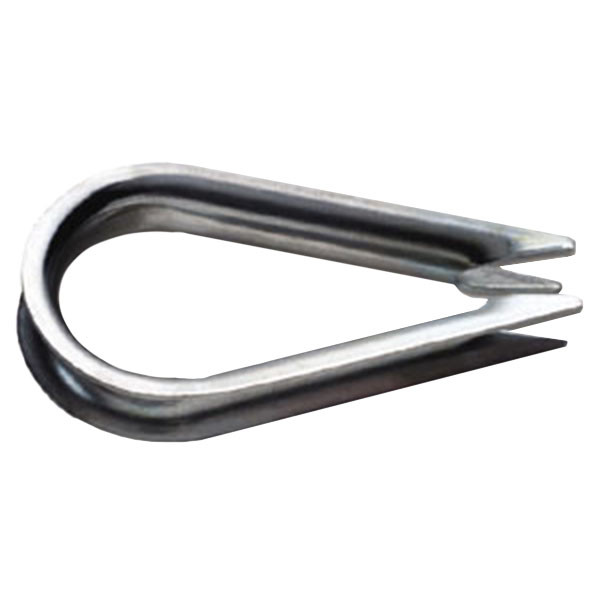

Stainless Steel Cable Thimbles AN100C-5
Perfect!!!
Just what I needed
Ok pricing
Nice quality part
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The procurement spec calls for MIL-S-5059, type 18-8 stainless steel strip and plate.
Inside Width: 0.410 inches nominal |Inside Length: 0.797 inches nominal | Accommodated Material Diameter: 0.156 inches nominal
The max width of the AN100C-4 thimble is .52 inch.
Yes, The AN100C-3 will work with MS20668-3 with 3/32 cable.
