Bolt Undrilled AN4-6A

Packaged Items
SinglePack of 25
Price Includes GST
Dash No.Nominal
Length
Grip
Length
-625/325/16

Overview

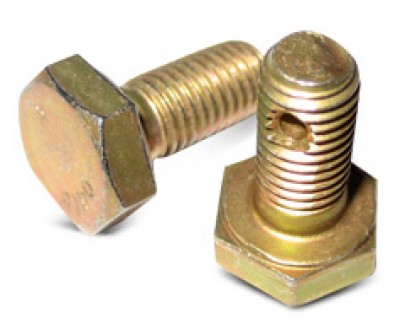

Hex head aircraft bolts are made of high-strength type 4037 or 8740 alloy steel (type 8740 is most commonly used). The bolts are centerless ground and threaded after heat treatment. Minimum tensile strength 125,000 PSI. Cadmium plated per specification QQ-P-416A, Type II, Class 3. Available with shank drilled for cotter pin or undrilled for stop nut application, and with or without drilled head for safety wire. Specify bolts to have undrilled shank by adding letter "A" after the dash number. For bolts with drilled head add letter "H" after the AN number. See illustrated examples. "C" represents Type 431 Stainless Steel (contains iron which is magnetic). The length of AN aircraft bolts is measured from under the head to the end of the shank. The "grip" is the unthreaded portion of the shank. See table for conversion of length and/or grip to proper AN callout.

15% discount on qty of 50-99
20% discount on qty of 100+


Note: Drilled bolts listed above are drilled shank only. To order drilled head only or both drilled head and shank bolts, please use our AN Bolt Selector by clicking the link below.

Click here for the AN Bolt Selector

Reference Chart

Reference Chart

Reviews

OK

Ed C Verified Purchase

Bolt Undrilled AN4-6A

July 9, 2024

25 packs are convenient!

Aerotecnica Verified Purchase

Bolt Undrilled AN4-6A (Pack Of 25)

January 27, 2024

it were gud

Joseph S Verified Purchase

Bolt Undrilled AN4-6A

December 12, 2023

Tom Verified Purchase

Bolt Undrilled AN4-6A

August 12, 2023

Very nice

Steven B Verified Purchase

Bolt Undrilled AN4-6A (Pack Of 25)

July 13, 2023

Danny B Verified Purchase

Bolt Undrilled AN4-6A (Pack Of 25)

June 21, 2023

Hamard B Verified Purchase

Bolt Undrilled AN4-6A

April 13, 2023

Christophe N Verified Purchase

Bolt Undrilled AN4-6A

January 24, 2023

Magaero L Verified Purchase

Bolt Undrilled AN4-6A (Pack Of 25)

August 23, 2022

Great products/company shipping is high!!!

Peter M Verified Purchase

Bolt Undrilled AN4-6A

July 28, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the quantities for price breaks and the standard package quantities? I know you'll send any quantity, but I'd order above the price breaks and in multiples of the package quantities if they were listed.

The discount schedule for large quantities are: 50-100 = 15% / 100+ = 20%. Package quantities are usually 25 but we can sort them however you prefer as long as you mention it in special instructions at checkout.

Q: How do I order AN4 bolts with the head drilled on line?

Use the AN Bolt Selector page. Keyword search "AN Bolt Selector" on our website and click the first result, then use the drop down selections on the page to choose the bolts you need.
