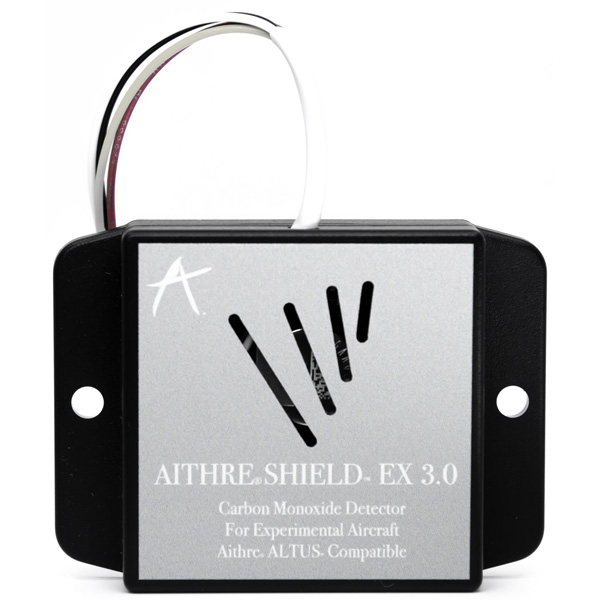

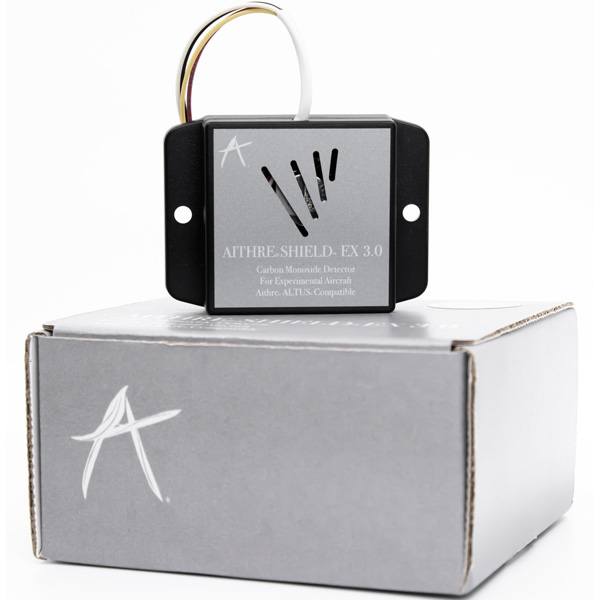

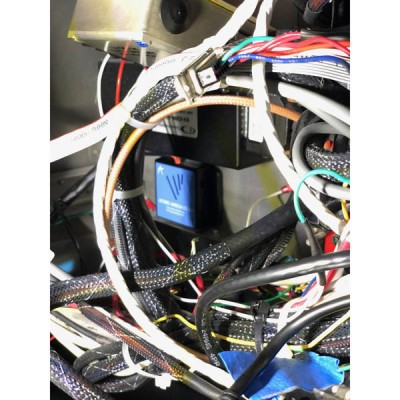

Aithre Shield Ex 3.0 Behind - The - Panel Carbon Monoxide Detector - Altus Compatible With iOS App - Black
$440.00/Each
Price Includes GST
Part# 11-17497
MFR Model# ASCOX3002
MFR Model# ASCOX3002
Overview
|
Note: For Experimental Aircraft Only

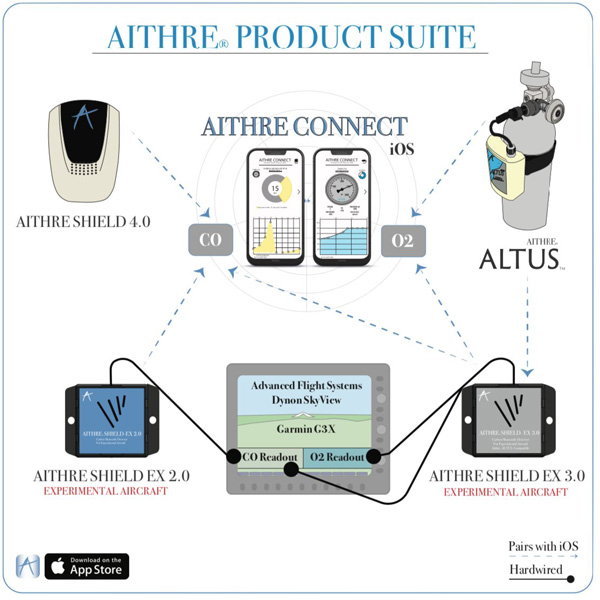

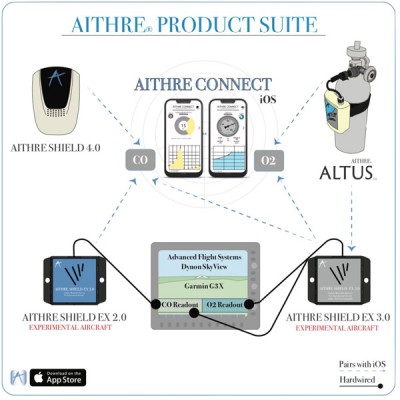

The Aithre Shield EX 3.0 is the first behind-the-panel device that puts carbon monoxide readings AND tank PSI from your Aithre Altus portable oxygen tank gauge directly on your Dynon SkyView, MGL, Garmin G3X, and Advanced Flight Avionics. |
Features
Altus Compatible:Wirelessly retrieves tank psi data from the Aithre Altus to allow portable oxygen tank pressure to be provided to your avionics along with carbon monoxide data
Output to Avionics:
Simple installation using just four wires - 5v power, ground, analog CO output, and analog PSI output (requires GEA 24 for Garmin, RDAC for MGL, and SV-EMS for both Dynon and Advanced - the AF-EMS cannot be used with the EX 3.0)
iOS:
Integrated with the Aithre Connect iOS app to provide discrete and trend CO levels plus Siri voice notifications to your headset (when paired to your iOS device)
(Click Here for the Apple App Store for Aithre Connect)
Sensitive:
Under 30 second sensor response between 0 - 255 ppm with 1 ppm resolution
Compact:
Measures just 1.97” x 1.97” x 0.67” tall and weighs 1.1 ounces (mounting flange adds 0.75" to the base width)
Intuitive Graphical Indication:

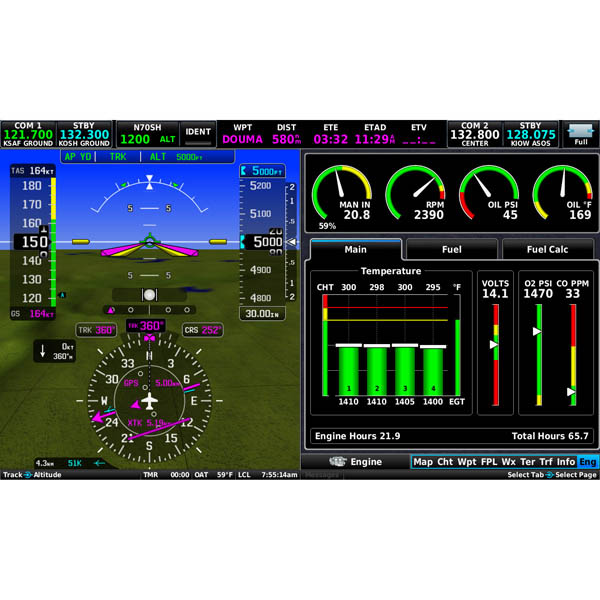

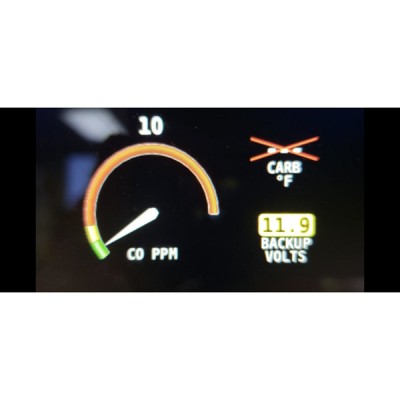

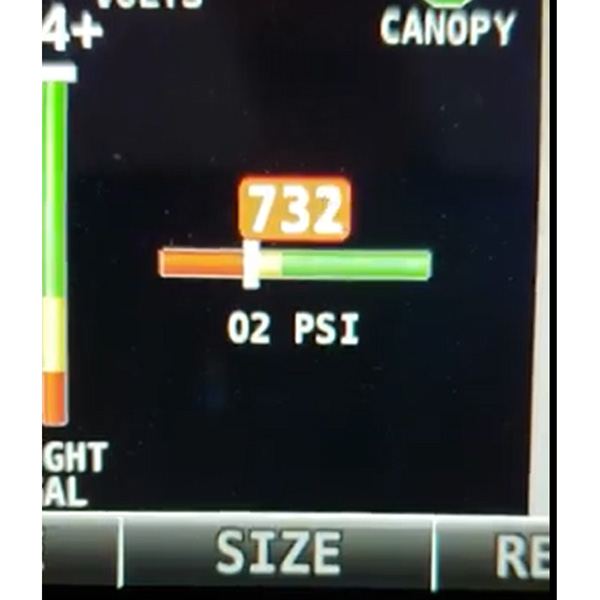

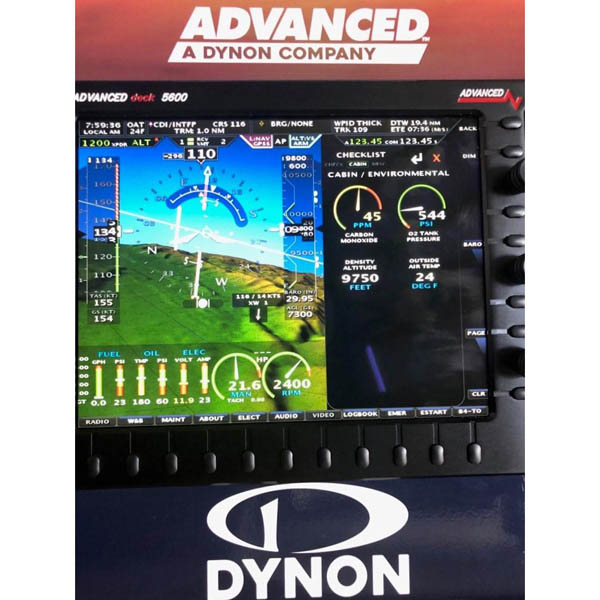

This device is compatible with iOS, Garmin G3X, Advanced Flight, and Dynon Skyview and outputs as an circular dial and trend graph (iOS), a moving bar (G3X), a graphical dial (Dynon and Advanced)
Temperature Independent:
Internal temperature adjustment circuit that compensates for temperature induced errors in the sensor between -10 C to +50 C
No Recalibration:
State-of-the-art sensor requires no recalibration for 10 years under normal operating conditions
Pressure & Altitude Independent:
The detector is not affected by pressure and altitude changes
Hand Calibrated:
Every Aithre detector is individually calibrated using high precision calibration CO gas and comes with a signed certificate of calibration
6000 MSL Designed & Assembled:
Ketchum, Idaho
Specifications
- Dimensions: 1.97” x 1.97” x 0.67” tall (mounting flange adds 0.75" to the base width
- Weight: 1.1 ounces
