AVI Survival Products TSO Type I 10 Person Life Rafts

From $10639.00 to $18605.00
Prices below incude GST
Model No. Description Packed Dimensions (inches) Weight (Lbs) Part Number Buy
RAF1210-30110 Person, TSO Life Raft with FAR 91 Survival Kit9X15X2045
13-23616
$11702.90
Quantity
RAF1210-30310 Person, TSO Life Raft with FAR 121 Survival Kit9X15X2046
13-23618
$11773.30
Quantity
RAF1210-30710 Person, TSO End Pack Life Raft with FAR 91 Survival Kit7.25X15.5X27.545
13-23622
$11702.90
Quantity
RAF1210-30910 Person, TSO End Pack Life Raft with FAR 121 Survival Kit7.25X15.5X27.546
13-23624
$11773.30
Quantity
RAF1210-31110 Person, TSO End Pack Life Raft with FAR 135 Survival Kit7.25X15.5X27.551
13-23626
$13581.70
Quantity
RAF1210-301T110 Person, TSO Life Raft with FAR 91 Survival Kit + 406 ELT9X15X2047
13-23617
$18790.20
Quantity
RAF1210-303T110 Person, TSO Life Raft with FAR 121 Survival Kit + 406 ELT9X15X2048
13-23619
$18661.50
Quantity
RAF1210-305T110 Person, TSO Life Raft with FAR 135 Survival Kit + 406 ELT9X15X2053
13-23621
$20465.50
Quantity
RAF1210-307T110 Person, TSO End Pack Life Raft with FAR 91 Survival Kit + 406 ELT7.25X15.5X27.547
13-23623
$18786.90
Quantity
RAF1210-309T110 Person, TSO End Pack Life Raft with FAR 121 Survival Kit + 406 ELT7.25X15.5X27.548
13-23625
$18657.10
Quantity
RAF1210-311T110 Person, TSO End Pack Life Raft with FAR 135 Survival Kit + 406 ELT7.25X15.5X27.553
13-23627
$20465.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

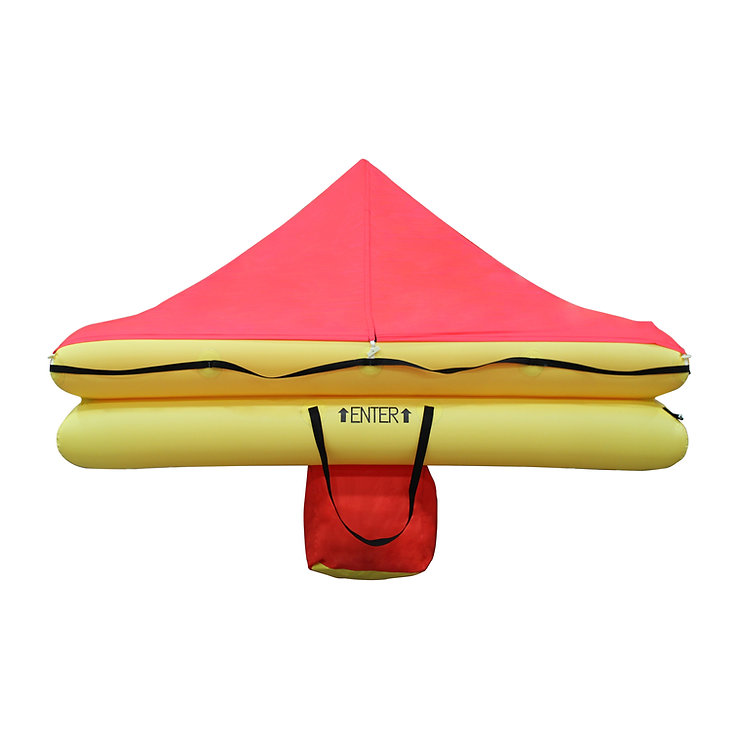

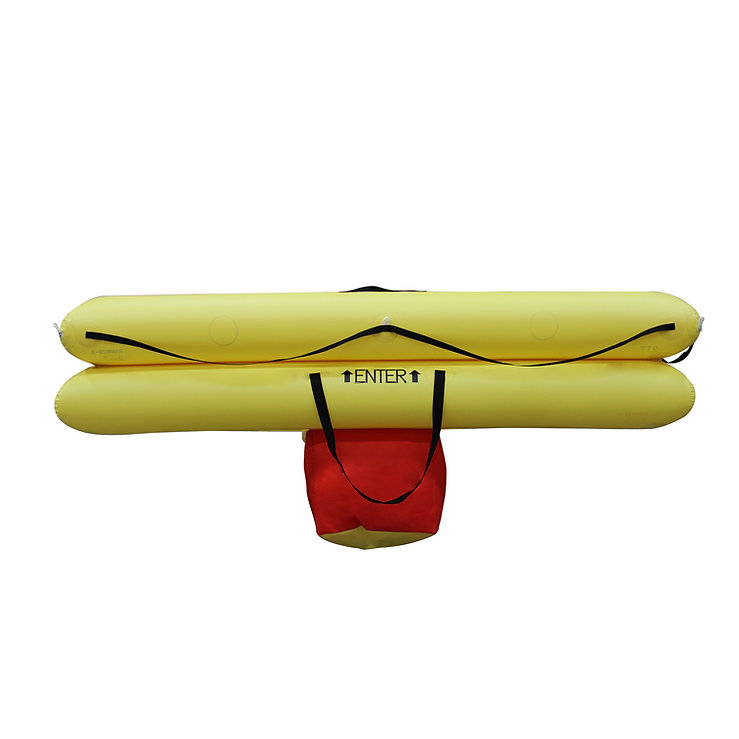

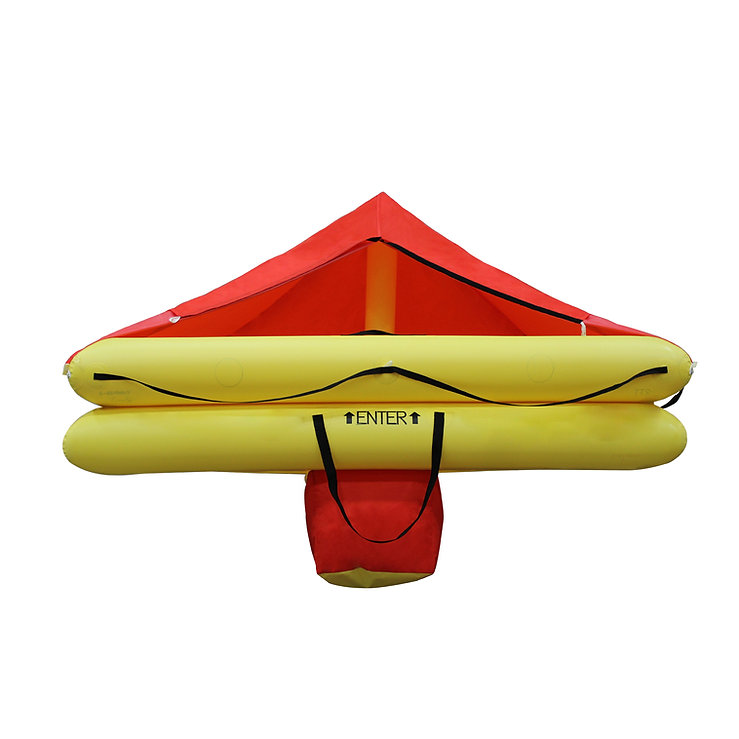

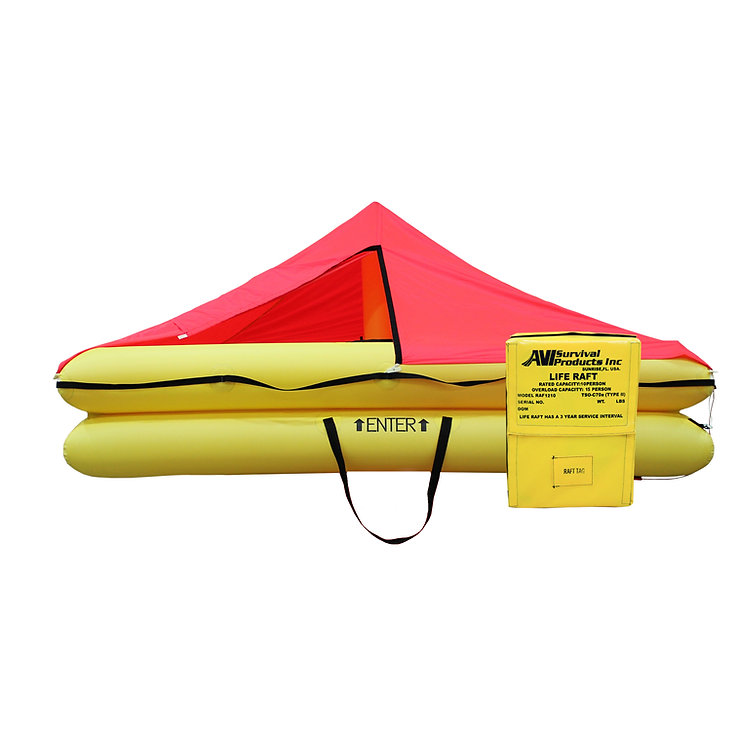

AVI Survival Products 10 Person Life Raft conforms to the latest FAA TSO C70a requirement. The life raft has a dual tube in­flatable design, classified as a Type I, Transport category life raft recommended for Corporate and General Aviation.

The 10 Person life raft series is constructed with the latest Urethane coated Nylon Fabric, that is manufactured using thermal bonding technology. This process heat seals the fabric, melting the seams together to ensure longevity of the raft. Each raft includes a stabilizing Water Ballast system, a hand pump, bailing bucket, a sea anchor, secured life-lines on the exterior perimeter of the raft for use of survivors in the water, and an inflation/retaining line that is attached to a high strength patch on the raft to prevent drifting and a water activated locator light. Aluminum cylinders and valves are added to reduce corrosion while packed and in use. The Soft-Pack Valise is made of heavy-duty polyester fabric with secured Velcro closures for a tightly packed raft.

These rafts are engineered to reduce overall weight and deliver a compact de­sign for easy transport and stowage for any aircraft compartment. AVI life rafts come with a 5-year warranty on parts and labor, built to last a lifetime with proper care.

This raft includes the FAR 91, FAR 121, or FAR 135 Survival Equipment Kit that meets FAA regulations. The 406 ELT, which may be required by law for those who operate an airplane in extended overwater operations can be added to any kit.

Features

  • Lightest weight and most compact - easy to carry, stow away, and maneuverable any emergency.
  • Single tube with internal bulkhead design creating two separate chambers.
  • Includes a stabilizing Water Ballast System and a Water Activated Locator Light.

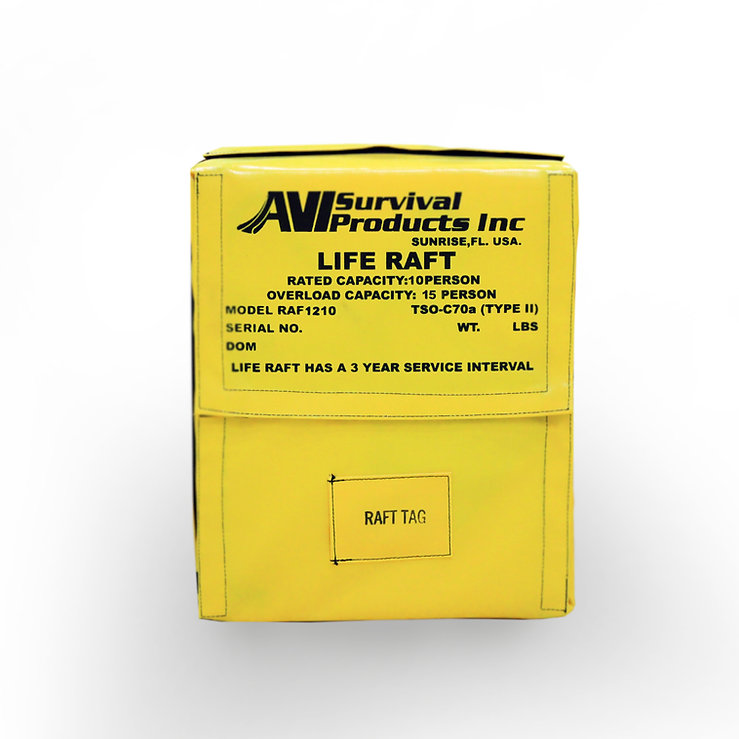

  • Soft-Pack Valise made of heavy duty Polyester fabric with secure Velcro closures.
  • Constructed of Urethane coated Nylon Fabric, meeting TSO-C70B requirements.
  • Contains Aluminum Cylinders and valves eliminating corrosion and greatly reducing the weight.
  • 5-year warranty on parts and labor, built to last a lifetime with proper care.
  • Highly visible orange canopy to aid in search and rescue operations.

Specifications

  • Capacity: 10
  • Overload Capacity: 15
  • Weight: See Chart Above
  • Packed Dimension: See Chart Above
  • *Dimensions are measured by W x H x L.
  • **Required Raft Compartment Size = Add 1-2” to all around life raft dimensions. Raft required weight +/- 2lbs.

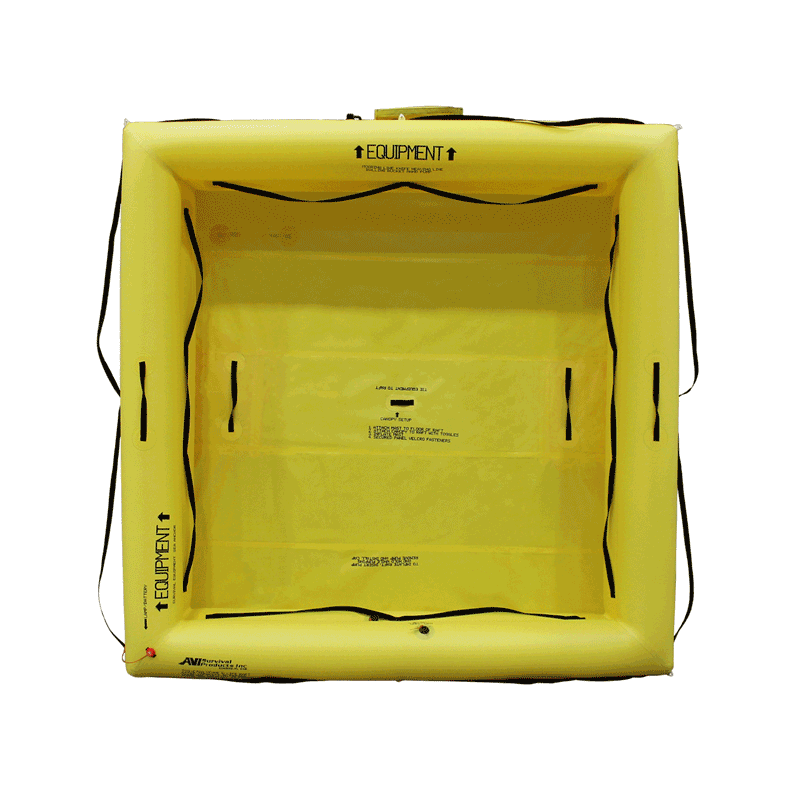

360 View

Survival Kit Contents

    • FAR 91 Survival Kit:
    • Mini Maglite Flashlight
    • Red Aerial Flare
    • First Aid Kit
    • Raft Repair Kit
    • Signal Kit (Mirror, Whistle, Dye Maker, Signal Flag)
    • Water Rations
    • Food Rations
    • FAR 121 Survival Kit:
    • All Contents of Above FAR 91 Survival Kit
    • Utility Knife
    • Survival Manual
    • Compressed Sponge
    • FAR l35 Kit:
    • All Contents of Above FAR 121 Survival Kit
    • Compass
    • 75" Tie Down Cord
    • Fishing Kit
    • Watermaker
    • Paddle
    • Radar Reflective Blanket

In The Box

  • Buoyancy Tube
  • Deck
  • CO2 Inflation System
  • Canopy & Mast
  • Valise
  • Boarding Handles
  • Retaining Line
  • Hand Pump
  • Bailing Bucket
  • Sea Anchor
  • Lifelines
