AVI Survival Products TSO Type II 4 Person Life Rafts
| Model No. | Description | Packed Dimensions (inches) | Weight (Lbs) | Part Number | Buy |
|---|---|---|---|---|---|
| RAF1104-301 | 4 Person, TSO Life Raft with FAR 91 Survival Kit | 8X14X17 | 22 | 13-31670 | $5649.60 |
| RAF1104-303 | 4 Person, TSO Life Raft with FAR 121 Survival Kit | 8X14X17 | 23 | 13-31690 | $5924.60 |
| RAF1104-305 | 4 Person, TSO Life Raft with FAR 135 Survival Kit | 8X14X17 | 24 | 13-31700 | $7426.10 |
| RAF1104-307 | 4 Person, TSO Endpack Life Raft with FAR 121 Survival Kit | 5X14X21 | 23 | 13-23595 | $5666.10 |
| RAF1104-309 | 4 Person, TSO Endpack Life Raft with FAR 135 Survival Kit | 5X14X21 | 29 | 13-23597 | $7308.40 |
| RAF1104-301T1 | 4 Person, TSO Life Raft with FAR 91 Survival Kit + 406 ELT | 8X14X17 | 24 | 13-23592 | $12526.80 |
| RAF1104-303T1 | 4 Person, TSO Life Raft with FAR 121 Survival Kit + 406 ELT | 8X14X17 | 25 | 13-23593 | $12787.50 |
| RAF1104-305T1 | 4 Person, TSO Life Raft with FAR 135 Survival Kit + 406 ELT | 8X14X17 | 30 | 13-23594 | $13886.40 |
| RAF1104-307T1 | 4 Person, TSO Endpack Life Raft with FAR 121 Survival Kit + 406 ELT | 5X14X21 | 24 | 13-23596 | $12526.80 |
| RAF1104-309T1 | 4 Person, TSO Endpack Life Raft with FAR 135 Survival Kit + 406 ELT | 5X14X21 | 29 | 13-23598 | $14191.10 |
| RAF1104-317 | 4 Person, TSO, 4 Person, TSO Endpack Life Raft with FAR 135 Survival Kit Life | 13-25764 |
Overview
|

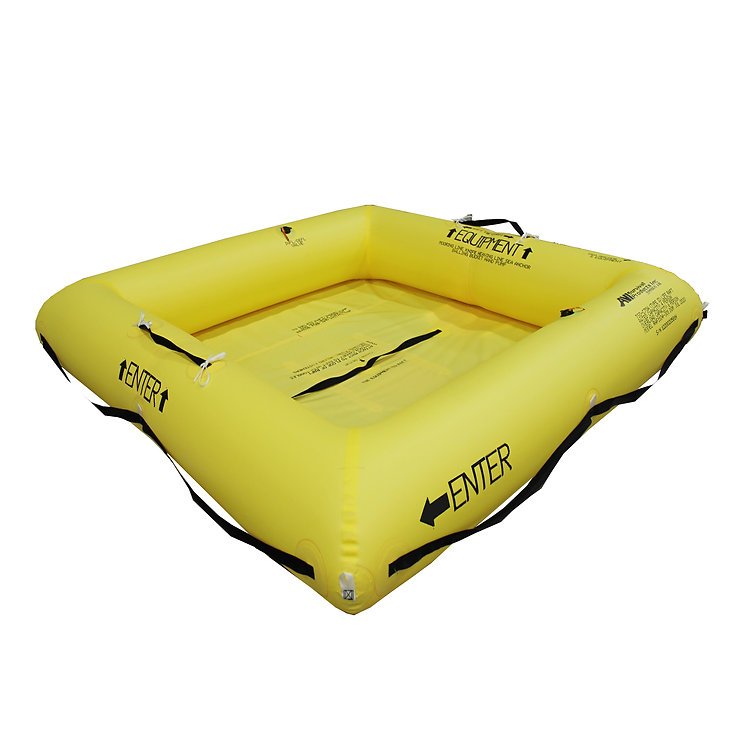

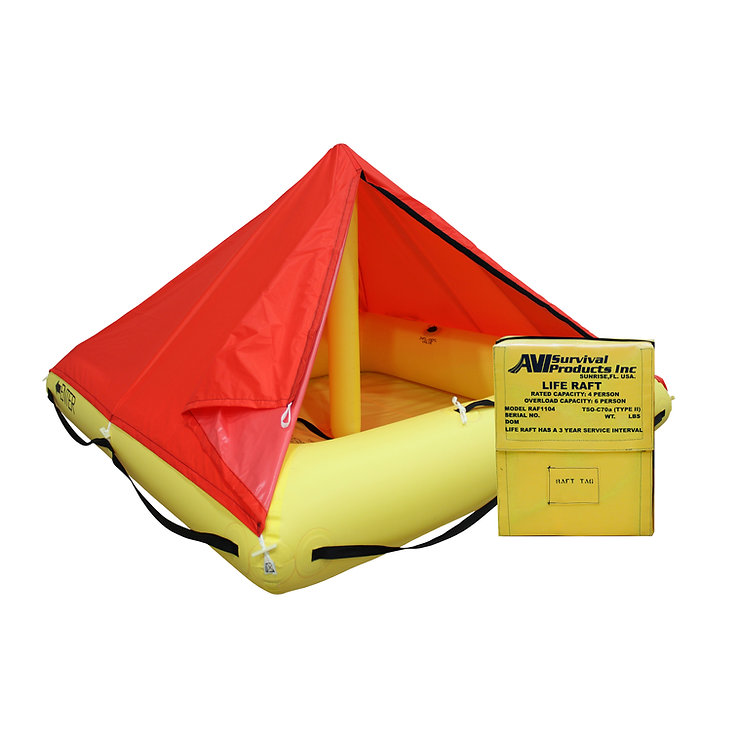

AVI Survival Products 4 Person Life Raft conforms to the latest FAA TSO C70a requirement. The life raft has a single tube inflatable, with an internal bulkhead design, creating two separate chambers. Classified as a Type II Non-Transport category life raft recommended for Corporate and General Aviation. The 4 Person life raft series is constructed with the latest Urethane coated Nylon Fabric using thermo bonding technology. This process heat seals the fabric, melting the seams together to ensure longevity of the raft. Each raft includes a stabilizing Water Ballast system, a hand pump, bailing bucket, a sea anchor, secured life-lines on the exterior perimeter of the raft for use of survivors in the water, and an inflation/retaining line that is attached to a high strength patch on the raft to prevent drifting and a water activated locator light. Aluminum cylinders and valves are added to reduce corrosion while packed and in use. The Soft-Pack Valise is made of heavy-duty polyester fabric with secured Velcro closures for a tightly packed raft. These rafts are engineered to reduce overall weight and deliver a compact design for easy transport and stowage for any aircraft compartment. AVI life rafts come with a 5-year warranty on parts and labor, built to last a lifetime with proper care. |
Features
- Lightest weight and most compact - easy to carry, stow away, and maneuverable any emergency.
- Single tube with internal bulkhead design creating two separate chambers.
- Includes a stabilizing Water Ballast System and a Water Activated Locator Light.

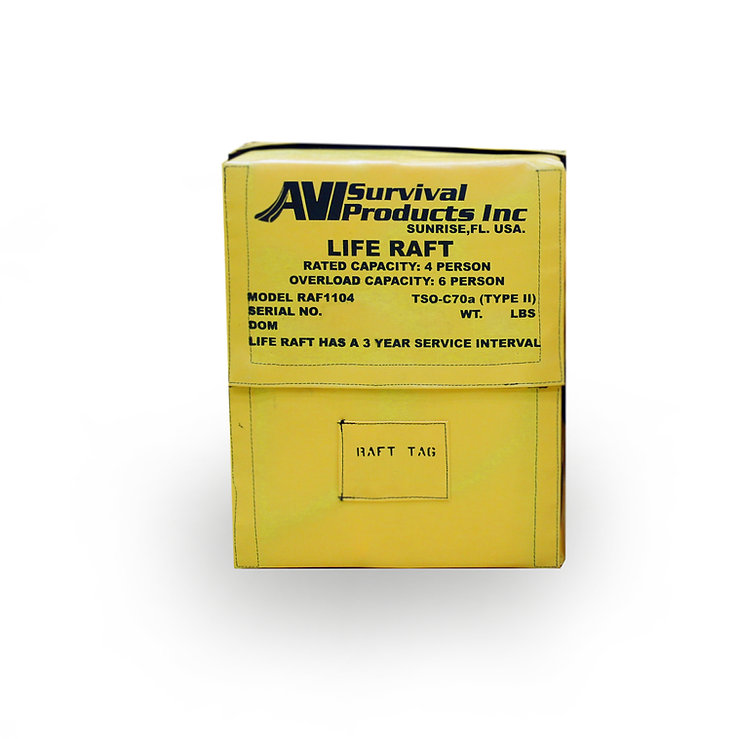

- Soft-Pack Valise made of heavy duty Polyester fabric with secure Velcro closures.
- Constructed of Urethane coated Nylon Fabric, meeting TSO-C70B requirements.
- Contains Aluminum Cylinders and valves eliminating corrosion and greatly reducing the weight.
- 5-year warranty on parts and labor, built to last a lifetime with proper care.

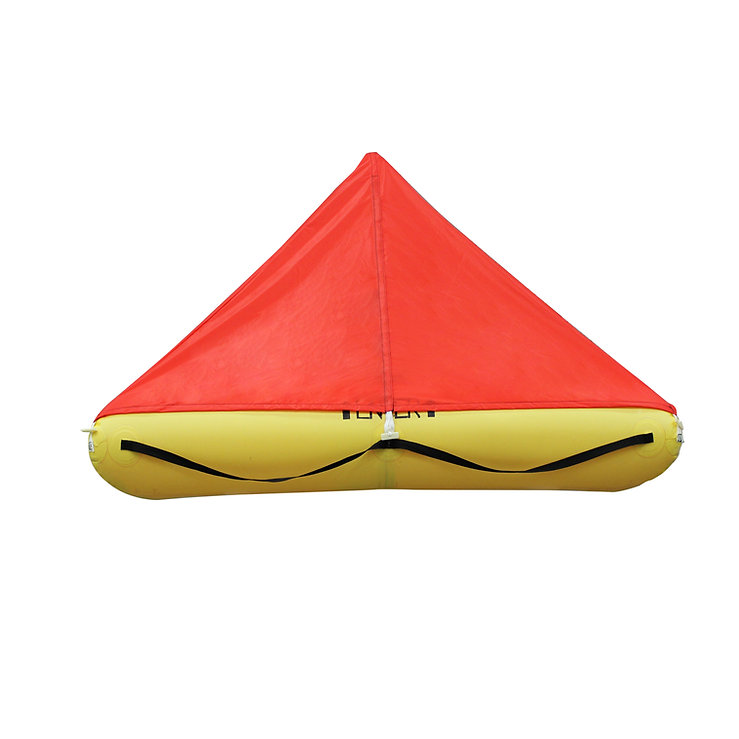

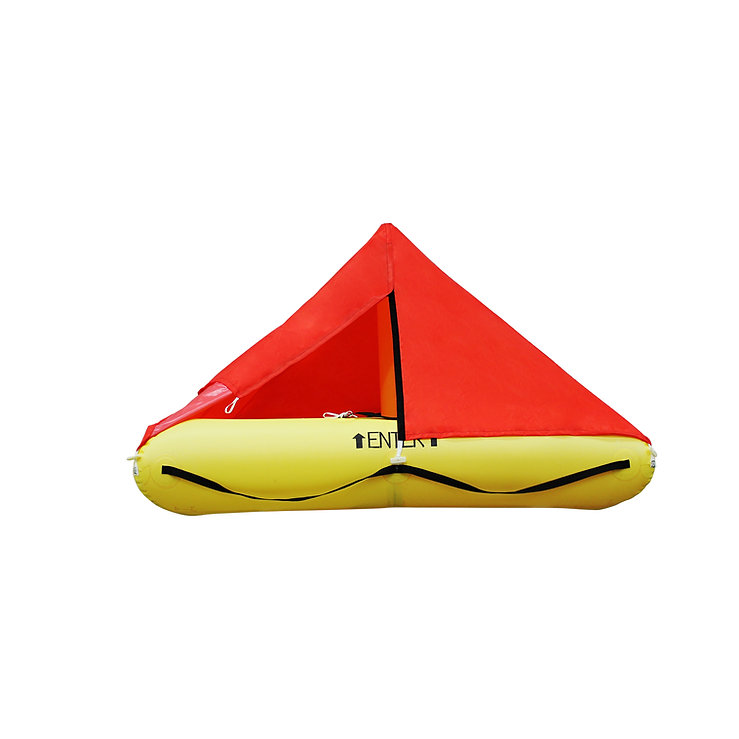

- Highly visible orange canopy to aid in search and rescue operations.
Specifications
- Capacity: 4
- Overload Capacity: 6
- Weight: See Chart Above
- Packed Dimension: See Chart Above
- *Dimensions are measured by W x H x L.
- **Required Raft Compartment Size = Add 1-2” to all around life raft dimensions. Raft required weight +/- 2lbs.
360 View
Survival Kit Contents
- FAR 91 Survival Kit:
- Mini Maglite Flashlight
- Red Aerial Flare
- First Aid Kit
- Raft Repair Kit
- Signal Kit (Mirror, Whistle, Dye Maker, Signal Flag)
- Water Rations
- Food Rations
- FAR 121 Survival Kit:
- FAR l35 Kit:
In The Box
- Buoyancy Tube
- Deck
- CO2 Inflation System
- Canopy & Mast
- Valise
- Boarding Handles
- Retaining Line
- Hand Pump
- Bailing Bucket
- Sea Anchor
- Lifelines
