Overview

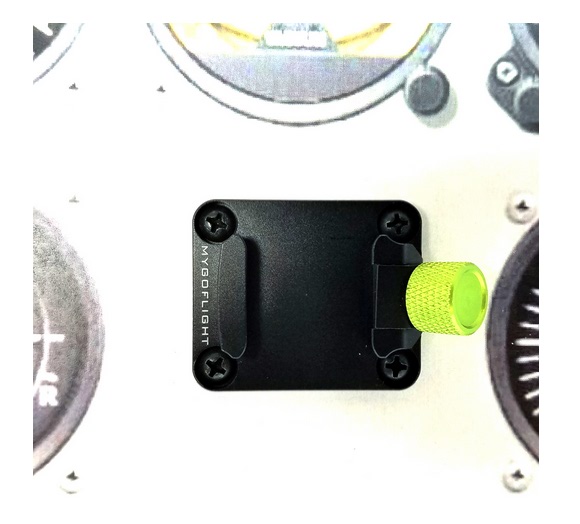

Flex Clip Mount by MGF. This is the first and only mount that you can secure anywhere you wish with four screws of an AMPs pattern or with semi-permanent VHB adhesive. Since the Flex Clip uses Flex Arms, it is infinitely adjustable so pilots are able to mount their device in the exact position they wish that was thought not possible before. Simply take the metal base and secure it in the desired location with screws or adhesive. Then take the Flex Arm with the clip base and slide it into the base and lock it down by tightening the knob. This mount serves as a great alternative to a traditional suction cup. It provides a more secure, semi-permanent installation while taking up less space with its smaller footprint. The base measures less than 2 inches square, much less than the three inch suction cup base or the double or triple suction cup mounts used by some pilots. To remove, simply slide a metal ruler into the slots on the base and twist it off or unscrew it. **PLEASE NOTE** This is just one extra screw in base for the Sport Mount - Flex Clip. The mounting arm and all device holders are sold separately.

Features

• Sport Mount - Flex Clip can be installed by any pilot in any aircraft
• Attach with screws to an existing AMPs pattern or attach using the semi-permanent adhesive petal base
• Ball and socket ends and a ratcheting center provide infinite adjustment to height and position
• Vibration minimized. All parts and ball joints made of aluminum and stainless steel, not plastic or rubber
• Mount can be carried on and carried off by the pilot with just the base being left in the plane Rotate device between landscape and portrait positions in-flight when mounted
• Flexible arm with a clip that slides & locks into a small footprint base measuring only 1 7/8" x 1 9/16"
• Will not release unless unlocked. No suction cups used that can detach due to changes in temperature or pressure

Specifications

• Dimensions:1 1/2" x 1 3/4"
• Weight:1 Oz.
• Materials:Aluminum

Position

• Securely mount the clip mount bracket in the desired location using four screws (not included) or by using the adhesive petal base
• Slide arm with clip base onto the bracket. Tighten green knob on bracket to lock in place
• Attach the Sport Case, Universal Cradle, or other device holder (All Sold Separately) with device to the Sport Adapter
• Loosen the control knob, position the device
• Fine tune device positioning, tighten control knob

Construction

• The arm is comprised of three independent joints, all adjustable and lockable from a single, centrally located, control knob
• The control knob joint is adjustable to 360° and the two end joints are mini-ball heads that are adjustable to 105°.
• The control knob allows partial loosening for safe and precise device positioning
• No longer limited to fixed length, limited rotation RAM arms
• Takes all of the guess work out of mount size selection and problems of imprecise positioning
• The mount is portable and can easily fit in your flight bag or can be positioned and left on-board. Perfect for owners and renters alike.
