Home / Rotax Engines & Parts / Parts / Two Stroke Parts / 582UL /Rotax 582/90 Ul Engine Crankcase Rotary Valve Drive Water Pump Parts
Main Image

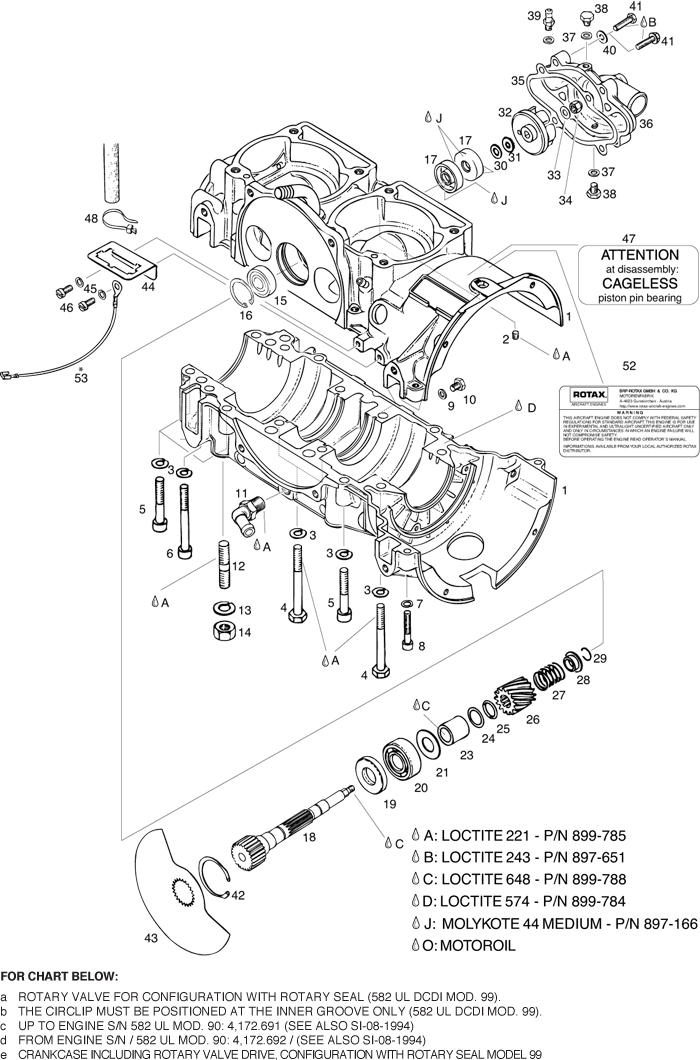

Rotax 582/90 Ul Engine Crankcase Rotary Valve Drive Water Pump Parts

1 Review 0 Answered Questions
From $0.35 to $54.95
Prices below incude GST
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Status Part Number Description Qty Part Number Price Buy
2940-900SCREW M5X6
15-03235
$1.21
Quantity
5841-561ALLEN SCREW M8X456
15-01192
$0.63
Quantity
8241-811ALLEN SCREW M6X35 DIN 9122
15-00187
$1.34
Quantity
10240-771HEX.SCREW M6X101
15-00153
$0.39
Quantity
15932-797B. BEARING 6201-Z, 12-32-101
15-03074
$19.91
Quantity
16245-420RETAINING RING 32X1,21
15-00235
$1.40
Quantity
19930-580OIL SEAL 20X40X71
15-03040
$18.58
Quantity
21827-510SHIM 15,3/32,5/0,51
15-00847
$1.17
Quantity
21227-439SHIM 17,2/32,5/1,5
15-00043
$3.03
Quantity
23847-280SPACER 15,2/22/24,51
15-01323
$10.23
Quantity
23847-282SPACER
15-01324
$10.64
Quantity
24927-440SHIM 15,1/22,5/0,51
15-02993
$1.32
Quantity
28827-430SPRING HOLDING CUP1
15-00842
$8.58
Quantity
30227-945THRUST WASHER 8,1/15/0,51
15-00052
$1.32
Quantity
31227-155FRICTION WASHER1
15-00041
$7.10
Quantity
38841-580HEX. SCREW M6X82
15-01194
$0.39
Quantity
41841-540TAPTITE-SCREW M6X254c
15-01190
$1.17
Quantity
41240-036HEX. SCREW M6X25 DIN 9334d
15-00113
$0.58
Quantity
41240-031HEX. SCREW M6X254
15-00111
$1.21
Quantity
42945-880RETAINING RING 40X1,751
15-03377
$2.19
Quantity
44853-322RECEPTACLE1
15-01600
$17.99
Quantity
45945-750LOCK WASHER A52
07-00435
$2.05
Quantity
48866-710CLAMP 142X2,5 MM 1
15-01869
$0.87
Quantity
50851-113CLUMP 18/M5
15-01510
$8.45
Quantity
51650-370ROTARY SEAL
15-00674
$60.45
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Rotax 582/90 UL Engine Crankcase, rotary valve drive, water pump parts.

Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653
