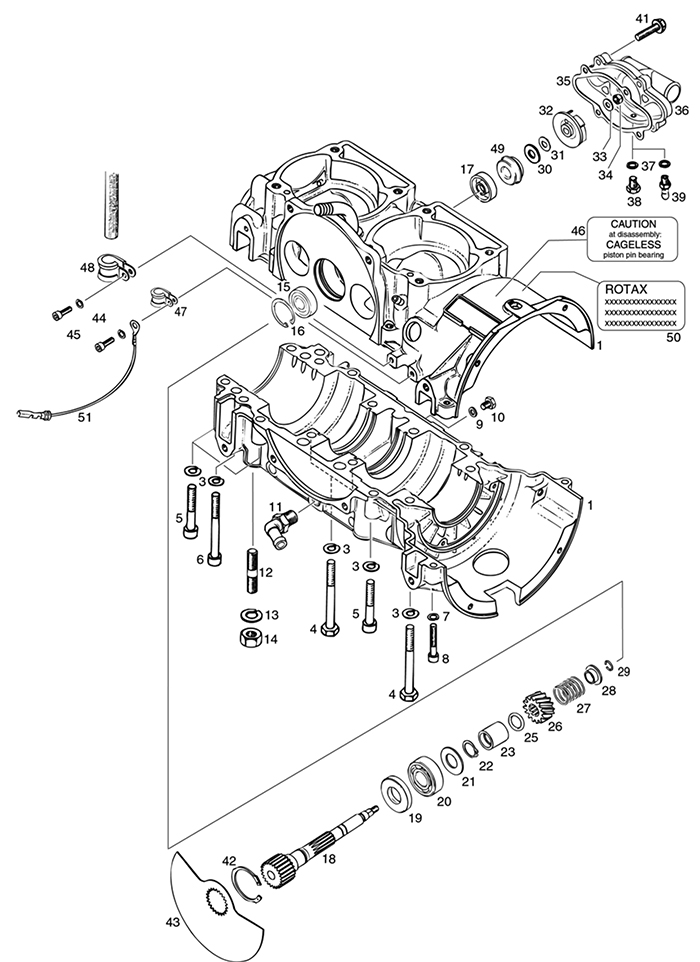

(Hover to zoom | Use mouse wheel for +/-)
No. | Rotax Number | Description | Qty Req Mod. 99 | Qty Req Mod. 17 | Part Number | Price | Buy |
---|---|---|---|---|---|---|---|
5 | 841-562 | ALLEN SCREW M8x45 | 6 | 6 | 15-10139 | $5.88 | |
8 | 241-811 | ALLEN SCREW M6X35 DIN 912 | 2 | 2 | 15-00187 | $1.34 | |
10 | 240-772 | HEX. SCREW M6x10 | 1 | 1 | 15-09740 | $1.73 | |
15 | 932-797 | B. BEARING 6201-Z, 12-32-10 | 1 | 1 | 15-03074 | $19.91 | |
16 | 245-420 | RETAINING RING 32X1,2 | 1 | 1 | 15-00235 | $1.40 | |
19 | 930-580 | OIL SEAL 20X40X7 | 1 | 1 | 15-03040 | $18.58 | |
21 | 227-439 | SHIM 17,2/32,5/1,5 | 1 | 1 | 15-00043 | $3.03 | |
22 | 845-450 | RETAINING RING 17x1 | 1 | 1 | 15-01309 | $0.83 | |
23 | 847-282 | SPACER | 1 | 1 | 15-01324 | $10.64 | |
24 | 927-440 | SHIM 15,1/22,5/0,5 | x | x | 15-02993 | $1.32 | |
25 | 831-500 | O-RING 14-3 | 1 | 1 | 15-00919 | $3.32 | |
28 | 827-430 | SPRING HOLDING CUP | 1 | 1 | 15-00842 | $8.58 | |
30 | 227-945 | THRUST WASHER 8,1/15/0,5 | 1 | 1 | 15-00052 | $1.32 | |
31 | 227-155 | FRICTION WASHER | 1 | 1 | 15-00041 | $7.10 | |
38 | 841-580 | HEX. SCREW M6X8 | 2 | 1 | 15-01194 | $0.39 | |
42 | 945-880 | RETAINING RING 40X1,75 | 1 | 1 | 15-03377 | $2.19 | |
44 | 945-750 | LOCK WASHER A5 | 2 | 2 | 07-00435 | $2.05 | |
48 | 851-113 | CLUMP 18/M5 | 1 | 15-01510 | $8.45 | ||
49 | 650-370 | ROTARY SEAL | 1 | 15-00674 | $36.14 |
- Items not illustrated
Explanations of symbols and statements in part number charts:
|
good
Bing Lock Washer A5 With Screw Only 5M 140-566-04
