Home / Rotax Engines & Parts / Parts / Two Stroke Parts / 503UL /Rotax 503 Ul Electronic Boxes And Supporting Plate For Configuration: Free Air-Cooled Parts
Main Image

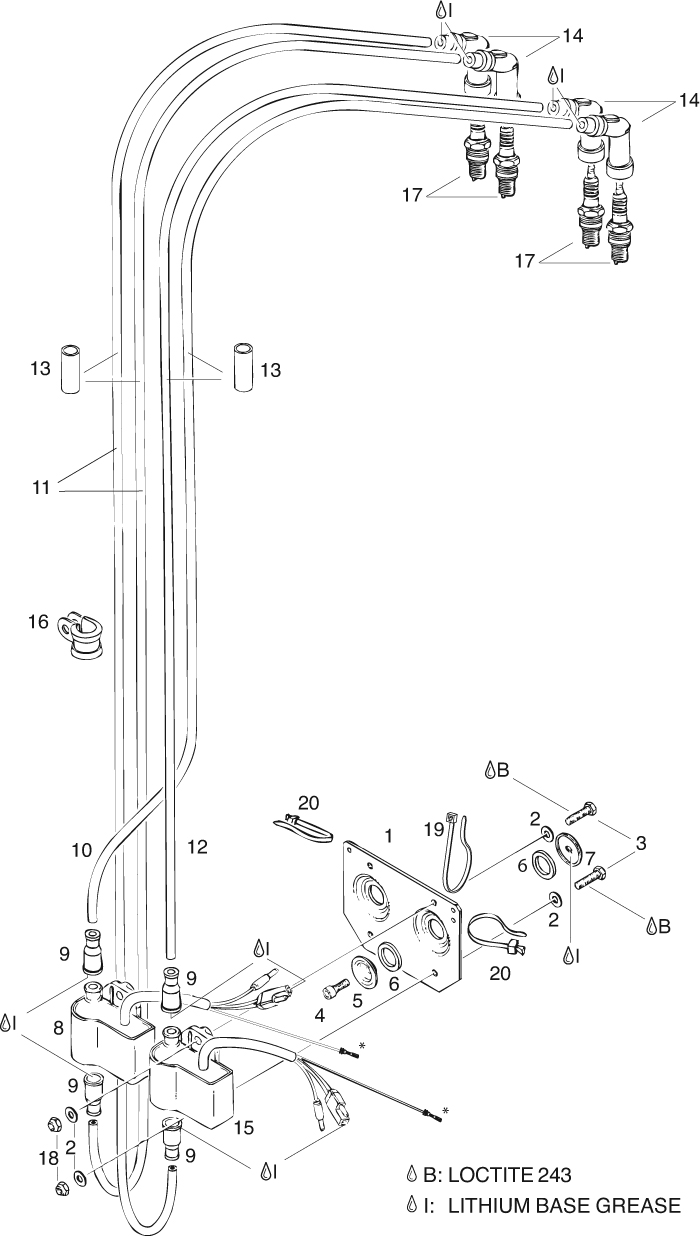

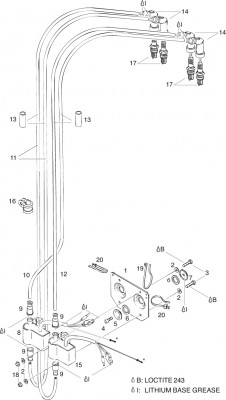

Rotax 503 Ul Electronic Boxes And Supporting Plate For Configuration: Free Air-Cooled Parts

7 Reviews 1 Answered Question
From $0.42 to $8.47
Prices below incude GST
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty PN Price Buy
3240-036HEX. SCREW M6X25 DIN 9334
15-00113
$0.58
Quantity
4241-236ALLEN SCREW M6X162
15-00169
$0.46
Quantity
5827-815DISTANCE CAP2
15-00861
$7.10
Quantity
7944-090SHIM 6,052
15-03312
$7.21
Quantity
13830-962PROTECTION HOSE 12X16X404
15-00909
$3.19
Quantity
16851-100CABLE CLAMP 181
15-01507
$9.32
Quantity
17897-055SPARK PLUG 14 MM, NGK BR 8 ES4
08-00736
$4.02
Quantity
19251-920CLAMP 279X3,6 MM1
15-00268
$1.38
Quantity
20866-710CLAMP 142X2,5 MM2
15-01869
$0.87
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

965-153 SOLD IN METER LENGTHS. FOR CORRECT LENGTHS NEEDED, SEE DESCRIPTION OF INDIVIDUAL PARTS BELOW.

No.
Status
Part No.
 Descriptions
Qty.
10
965-153
 IGNITION CABLE 600MM
ARa
11
965-153
 IGNITION CABLES 875MM
ARa
12
965-153
 IGNITION CABLE 560MM
ARa
