No. | Status | Rotax Part Number | Description | Qty | PN | Price | Buy |
---|---|---|---|---|---|---|---|
4 | 841-306 | COLLAR HEX. SCREW M8X65 SW 11 | 2 | 15-01167 | $3.59 | ||
5 | 841-841 | ALLEN SCREW M8X65 DIN 912 | 2 | 15-01214 | $1.64 | ||
6 | 841-561 | COLLAR HEX. SCREW M8X65 SW 11 | 6 | 15-01192 | $0.63 | ||
10 | 240-771 | HEX.SCREW M6X10 | 1 | 15-00153 | $0.39 | ||
15 | 845-150 | RETAINING RING 30X1,2 | 1 | 15-01293 | $1.32 | ||
16 | 932-330 | BALL BEARING 16101-Z | 1 | 15-03064 | $31.64 | ||
17 | 850-975 | OIL SEAL A 12X30X7 NBR | 1 | 15-01493 | $23.16 | ||
19 | 930-580 | OIL SEAL 20X40X7 | 1 | 15-03040 | $18.58 | ||
21 | 227-439 | SHIM 17, 2/32, 5/1, 5 | 1 | 15-00043 | $3.03 | ||
22 | 845-450 | RETAINING RING 17X1 | 1 | 15-01309 | $0.83 | ||
23 | 847-282 | SPACER | 1 | 15-01324 | $10.64 | ||
24 | 831-500 | O-RING 14-3 | 1 | 15-00919 | $3.32 | ||
27 | 827-430 | SPRING HOLDING CUP | 1 | 15-00842 | $8.58 | ||
29 | 850-942 | ROTARY SEAL | 1 | 15-01487 | $67.10 | ||
30 | 430-800 | O-RING 8X2 | 2 | 15-00536 | $6.22 | ||
31 | 847-810 | ROTARY SEAL SLEEVE | 1 | 15-01382 | $16.38 | ||
33 | 227-155 | FRICTION WASHER | 1 | 15-00041 | $7.10 | ||
40 | 841-580 | HEX. SCREW M6X8 | 1 | 15-01194 | $0.39 | ||
43 | 240-036 | HEX. SCREW M6X25 DIN 933 | 4 | 15-00113 | $0.58 | ||
44 | 945-880 | RETAINING RING 40X1,75 | 1 | 15-03377 | $2.19 | ||
45 | N.A. | 924-507 | ROTARY VALVE 151 DEGR. | 1 | 15-02955 | $73.91 | |
46 | 851-250 | CABLE CLAMP 15/M5 | 1 | 15-01527 | $4.90 | ||
47 | 827-800 | WASHER A 5,5 DIN 6902 | 1 | 15-00860 | $0.30 | ||
48 | 945-750 | LOCK WASHER A5 | 1 | 07-00435 | $2.05 |

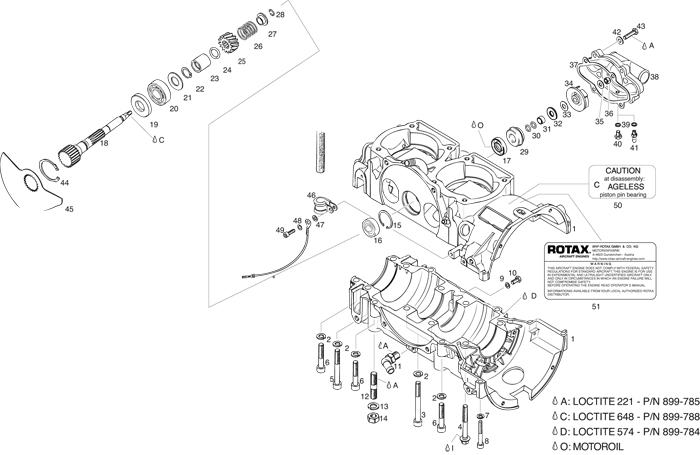

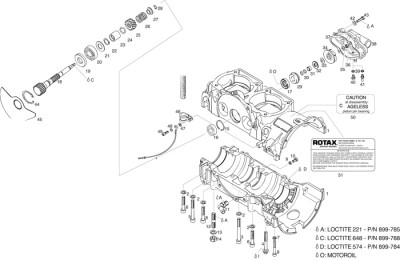

ROTAX 618 UL Engine Crankcase, rotary valve drive, water pump parts. Explanations of symbols and statements in part number charts:
|
