No. | Status | Rotax Part Number | Description | Qty | PN | Price | Buy |
---|---|---|---|---|---|---|---|
1 | 931-181 | DOUBLE GASKET 0,5 MM | 1 | 15-03048 | $23.11 | ||
5 | 850-560 | RUBBER GASKET | 1 | 15-01468 | $44.16 | ||
6 | N.A. | 841-881 | STUD M8X75 | 2 | 15-01220 | $18.15 | |
7 | 240-490 | STUD M8X84 | 10 | 15-00146 | $7.70 | ||
9 | 842-471 | COLLAR CAP NUT M8 | 12 | 15-01258 | $15.36 | ||
20 | 841-580 | HEX. SCREW M6X8 | 1 | 15-01194 | $0.39 | ||
22 | 242-031 | HEX.NUT BM6 | 2 | 15-00204 | $0.58 | ||
24 | N.A. | 854-058 | EXHAUST VALVE 76 MM | 2 | 15-01629 | $219.73 | |
25 | 230-260 | O-RING 6X3 | 2 | 15-00066 | $2.92 | ||
26 | 230-256 | GASKET | 2 | 15-00065 | $4.82 | ||
28 | 845-020 | SPRING WASHER B6 | 4 | 15-01286 | $0.30 | ||
29 | 241-236 | ALLEN SCREW M6X16 | 4 | 15-00169 | $0.46 | ||
30 | N.A. | 268-935 | PIPE BEND | 2 | 15-00401 | $34.65 | |
31 | 942-810 | HEX. SCREW M7X0,75 | 4 | 15-03304 | $1.40 | ||
33 | 241-440 | ADJUSTMENT SCREW M6X0,75 | 2 | 07-00406 | $6.49 | ||
35 | 866-710 | CLAMP 142X2,5 MM | 2 | 15-01869 | $0.87 | ||
37 | 239-043 | HOSE SPRING 134-2,3-0,4-0,0 | 2 | 15-00098 | $11.88 | ||
39 | N.A. | 239-995 | SPRING | 2 | 15-00110 | $10.84 | |
42 | N.A. | 210-335 | VALVE COVER | 2 | 15-00009 | $40.15 | |
43 | N.A. | 239-035 | SPRING CLIP | 2 | 15-00096 | $15.95 | |
46 | 851-129 | INTAKE SILENCER BR | 1 | 15-01520 | $28.21 |

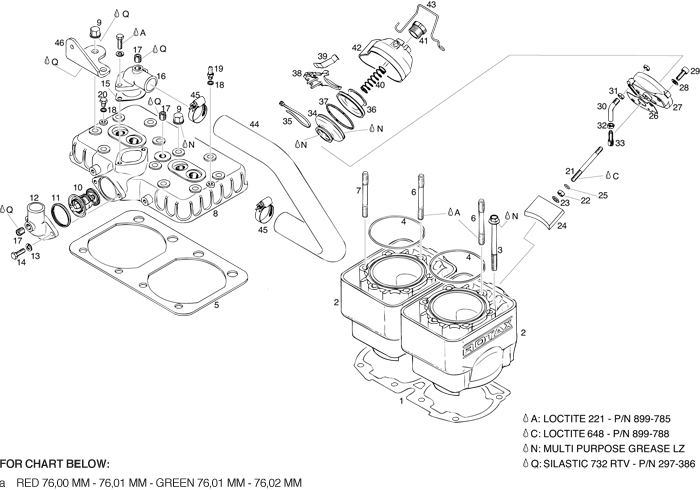

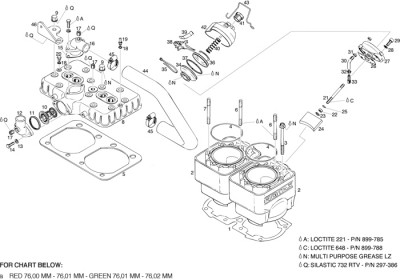

Rotax 618 ul engine cylinder, cylinder head, exhaust valve parts. Explanations of symbols and statements in part number charts:
|
