Home / Rotax Engines & Parts / Parts / Two Stroke Parts / Accessories / Starters /Rotax 503 | 582 Ul Engine Electric Starter-Single Parts Magneto - Side Parts
Main Image

Rotax 503 | 582 Ul Engine Electric Starter-Single Parts Magneto - Side Parts

0 Reviews 0 Answered Questions
From $0.27 to $298.95
Prices below incude GST

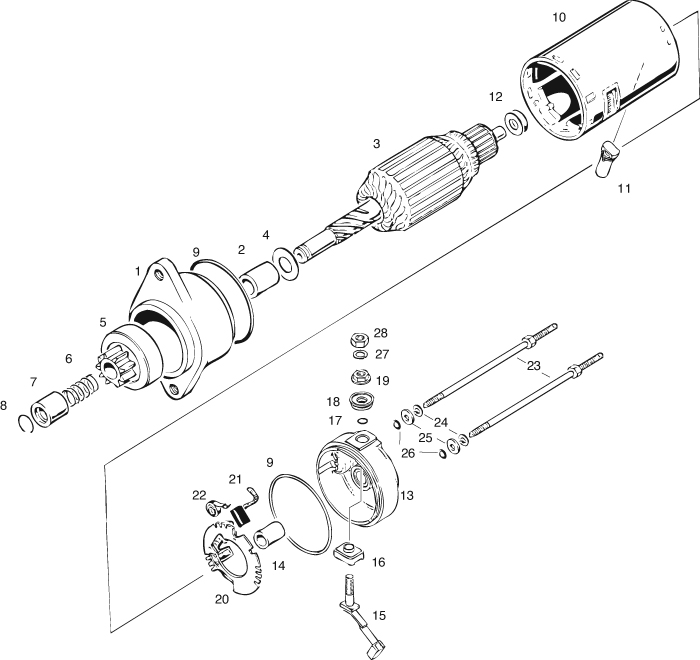

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty Req. PN Price Buy
1-2866-880DRIVE HOUSING ASSEMBLY1
15-01877
$192.67
Quantity
5866-850OVERRUNNING-CLUTCH DRIVE ASSEMBLY1
15-01874
$328.85
Quantity
7927-040STOP COLLAR1
15-02983
$27.66
Quantity
8845-360CIRCLIP1
15-01301
$3.14
Quantity
9850-500O-RING 62-1,52
15-01463
$8.20
Quantity
11860-600VENTING RUBBER1
15-01718
$7.87
Quantity
12827-600SHIMNB
15-00849
$3.38
Quantity
16260-820ISOLATING BUSHING1
15-00314
$6.99
Quantity
17230-530O-RING 6X1,71
15-00077
$2.04
Quantity
18260-800CONNECTOR SHEATH1
15-00312
$6.00
Quantity
19242-780COMBINED NUT M61
15-00224
$2.84
Quantity
23841-860SCREW M52
15-01217
$14.25
Quantity
25827-800WASHER A 5,5 DIN 69022
15-00860
$0.30
Quantity
26850-510O-RING 4,7 X 1,42
15-01464
$6.22
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   bushing, not available as spare part, use drive housing assembly 866-880.
  • b   end frame with sleeve, not available as spare part, use end frame assembly 866-900.
  • c   bushing, not available as spare part, use drive housing assembly 866-900.
  • d   brush, not available as spare part, use brush holder assembly. 866-890.
  • e   spring, not available as spare part, use brush holder assembly 866-890.


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
447
503
582
m90
582
m99
618
Price
2
BUSHING
1a
1a
1a
1a
1a
NLA
13
END FRAME WITH SLEEVE
1b
1b
1b
1b
1b
NLA
14
BUSHING
1c
1c
1c
1c
1c
NLA
