Home / Rotax Engines & Parts / Parts / 912/914 Series / Carburetors /Rotax 914 Ul Airbox Assembly | 3-Way Solenoid Valve Assembly | Fuel Pressure Regulator Assembly
Main Image

Rotax 914 Ul Airbox Assembly | 3-Way Solenoid Valve Assembly | Fuel Pressure Regulator Assembly

0 Reviews 0 Answered Questions
From $0.13 to $399.00
Prices below incude GST

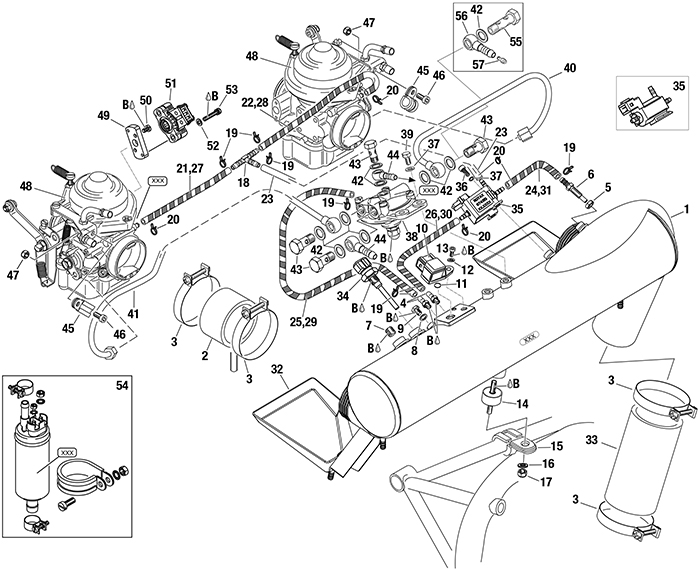

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty 914 UL Part Number Price Buy
6940-555 HOSE NIPPLE M61
15-03196
$51.81
Quantity
9641-071HEX.SCREW M6X6-8.81
15-00668
$0.98
Quantity
15853-010CABLE CLAMP 32/M61
15-01598
$8.20
Quantity
16927-941WASHER 6.0/12/13
15-02997
$0.47
Quantity
18874-270T-PEACE 6-6-62
15-01931
$7.00
Quantity
35874-3103-WAY SOLENOID VALVE ASSEMBLY 1l
15-01938
$438.90
Quantity
37945-831LOCK WASHER A64
15-09800
$0.25
Quantity
47842-030LOCK NUT M52
15-01239
$2.63
Quantity
52244-073WASHER 4.32f
15-00228
$0.14
Quantity
57963-143IDLE JET 351 (mo)
05-02019
$42.35
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   Marked with S/N.
  • b   Only for TCU part no. 966-470;
  • c   For cylinder 2/4
  • d   For cylinder 1/3
  • e   Used as water trap
  • f    Also included in carburetor for 914 CYLINDER 2/4.
  • g   Drip tray for airbox part no. 867-758, 667-162 and 667-167
  • h   For use of airbox part no. 667-162 See therefore SI-914-013 current issue
  • i    For use of airbox part no. 667-167 See therefore SI-914-015 current issue
  • j    For use of airbox part no. 867-753
  • k   New adapter flange use only together with throttle valve position sensor. See therefore SI-25-1997
  • l    See Service Instruction SI-914-022 current issue
  • m  Optional for fuel pressure gauge connection
  • n   Not for TCU - part no. 966-470
  • 0   Press into part at pos. 56.


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
914 UL
Price
1
AIRBOX
1
*
10
xxx-xxx
 SEE CHAPT. 76-10-00
1
-
17
842-040
 LOCK NUT M6
1
*
21
IN A ROLL, HOSE 270 MM
1hi
*
22
IN A ROLL, HOSE 310 MM
2j
*
22
IN A ROLL, HOSE 235 MM
1hi
*
23
IN A ROLL, HOSE 110 MM
1j
*
23
IN A ROLL, HOSE 40 MM
1hi
*
24
IN A ROLL, HOSE 130 MM
1hi
*
24
IN A ROLL, HOSE 145 MM
1i
*
25
IN A ROLL, HOSE 160 MM
1hi
*
26
IN A ROLL, HOSE 130 MM
1j
*
26
IN A ROLL, HOSE 190 MM
1hi
*
30
IN A ROLL SPIRAL HOSE, 165 MM
1hi
*
31
IN A ROLL SPIRAL HOSE, 125 MM
1hi
*
36
840-391
ALLEN SCREW M6X14
2
$0.00
48
xxx-xxx
 SEE CHAPT. 73-00-00 FIG. 1
2
*
56
956-314 HOSE NIPPLE 4/6
(1m)
$0.00
